- 8 -

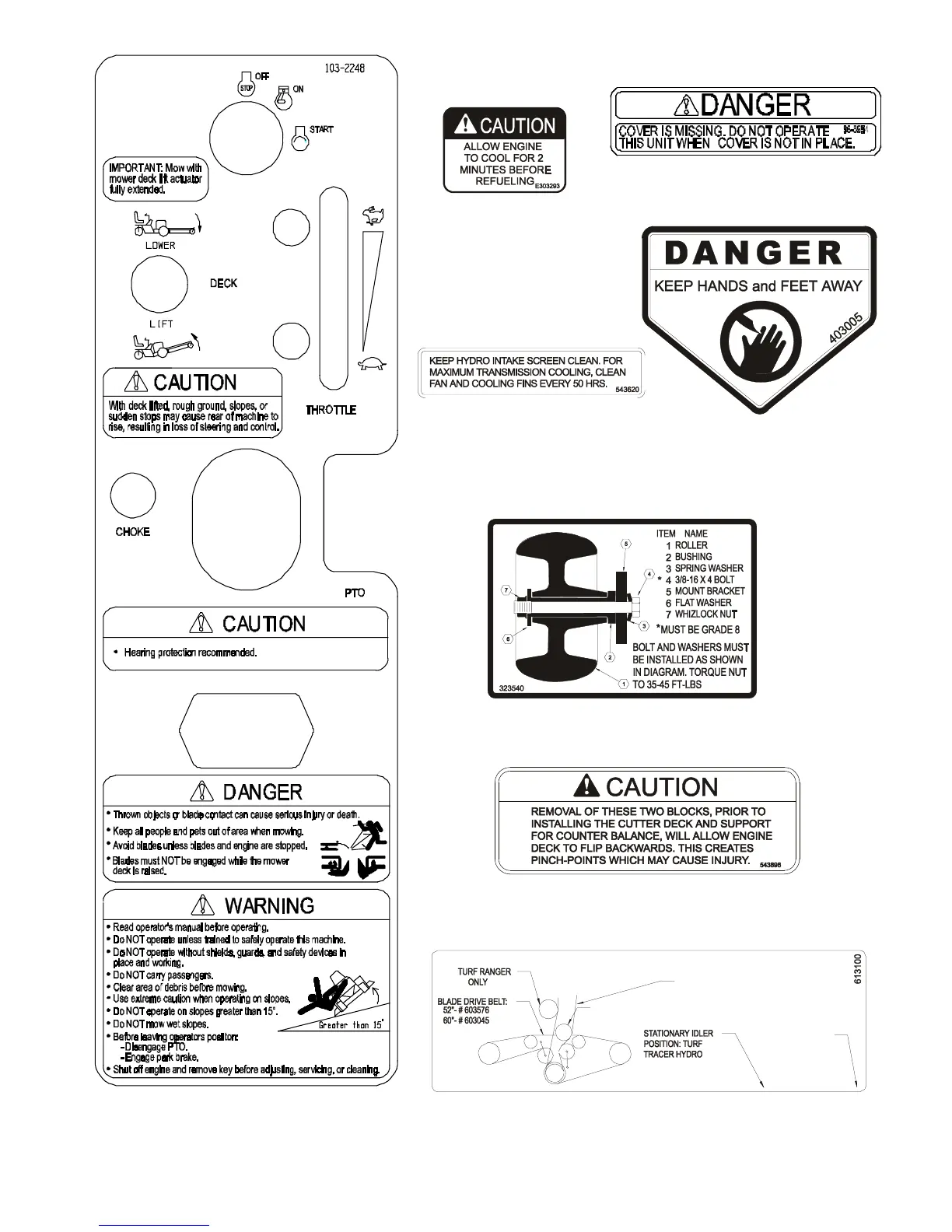

PART NO. 1-323540
LOCATION: Front of Mower Deck, Top Surface
PART NO. 103-2248
LOCATION: Steering Console
PART NO. 1-303293
LOCATION: Top Surface
of Fuel Tank
PART NO. 1-403005
LOCATION: LH & RH Front Top
Surface of Mower
Deck
PART NO. 1-543620
LOCATION: On Intake Screen
Below Fuel Tank
PART NO. 1-543896
LOCATION: Under Engine Deck on
Wood Blocks for Shipping
PART NO. 98-5954
LOCATION: Under Belt Shields
FMD523 & FMD603 units only
PART NO. 1-613100
LOCATION: Top of Mower Deck Beneath Center Shield
STATIONARY IDLER
POSITION: TURF
RANGER
BELT ROUTING
STATIONARY IDLER
DECK DRIVE BELT: TR-52"- # 543749
TR-60"- # 543523
TTH-52&60"- # 603306
