- 29 -
CAUTION
POTENTIAL HAZARD
♦ Raising the tractor frame for service or maintenance
relying solely on mechanical or hydraulic jacks could
be dangerous.
WHAT CAN HAPPEN
♦ The mechanical or hydraulic jacks may not be enough
support or may misfunction allowing the unit to fall,
which could cause injury.
HOW TO AVOID THE HAZARD
♦ DO NOT rely solely on mechanical or hydraulic jacks
for support. Use adequate jack stands or equivalent
support.
b) Remove the electrical connection from the parking brake safety switch
located on the right- hand underside at the front of the engine deck.
Temporarily install a jumper wire across the terminals in the connector of
the wiring harness.
c) Release brake lever.
d) The Neutral Centering Device is located on the right-hand underside of the
engine deck. Loosen jam nut (d) from the ball joint which connects the
override assembly (f), to the engine deck anchor mounting (See Figure 6).
e) Start engine. Operator must be in seat to crank engine. Open to full throttle.
f) Adjust neutral centering device length by rotating the neutral centering
device barrel clockwise or counterclockwise until wheels stop turning or no
longer creep. Tighten jam nut.
g) Remove jumper and reconnect electrical connection to parking brake
safety switch.
h) Check safety interlock system as outlined in Section 6.1.5.
IMPORTANT: Keep clear of wheels and other moving parts when making
these adjustments.

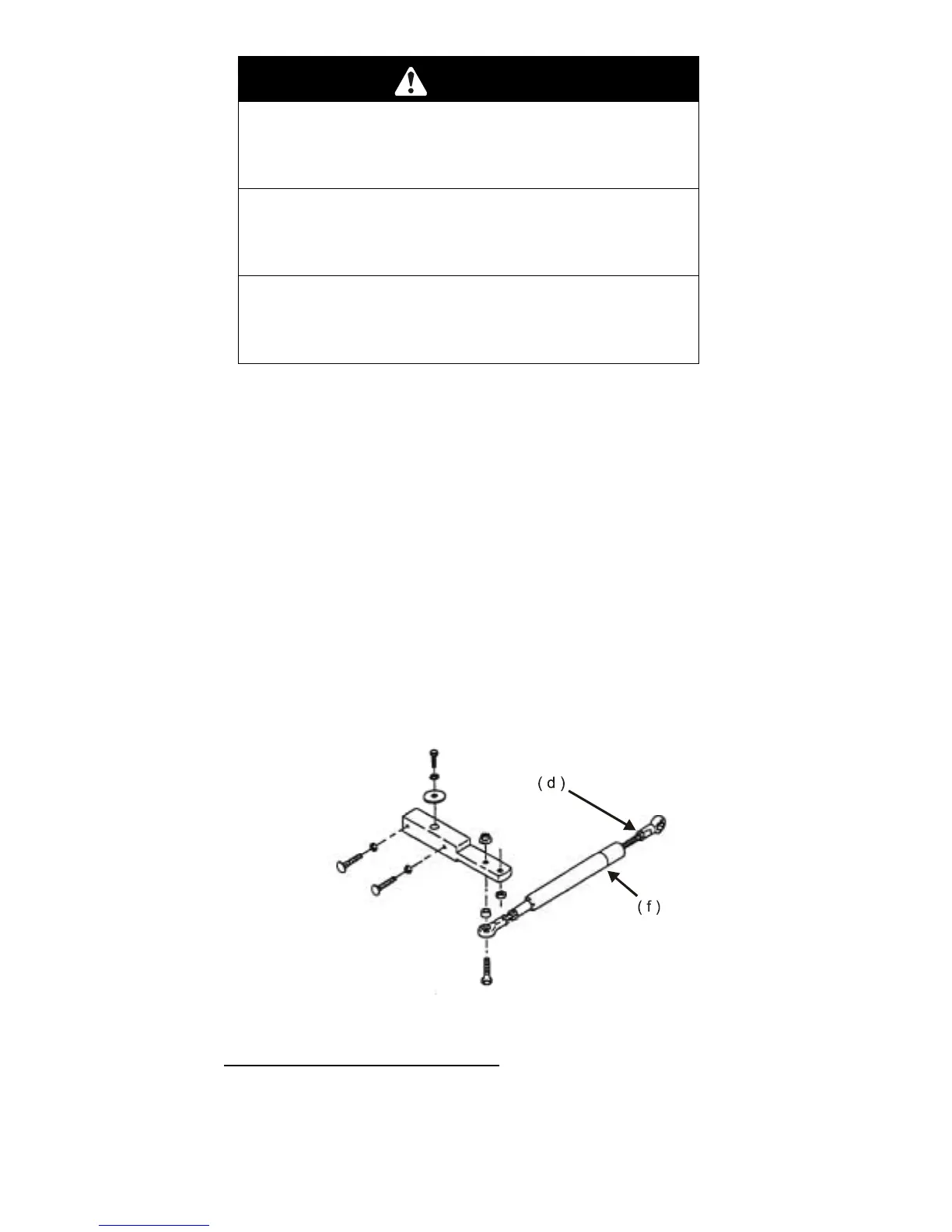

FIGURE 7
NEUTRAL CENTERING DEVICE ADJUSTMENT
6.2.6 Parking Brake Quadrant Adjustment
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Loosen the two 5/16 x 18 screws (a), that clamp the brake quadrant to the
engine deck.
c) Pull parking brake lever towards the operator to the brake “on” position (b).
To Next Page
