Exmark Turf tracer User Manual

- 8 -

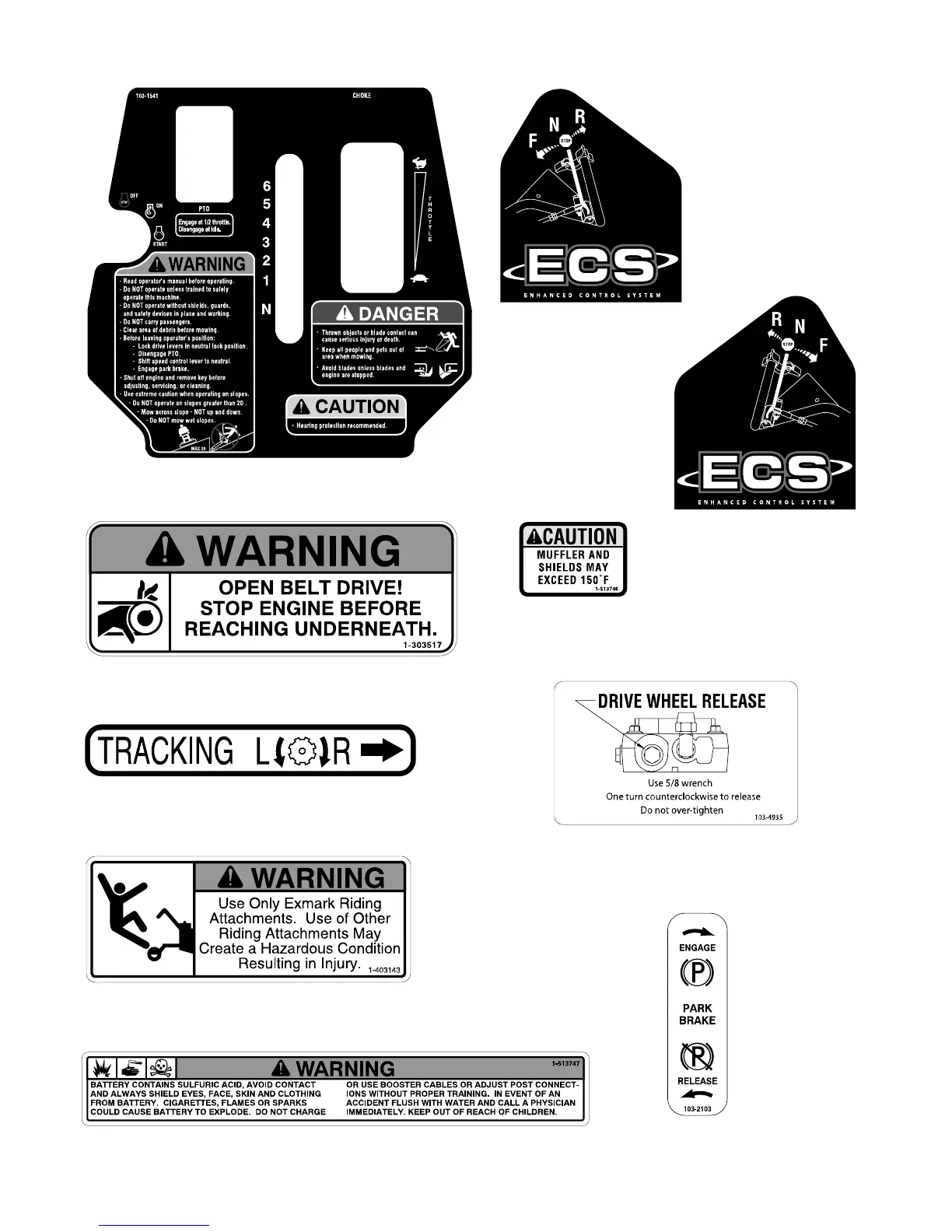

Turf Tracer Decals:
PART NO. 103-1541
LOCATION: Console
PART NO. 1-403143
LOCATION: RH Rear Surface of Engine Deck
PART NO. 1-303517
LOCATION: LH Side of Rear Surface of Engine Deck
PART NO. 1-513747
LOCATION: To
p
Rear of Batter
y
Cover
PART NO. 1-513746
LOCATION: Surface of Engine
Deck Next to Muffler
PART NO. 103-4935
LOCATION: Left Rear Top Corner
of Engine Deck
PART NO. 1-413214
LOCATION: Right Side of Hydro
Control Crank Arm
PART NO. 103-2242
LOCATION: LH Side of
Console
PART NO. 103-2243
LOCATION: RH Side of
Console
PART NO. 103-2432
LOCATION: Parkin
g
Brake Lever

Exmark Turf tracer Specifications

General

Engine Type	Gasoline
Deck Type	Fabricated
Engine Brand	Kohler
Deck Width	48 inches
Cutting Width	48 inches
Engine	Kohler
Turning Radius	Zero
Drive System	Hydro Drive
Transmission	Hydrostatic
