Exmark Turf tracer User Manual

- 9 -

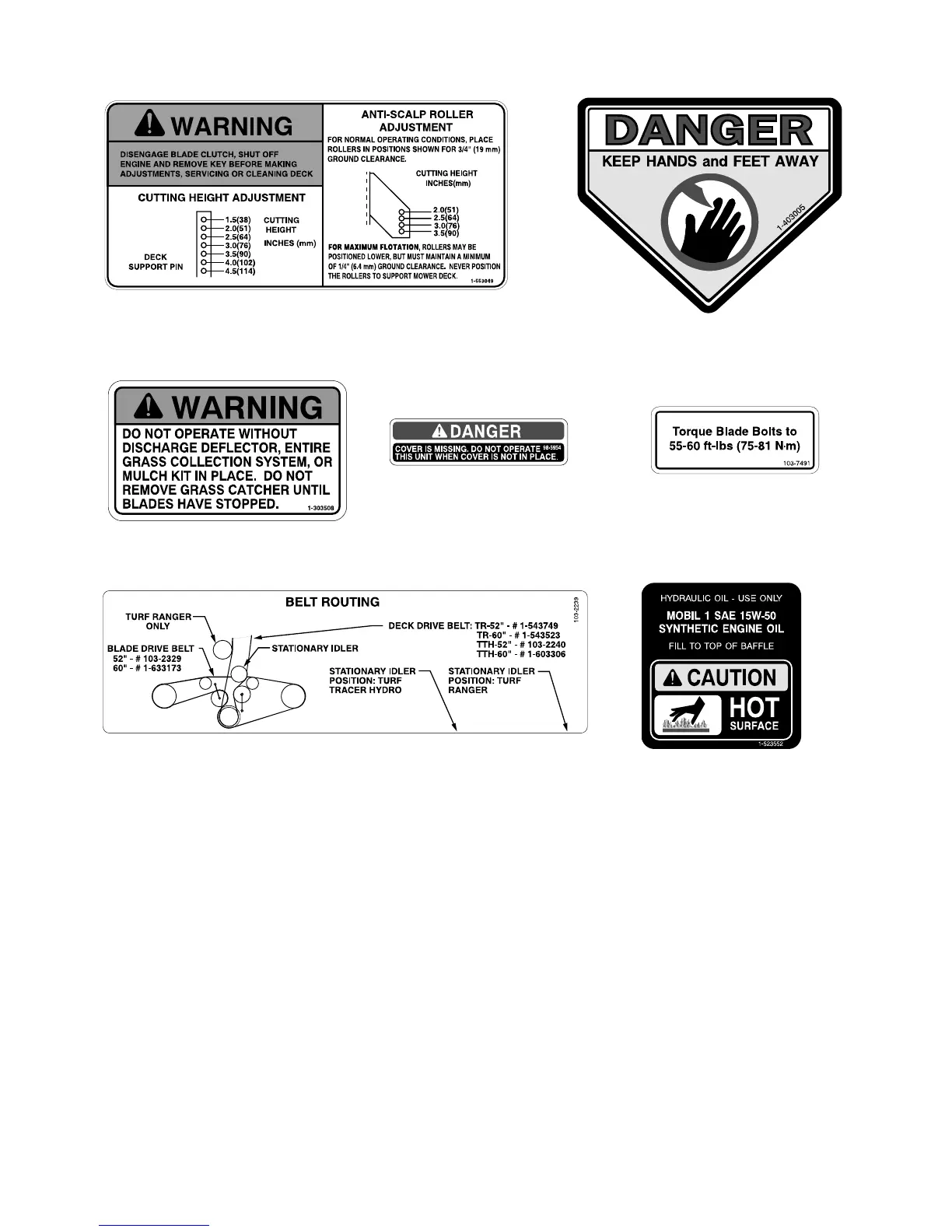

FMD524 and FMD604 Decals:
PART NO. 1-403005
LOCATION: LH & RH Front Top
Surface of Mower Deck
PART NO. 1-303508
LOCATION: On Top RH Surface
of Mower Deck
PART NO. 1-553049
LOCATION: On Top Front LH Surface of
Mower Deck
PART NO. 1-523552
LOCATION: On Top of
Hydraulic Tank
PART NO. 103-2239
LOCATION: Top of Mower Deck Beneath Center Shield
PART NO. 103-7491
LOCATION: On Top Front RH
Surface of Mower Deck
PART NO. 98-5954
LOCATION: Under LH, RH &
Center Belt Shields

Exmark Turf tracer Specifications

General

Engine Type	Gasoline
Deck Type	Fabricated
Engine Brand	Kohler
Deck Width	48 inches
Cutting Width	48 inches
Engine	Kohler
Turning Radius	Zero
Drive System	Hydro Drive
Transmission	Hydrostatic
