Exmark Ultra Vac - Drive Kit Assembly - Lazer Z HP 44,48,52; Adapter Kit 103-0328; Adapter Kit 103-1369

36

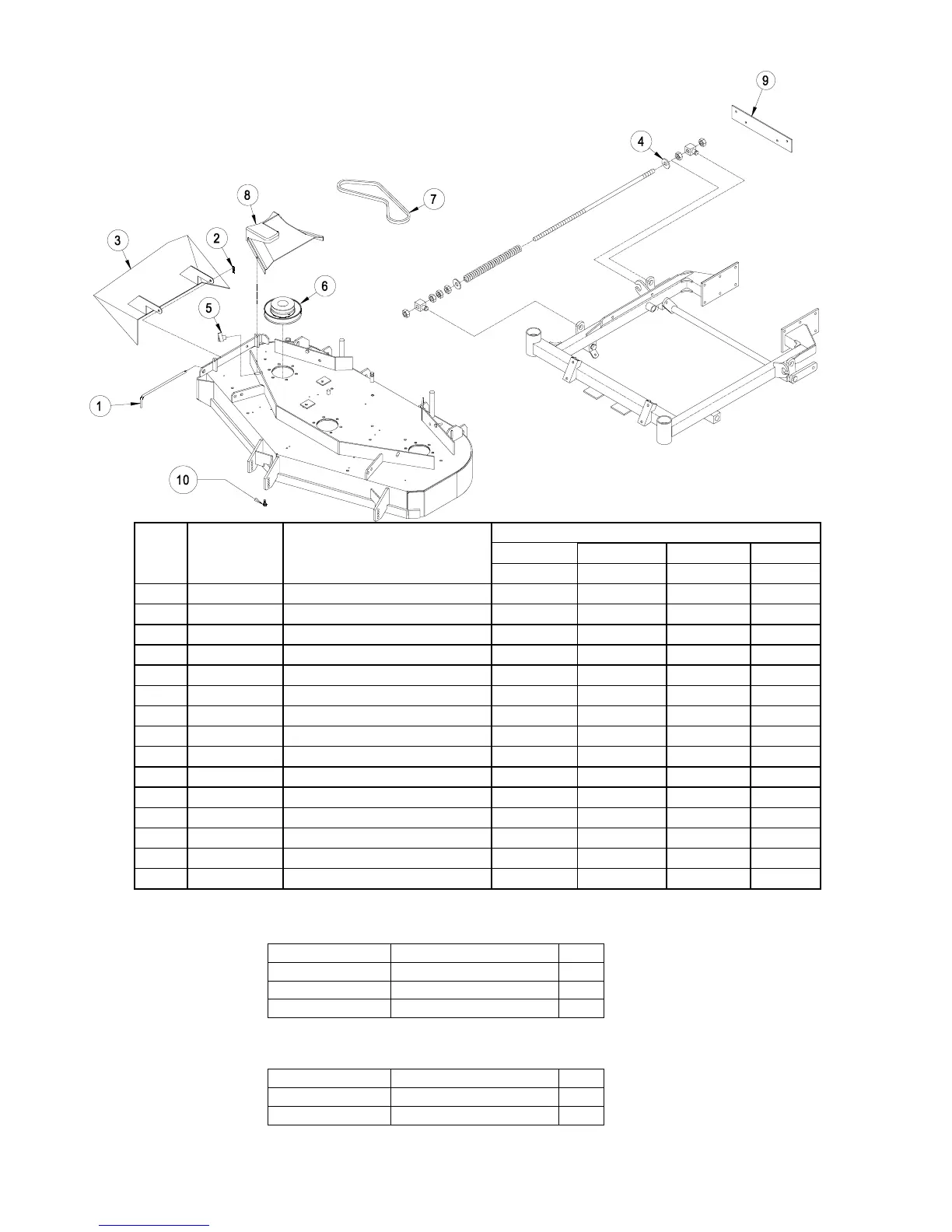

7.7 DRIVE KIT ASSMEBLY – LAZER Z HP 44,48
Quantity Included in Each Kit
44” 48” (w/4” tab) 48” (w/2” tab) 52”
Ref.
No.
Part No. Description
103-1315 103-1313 103-1314 103-1317
1 1-653363 Pin, Chute Pivot 1 1 1 1
2 1-806003 Pin, Hair 1 1 1 1
3 1-402106 Wld, Chute 48" SD 1
4 1-805517 2.25 O.D. Washer 1
5 1-323385 Knob, Belt Shield 2 2 2 2
6 1-653439 Sheave, Blower drive (52") 1
1-653362 Sheave, Blower Drive (48") 1 1
1-653309 Sheave, Blower Drive (44") 1
7 1-653438 Belt, Blower (52") 1
1-653333 Belt, Blower (48") 1 1
1-653332 Belt, Blower (44") 1
8 103-1316 Cover, Belt (44" and 48") 1 1 1
103-1318 Cover, Belt (52") 1
9 1-653532-03 Spacer, Counterweight 1
10 322-2 5/16-18x.62 Hex Head Screw 1 1 1 1
7.8 ADAPTER KIT 103-0328 For Lazer HP model LHP4818KC before serial number 176621.
Part No. Description Qty
103-0325-03 Tube, Spacer 2
1-653540 Tube, Upper 1
322-12 5/16-18x2.50 Screw 8
7.9 ADAPTER KIT 103-1369 For 52” Lazer Z models before serial number 260,000.
Part No. Description Qty
1-652375-01 Discharge Chute 1
1-805517 2.25 OD Washer 1
