Installation of chain

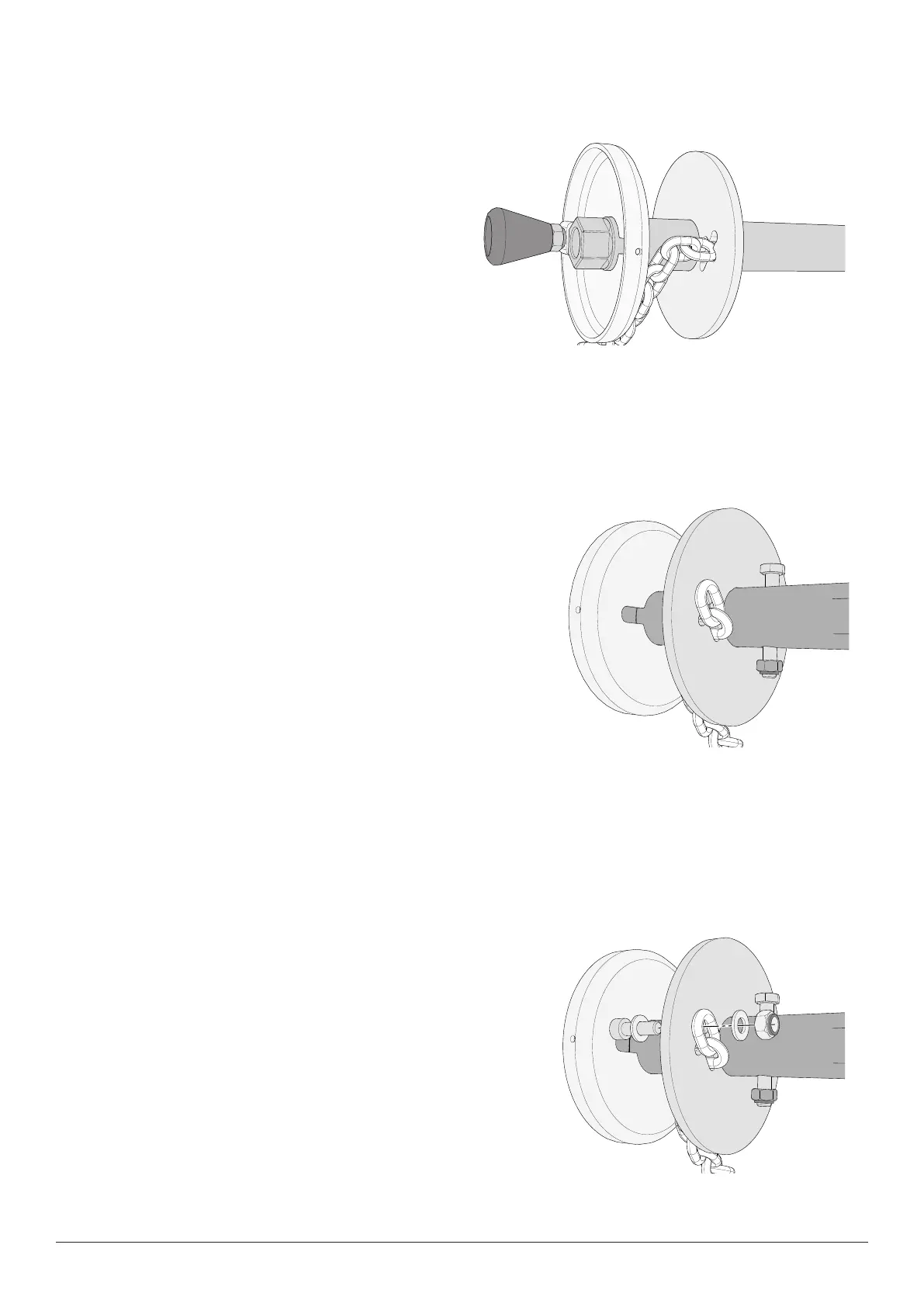

Installation of short-link 6mm chain on drum.
1. Run the chain's two outermost links
through the drum's cross-shaped hole.
INSTALLATION
2. Turn the outermost link so it is at against
the drum, with one round of the link centred
over an appropriate corner of the hole.
3. Install with the supplied bolts, washers
and nuts through hole and link.
Tighten with a torque wrench.
Tightening torque 25 Nm.
