17

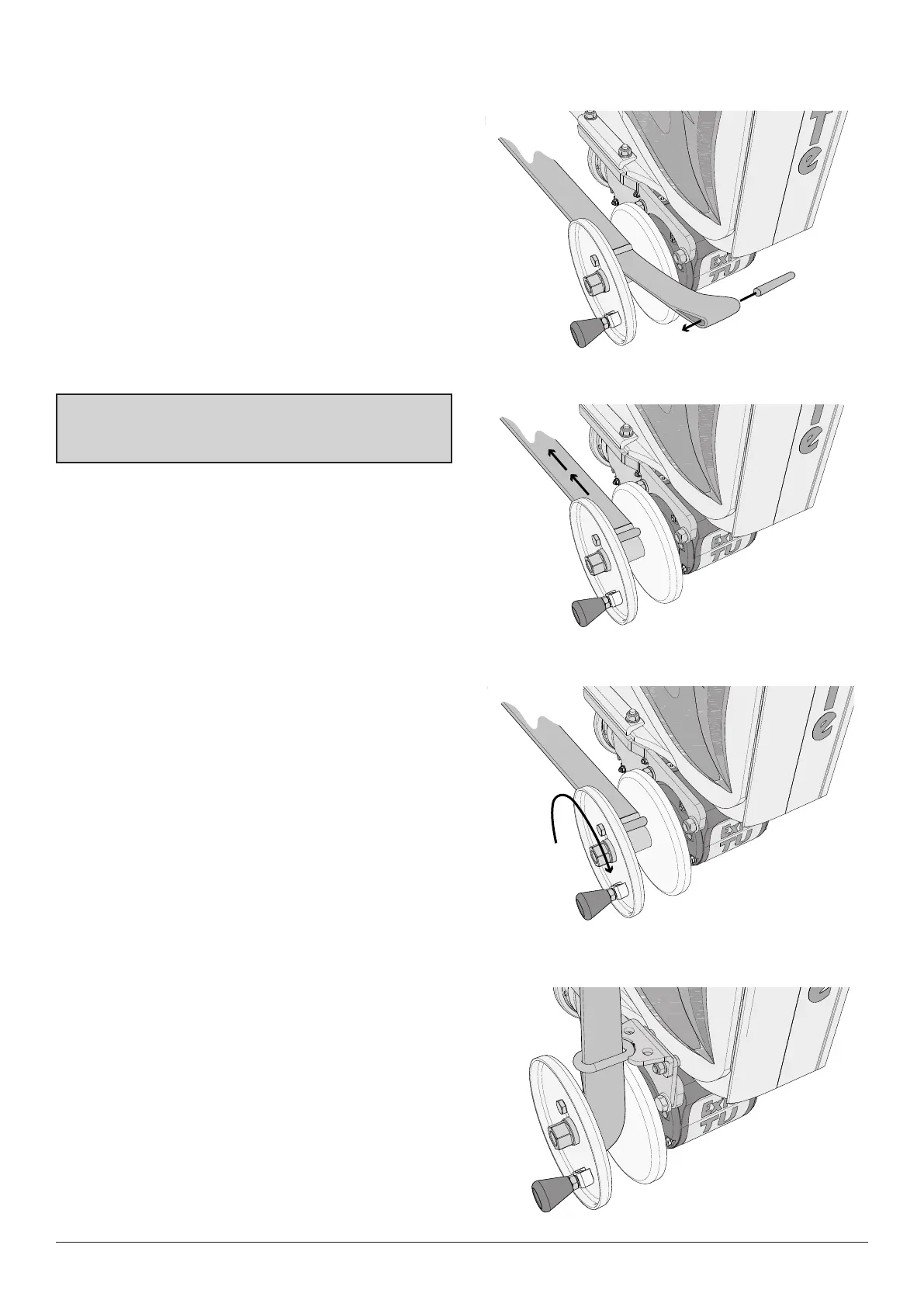

Installation of strap
In this example, a 50 mm strap is being tted on
a large drum. Fitting of other straps is done in a
similar way.
1. Insert the strap between the shaft and
the stop bolt. If the stop bolt is loose,
tighten it with a torque wrench.
Tightening torque 50 Nm.
2. Place the locking pin in the strap loop.
m Note!
If the tensioner is equipped with strap guide, start
by pulling the strap through this.
3. Pull the strap back until it stops
the against the locking bolt.
4. Manually roll up all the strap on the drum
using the turning handle on the drum.
5. Secure the loose end of the strap in
the strap guide or, if there isn’t one,
in the vehicle's existing devices.
