TEST PARAMETER SETUP PROCEDURES
28
Designation Agency Specification Application
A
UL544 Non Patient equipment Medical Equipment
B
UL 544 Patient care
equipment
Medical Equipment
C
IEC601-1
、
UL2601
、
EN60601-1
Medical Equipment
D
UL 1563 Electric Spas,
Equipment Assemblies and
Associated Equipment
E
IEC 1010, UL 3101.
IEC 950, UL 1950, EN 60950
Laboratory Equipment.
Information Technology.

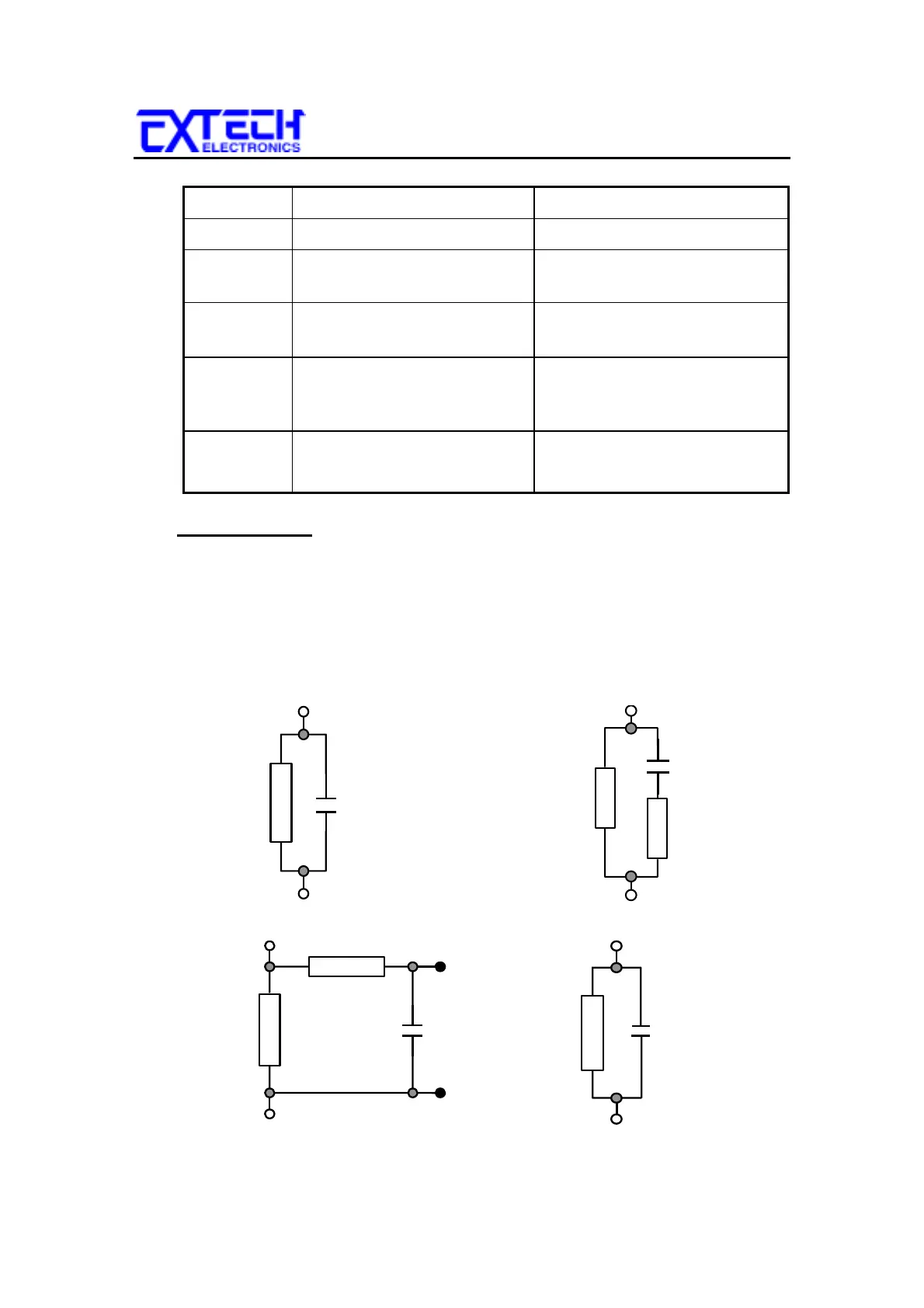

Circuit Diagrams
The following diagrams show the equivalent circuit of the measuring devices.
Leakage current readings are generated by measuring the voltage drop across these
networks and dividing by the equivalent DC resistance. The volt meter is placed
across the entire network of measuring device A, B and D, but is placed across the
points indicated by the solid black dots on measuring device C and E, as specified
in the agency specifications that apply to the particular measuring device.
MD =A
1.5K
0.15uF
MD = B
0.15
F
10.2
Ω
1K
Ω
MD = C
1K
0.015uF
10K
MD = D
500
Ω
0.45
F
To Next Page
