Extech Instruments 382100 - Current Transformer Setup

19 382100-en-US_V2.8 02/22
4.5.7 Current Transformer (CT) Setup
1. Press SHIFT once, and the symbol " SHIFT1 " will switch off; press ▲ or ▼ to adjust the
CT value (the range is 1 to 600) (default is 1:1)
2. Press SHIFT again to show symbol “SHIFT1”, then press ▼ to enter the next function (CT
→ BEEPER)

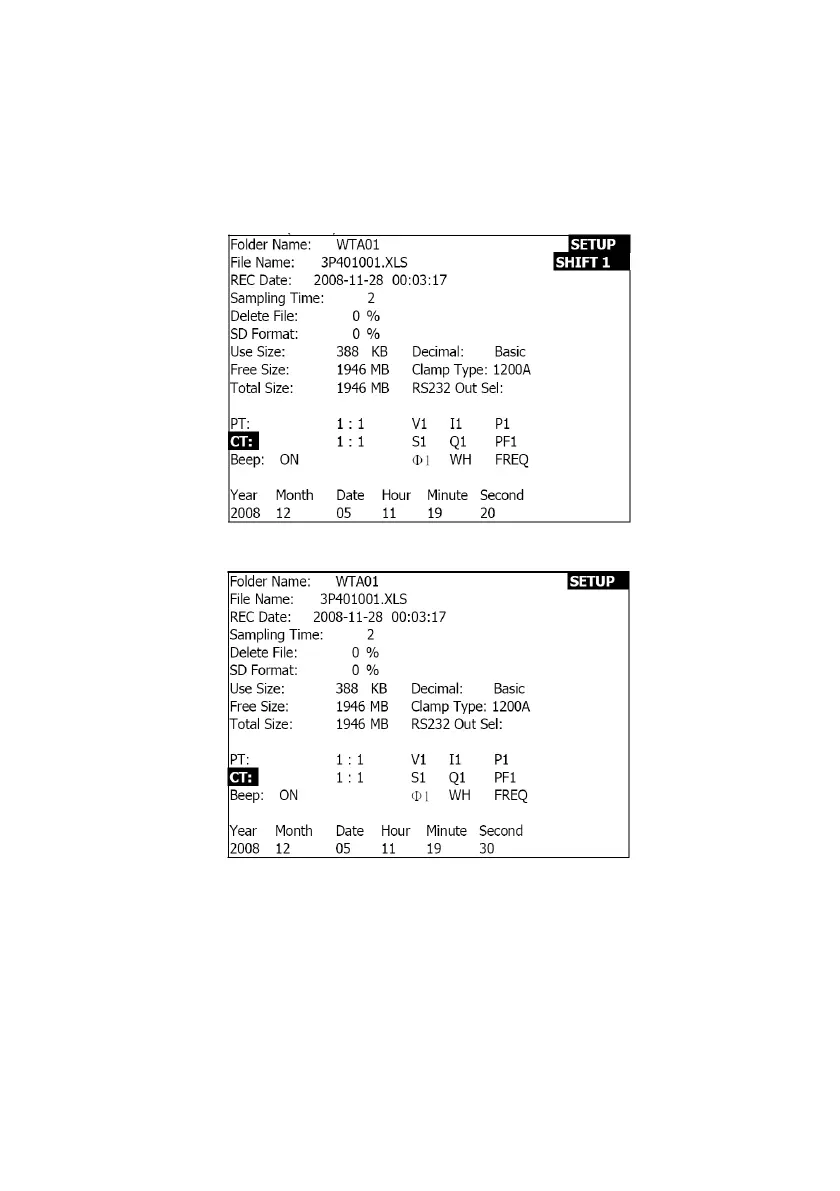

Figure 4-5-7a: CT Setup (Screen 1)
Figure 4-5-7b: CT Setup (Screen 2)
