27 382100-en-US_V2.8 02/22
5.3 3
Φ

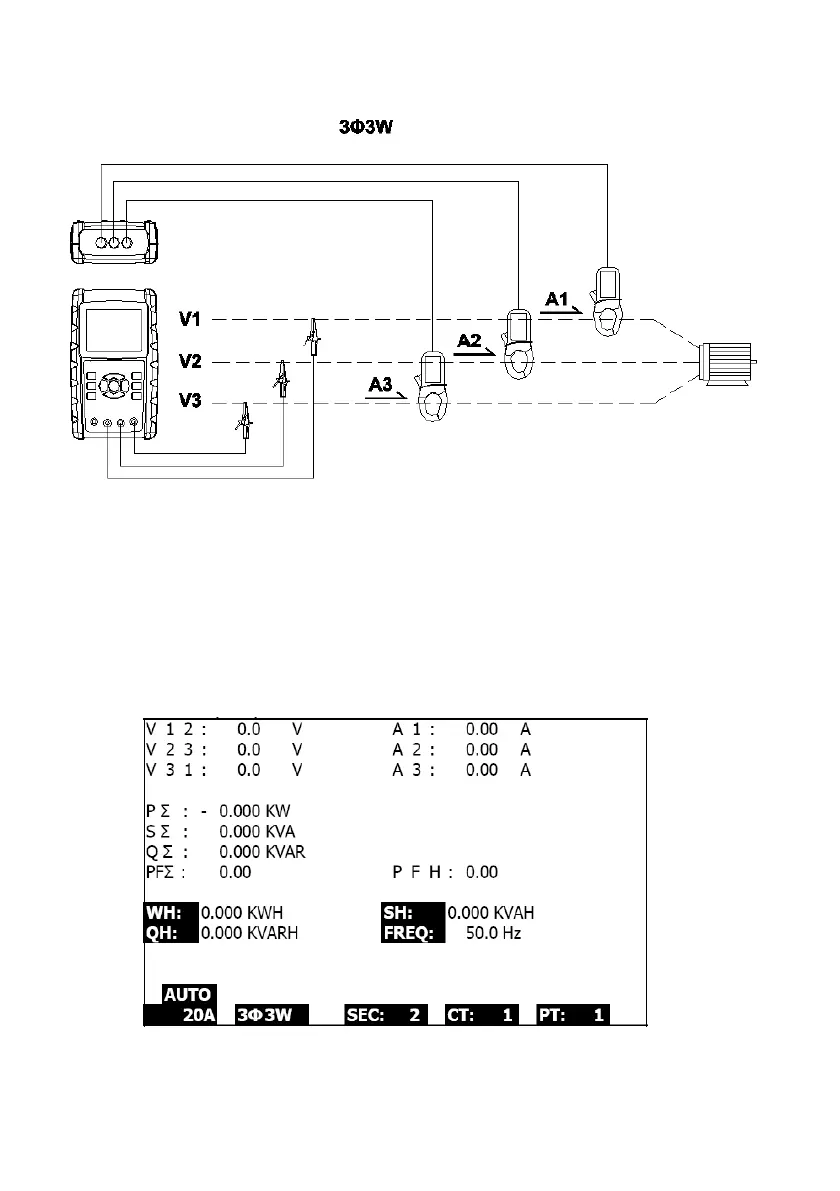

3W (three phase - three wire) Measurement
1. Power the instrument ON by pressing the POWER KEY, and then press 1Φ 3Φ KEY to
select 3Φ 3W, the selected configuration name will appear on bottom left hand side of the
display for screen 2.
2. Connect the line voltage L1, L2 and L3 to V1, V2 and V3 terminals of the instrument.
3. Connect the three (3) clamps (A1, A2, A3) to A1, A2 , A3
4. Connect the three (3) Clamps to the meter using the A1, A2, and A3 terminals
5. The related measurement factors will appear on the display
6. Measurement definitions can be found in Appendix 1 (5-11)
Fig. 5-3
To Next Page
