Extech Instruments HD450 User Manual

HD450-EU-EN V1.5 07/13
6
USB PC Interface
Description
The HD450 meter can be connected to a PC via its USB interface. A USB cable, along with
Windows
TM
software, is included with the meter. The software allows the user to:
 Transfer previously stored readings from the meter’s internal memory to a PC
 View, plot, analyze, store, and print readings data
 Remotely control the meter via virtual software buttons
 Record readings as they are taken. Subsequently, printing, storing, analyzing, etc. the
readings data
Meter to PC Connection
The supplied USB cable is used to connect the meter to a PC. Connect the smaller connector end
of the cable to the meter’s interface port (located under the tab at the left-hand side of the meter).
The larger connector end of the cable connects to a PC USB port.
Program Software

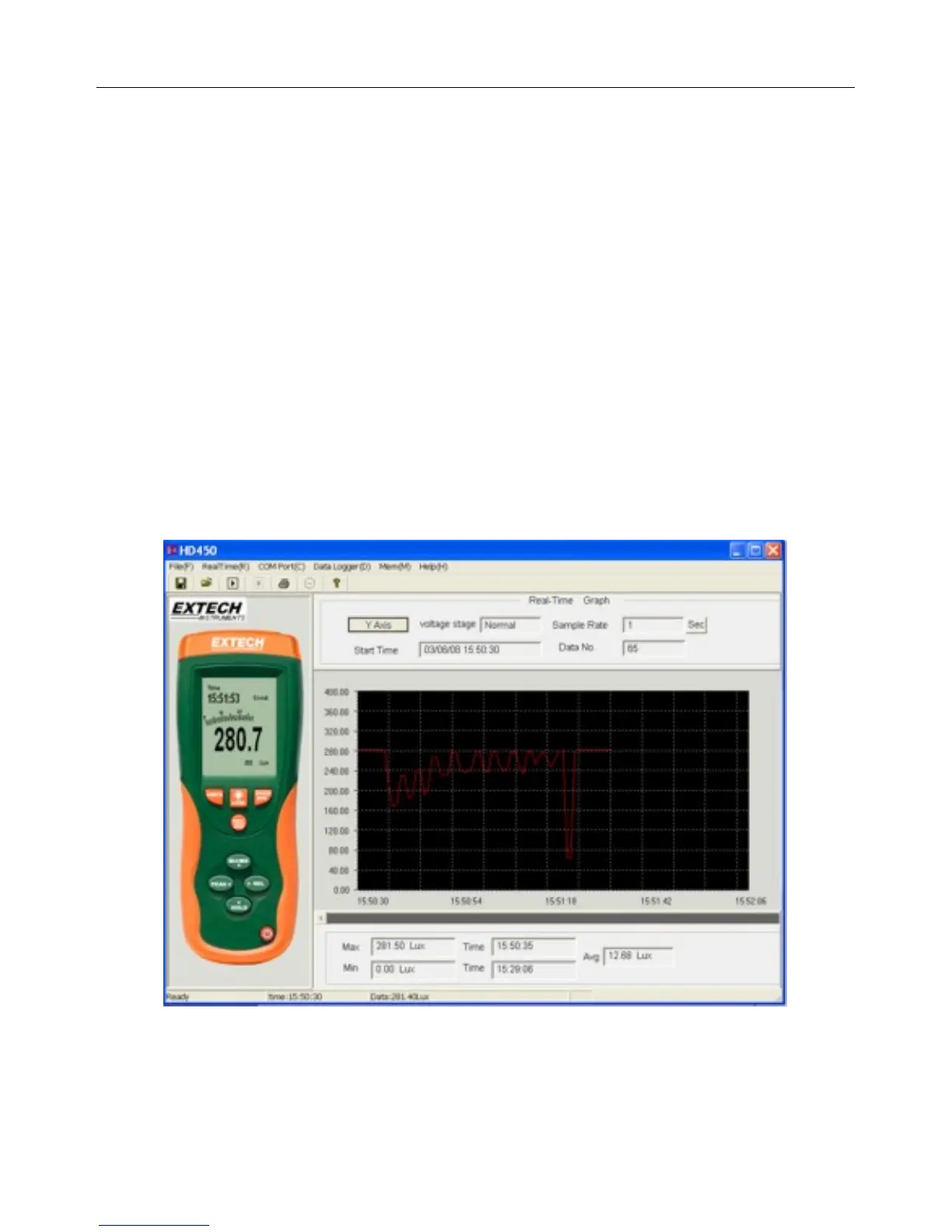

The supplied software allows the user to view readings in real-time on a PC. The readings can be
analyzed, zoomed, stored, and printed. Please refer to the HELP UTILITY available from inside the
software program for detailed software instructions. The main software screen is shown below for
preview.
