23
COMFORT MAXI INSTALLATION
Chapter 7
Adjust the height and angle of the hopper according to
the replace to be built
The bottom grill of the insert must stand
at least 1 cm above the marble re top of
the facing.

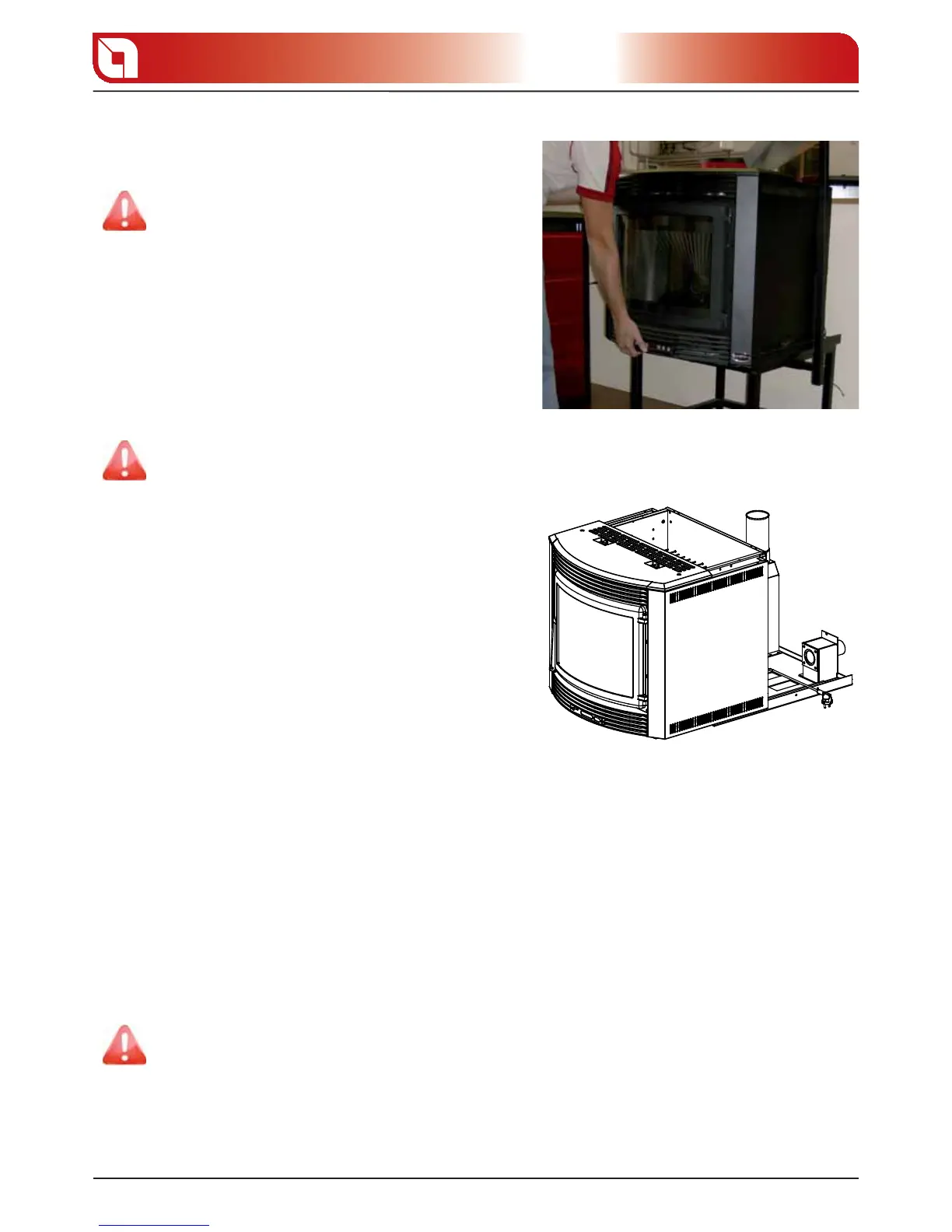

EXTRACTING THE INSERT
Maxi Comfort has to be extracted to carry out routine
maintenance (cleaning the ash pipe at the end of the
year) or special servicing (replacing mechanical parts in
the event of damage).
These operations must be carried out by
an authorized technician, with the stove
switched o and the plug disconnected.
To extract the insert, proceed as follows:
Insert the socket wrench provided on the screw at
bottom right.
Turn the wrench clockwise.
Using the pokers provided, pull the insert towards
you until it blocks automatically.
FITTING THE FRAMES
Front frame
Side frames
Attach the front frame to the two side frames.
Fix the frames to the insert using self-tapping screws
Any wooden beams situated above the insert must be protected using reproo ng
material.
Frame assembly is important, as it allows correct air circulation in the insert and
consequently the most e cient stove operation.
gure 7.7
gure 7.8
