4. Torque the M5 shoulder mounting screws to 25 in-lbs.
5. Remove the two locking screws on the accessory.

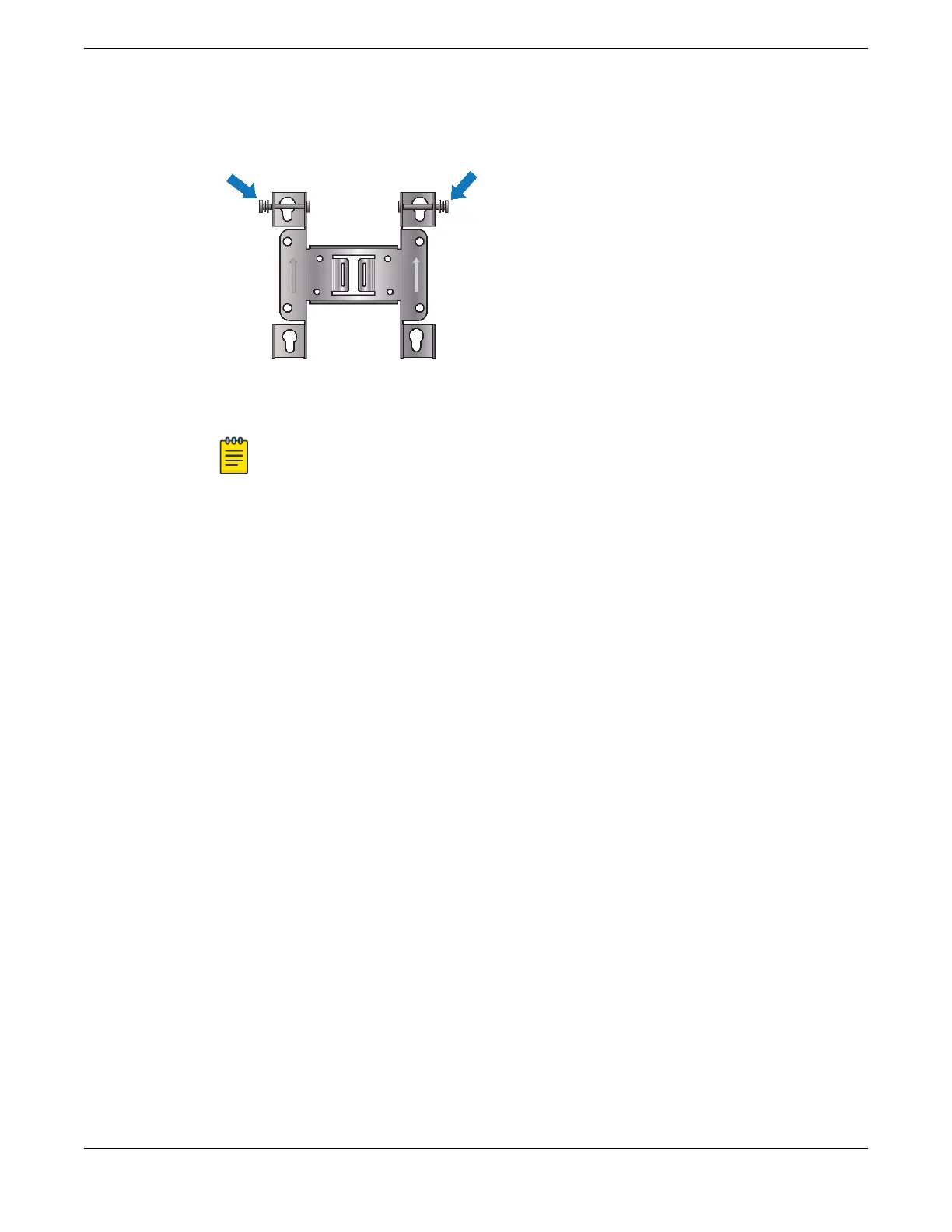

Figure 8: ASM accessory locking screws
Note
The access point will not go onto the accessory if the locking screws are not removed.
6. Insert the M5 bolt heads on the access point into the large end of the accessory keyholes and slide
the access point down until the bolts rest in the narrow end of the keyholes.
7. Tighten the locking screws on the ASM accessory to secure the access point.
8. Ground the access point.
Install the Access Point on a Flat Surface
Install the Access Point
22 ExtremeWireless™ AP460C, AP460S6C, and AP460S12C Access Points
