3. Using a slotted screwdriver, tighten the clamp screws to a minimum torque of 14 in-lbs. until the
access point is securely mounted onto the pole.

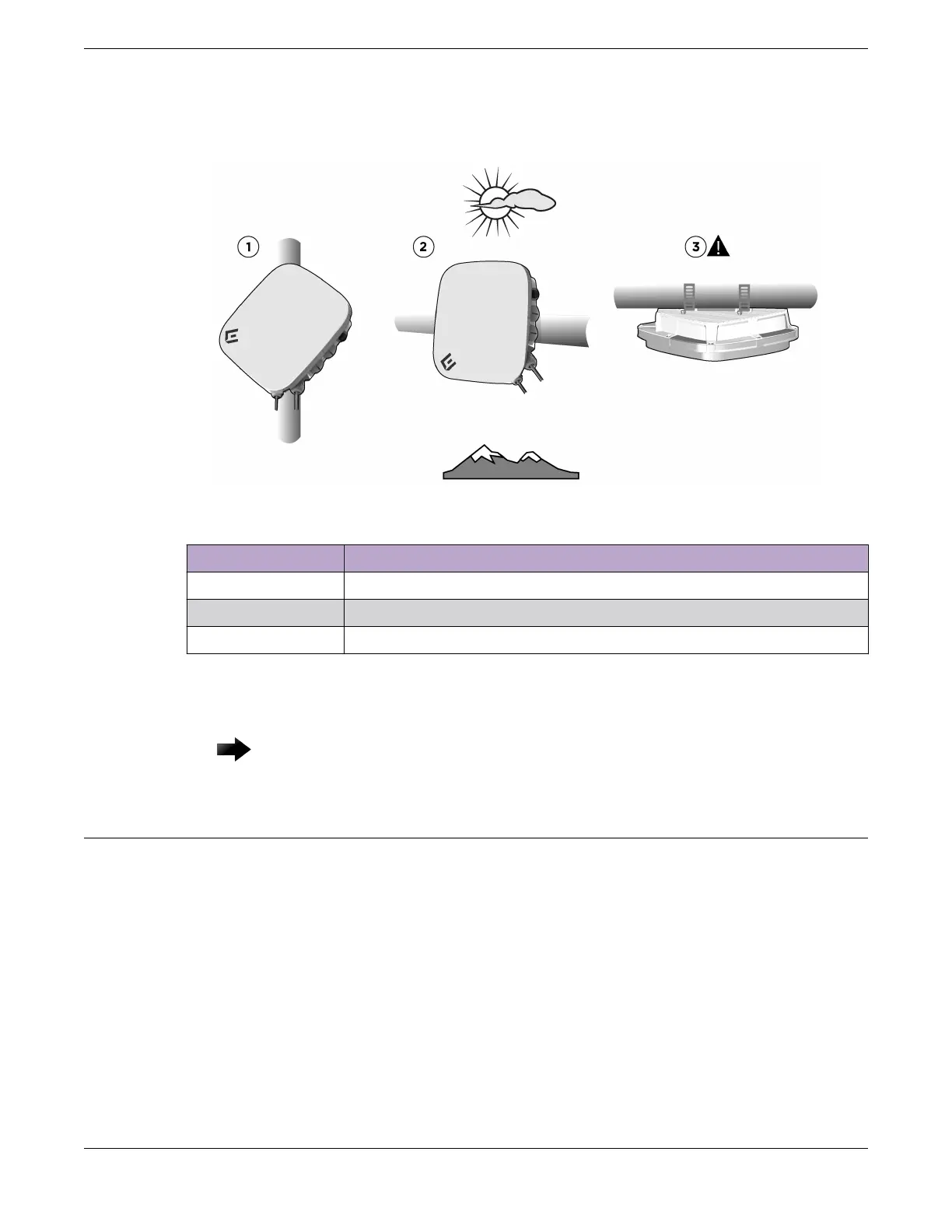

Figure 5: Access point pole mount positions
Callout Description
1 Vertically oriented access point mounted onto a pole
2 Horizontally oriented access point mounted onto a pole
3 Access point mounted onto a horizontal pole (indoor warehouse installation)
As an added security measure, you can thread a safety strap through one of the cable clamp slots in
addition to the cable clamps. Connect the other end of the strap to a secure object.
Important
The access point LAN glands must face down to eliminate water from entering the chassis.
Install the Access Point on a Flat Surface
Install the access point on a vertical or horizontal flat surface using the AH-ACC-BKT-ASM accessory.
Before You Begin
The following hardware is required to install the access point to a flat surface:
• An access point (AP460C, or AP460S6C, or AP460S12C)
• AH-ACC-BKT-ASM wall accessory (must be purchased separately)
• Four M5 bolts
• Four wall mount screws and screw-in anchors (must be provided by the installer)
Before beginning the mounting procedure, insert the four M5 bolts into the holes on the rear of the
access point and torque the bolts to 16 in-lbs.
Install the Access Point on a Flat Surface
Install the Access Point
20 ExtremeWireless™ AP460C, AP460S6C, and AP460S12C Access Points
