Extron electronics TouchLink TLP Pro 1020 Series User Manual

B
Network and Power Injector Connector (see figure 5)— is on the right side of the
recessed area.
Connect the touchpanel to the LAN using a twisted pair cable, terminated with an RJ-45
connector. Use a straight-through Ethernet cable to connect the panel to a switch or router.
Use a crossover cable to connect the panel directly to a computer.
An Extron IPL Pro Control Processor must also be connected to the same network domain
as the TouchLink Pro touchpanel. See the www.extron.com for a list of suggested models.
The network port has two LEDs. The green LED lights steadily to indicate that the
touchpanel is connected correctly to a network. The yellow LED flashes to indicate that data
is being passed to or from the touchpanel.
The connector can also be used with a PoE power injector (not provided).
ATTENTION:
• The touchpanels can use a 12 VDC desktop power supply and is also Power
over Ethernet (PoE 802.3af, class3) compliant. Do not connect either power
supply before reading the Attention notifications on page 10 or page 12.
• Les écrans tactiles peuvent utiliser une source d’alimentation externe 12 Vcc, et
sont également compatible avec l’alimentation POE via Ethernet (PoE802.3af,
classe 3). Ne branchez pas de sources d’alimentation externes avant d’avoir lu
les mises en garde dans la section «PowerSupply» sur page10 ou page 12.
To use a PoE power injector — connect a straight-through Ethernet cable to the power
supply and a switch or router. This cable carries network information from the switch or
router to the power supply input. A second straight-through cable carries the network
information and 48VDC from the power supply to the touchpanel. Connect the IEC power
cord to a convenient 100 VAC to 240 VAC, 50-60 Hz power source.
The figure below shows the Extron XTP PI 100. Your power injector may look different.
100-240V ~ 50-60Hz
0.4A MAX
XTP
PWR
XTP PWR
To network switchTo touchpanel

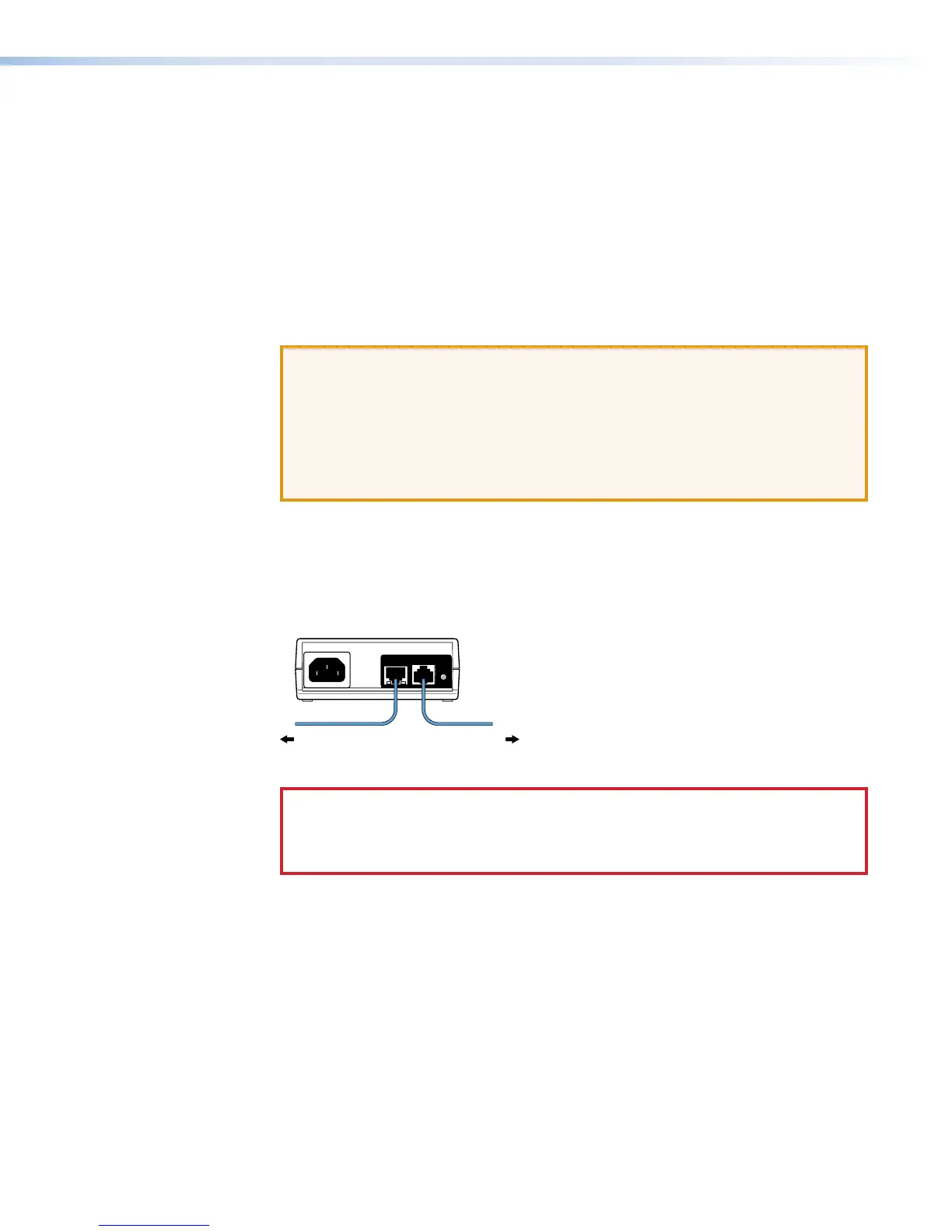

Figure 7. Connecting the Power Injector
CAUTION: Risk of Explosion if the battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
ATTENTION
: Risque d’explosion. Ne pas remplacer la pile par le mauvais type de
pile. Débarrassez-vous des piles utilisées selon le mode d’emploi.
TLP Pro 720 Series and TLP Pro 1020 Series • Panel Features 11
