On-screen Menus
On-screen menus allow initial configuration of the TLP Pro 720 series and TLP Pro 1020 series:
z Setup Menu
z Calibration Screen
Setup Menu
To open the setup menu, press the Menu button. For the TLP Pro 720T and TLP Pro 1020T, the
Menu button is located on the rear panel (see figure 5,
C
on page 8). For the TLPPro720M
and TLP Pro 1020M, the Menu button is located on the front panel and the bezel must be
removed first (see figure 4,
B
on page 7).
The menus open at the Status screen. There are five different screens (Status, Network,
Display, Audio, and Advanced). These can be selected by pressing the appropriate button in
the navigation panel at the top of the screen. The button for the selected screen is yellow; the
buttons for the remaining screens are black.
There is also a red
Exit button in the top right corner of the screen. Pressing this button applies
and saves any changes and closes the menu screens.
In this section, the figures will show the screens for the TLP Pro 720M. The screens for the other
touchpanels are similar.
Status Screen
Status
Display Audio Advanced Exit
Network
Info
Model: TLP Pro 720M
Part Number: 60-1394-02
Firmware
Version:
1.00
PoE Status: On
Network
IP Address:
DHCP:
Host Name:
Off
192.168.254.251
TLP-AB-CD-EF
Display
Resolution:
Project:
Sleep Timer:
800x480
N/A
5 Minutes
Audio
Master Volume:
Master Mute: Off
99
Advanced
Controller IP: N/A
Project Size: N/A

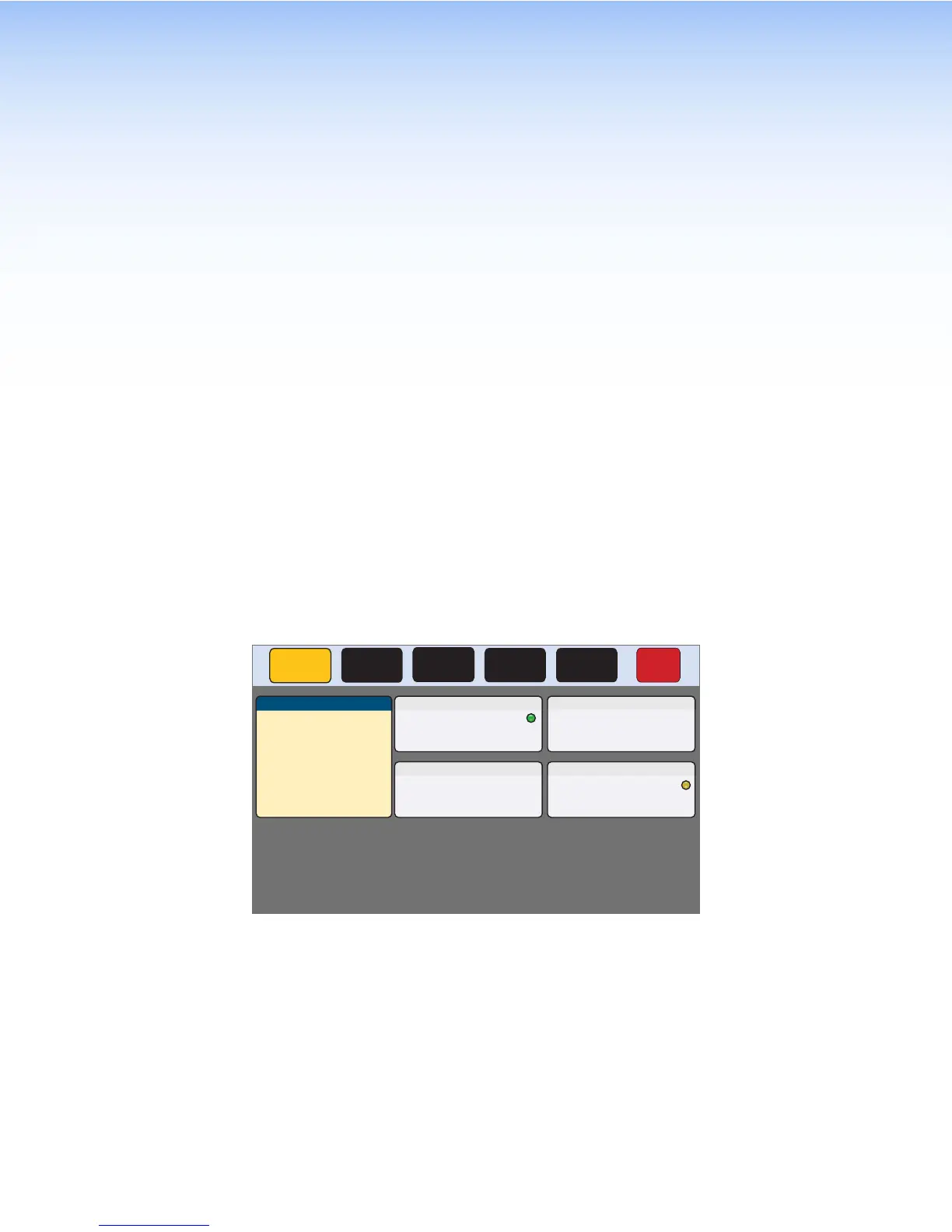

Figure 8. Status Screen
The Status screen is a read-only screen that provides basic information about the touchpanel.
Each of the other four panels shows a summary of the information on the other screens.
Pressing any of the panels opens the corresponding screen in exactly the same way as pressing
the buttons in the top navigation panel.
The bubble in the Network panel lights green when there is a network connection or amber if
there is no connection. The bubble in the Advanced panel lights green when a control processor
is connected or amber if none is connected.
TLP Pro 720 Series and TLP Pro 1020 Series • On-screen Menus 14
