Extron electronics XTP II CrossPoint 1600 Setup Guide

16 XTP II CrossPoint Series • Installation
HDMI connectors

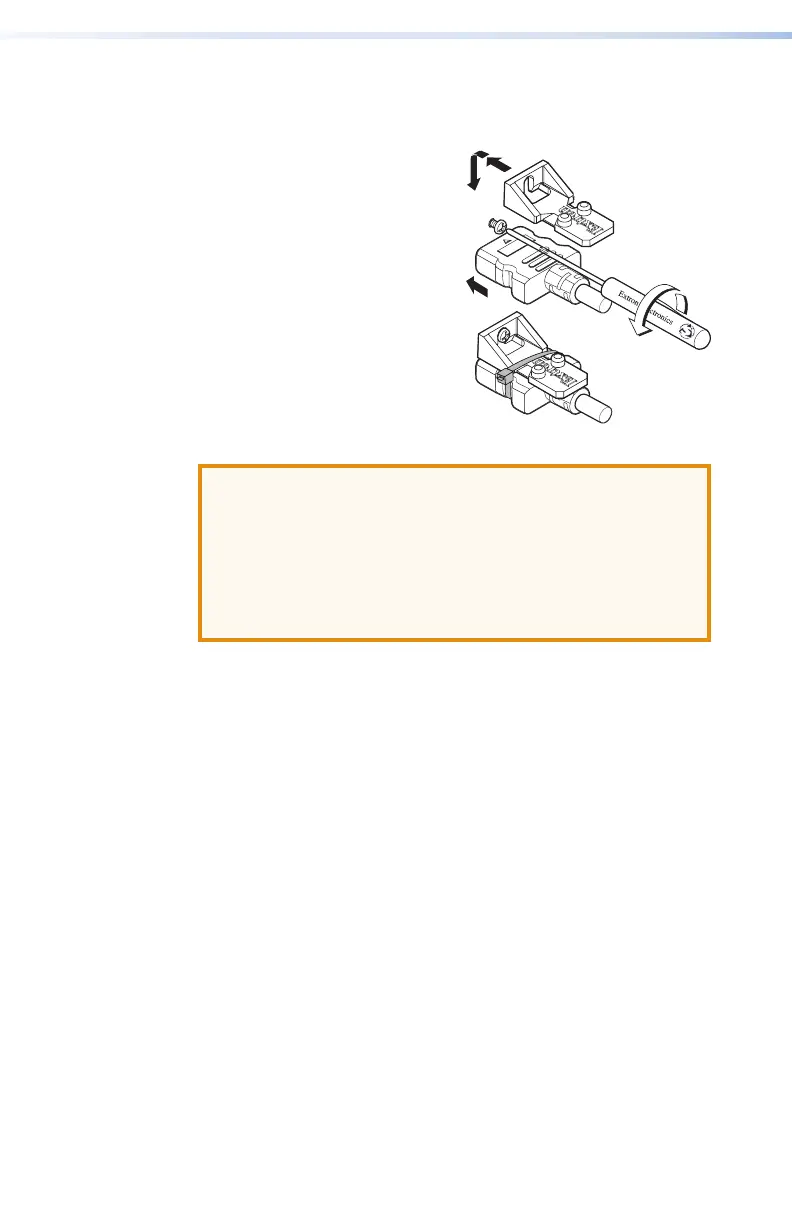

Use a LockIt Lacing Bracket to securely fasten each HDMI cable to
the matrix switcher as follows:
1. Plug the HDMI cable into the
panel connection (
1
).
2. Loosen, but do not remove,
the HDMI connection
mounting screw from the
panel enough to allow the
LockIt to be placed over it
(
2
).
3. Place the LockIt Lacing
Bracket on the screw and
against the HDMI connector
(
3
), then tighten the screw to
secure the bracket.
ATTENTION:
• Do not overtighten the HDMI connector mounting screw.
The shield it fastens to is very thin and can easily be
stripped.
• Ne serrez pas trop la vis de montage du connecteur
HDMI. Le blindage auquel elle est attachée est très n et
peut facilement être dénudé.
4. Loosely place the included tie wrap around the HDMI connector
and the LockIt Lacking Bracket (
4
).
5. While holding the connector securely against the lacing
bracket, use pliers or similar tool to tighten the tie wrap (
5
)
then remove any excess length.
3
333
111
555
444
222
