Extron electronics XTP II CrossPoint 1600 Setup Guide

17XTP II CrossPoint Series • Installation
Local audio connectors
Unbalanced Stereo Output Balanced Stereo Output
Unbalanced Stereo Input
Balanced Stereo Input
Do not tin the wires!
Tip
No Ground Here
No Ground Here
Tip
LR
Sleeves
Tip
Ring
Tip
Ring
LR
Sleeves
Tip
Ring
Tip
Ring
LR
Sleeves
Tip
Sleeve
Sleeve
Tip
LR

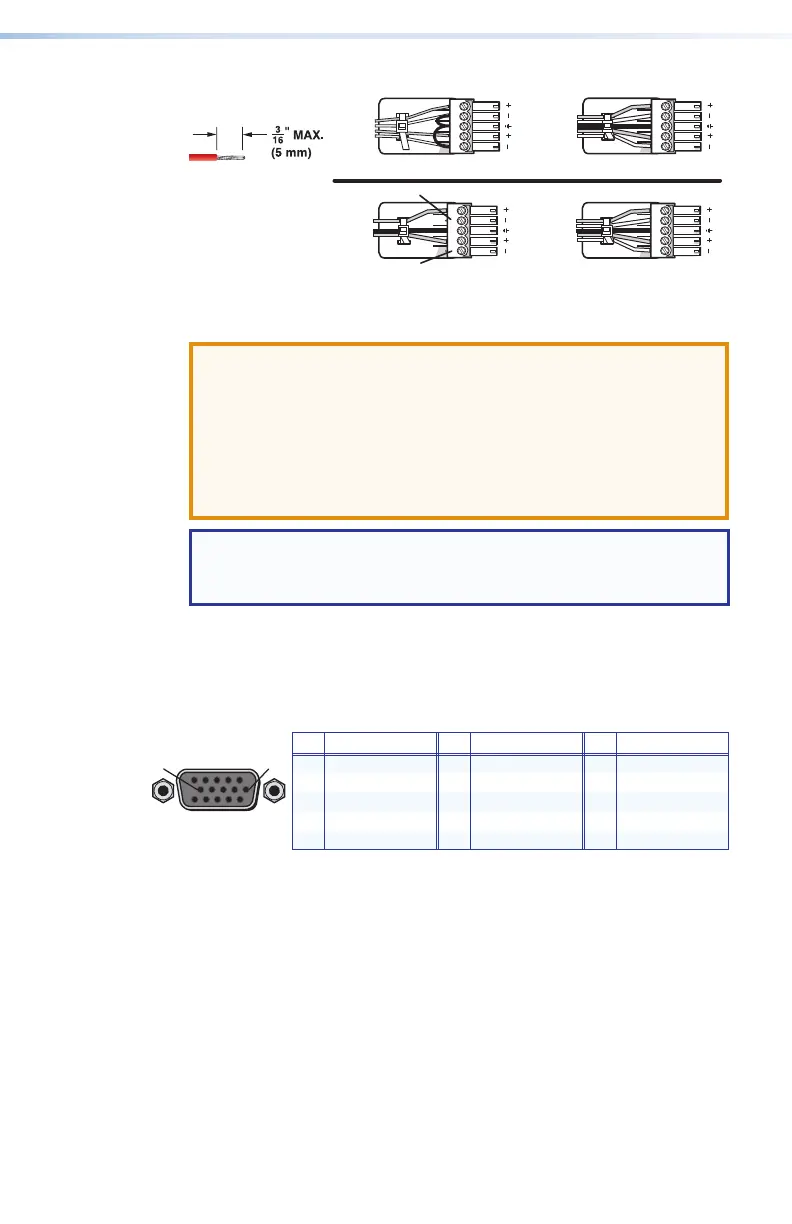

Figure 7. Audio Input and Output Connector Wiring
ATTENTION:
• For unbalanced audio output, connect the sleeves to
the ground contact. DO NOT connect the sleeves to the
negative (-) contacts.
• Pour l’audio asymétrique, connectez les manchons au
contact au sol. Ne PAS connecter les manchons aux
contacts négatifs (–).
NOTE: The length of exposed wires is important (see the
RS-232 connector NOTES on page 15 for more
information).
Analog video connectors
The universal analog video boards can accept RGB video and (with
adapters) component video, S-video,and composite video (see
gure 8).
1
2
3
4
5
51
15 11
610
FunctionPin FunctionPin FunctionPin
Red video
Green video
Blue video
Monitor ID bit
H. sync return
6
7
8
9
10
Red return
Green return
Blue return
Not used
V. sync return
11
12
13
14
15
Monitor ID bit
Monitor ID bit
H. sync
V. sync
Monitor ID bit
Figure 8. Analog Video Connector Wiring
For component video, use the R-(R-Y) and R return pins (pins 1
and 6), G (Y) and G return pins (pins 2 and 7), and B (B-Y) and B
return pins (pins 3 and 9).
For S-video, use the B, B return (C-chroma), G, and G return
(Y-luma) pins.
For composite video, use the G pin and the associated return pin.
Input only sync signals, no video signals, on the sync pins, 13 and
14.
