EZ-ACCESS Modular Ramp User Manual

- 23 -
4.2.
INSTALL RAMP HANDRAILS:
4.2.1.
Install pre-assembled handrail section to side of ramp run (FIG. 4.2).
4.2.1.1.
The vertical posts of the handrails each have two holes that
correspond with the studs on handrail ends brackets (installed in
previous steps).
4.2.1.2.
Attach handrails to these studs using two each 5/16″ flat
washers and two each 5/16″ nuts per handrail post.
NOTE:
If
the studs do not align with the posts and are off by 6″, the
handrail end bracket was installed into the wrong threaded insert
on the ramp. (See FIG. 3.13 for proper installation location).

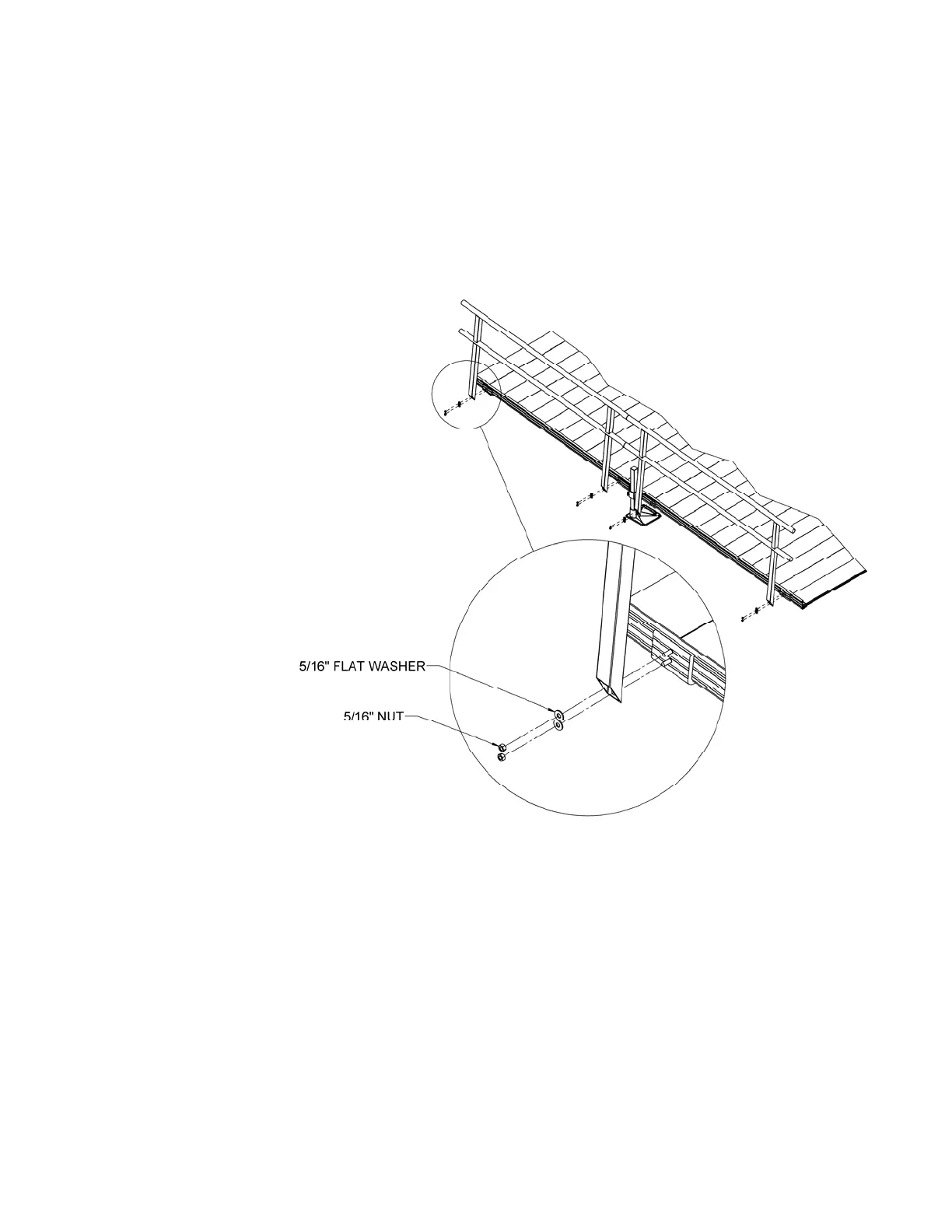

FIG. 4.2
