EZ-ACCESS Modular Ramp User Manual

- 39 -
6.6.
LANDING PAD:
6.6.1.
The MLP (LANDING PAD) is used at the bottom of a ramp or ramp run to
assist mobility on soft or uneven ground.
6.6.2.

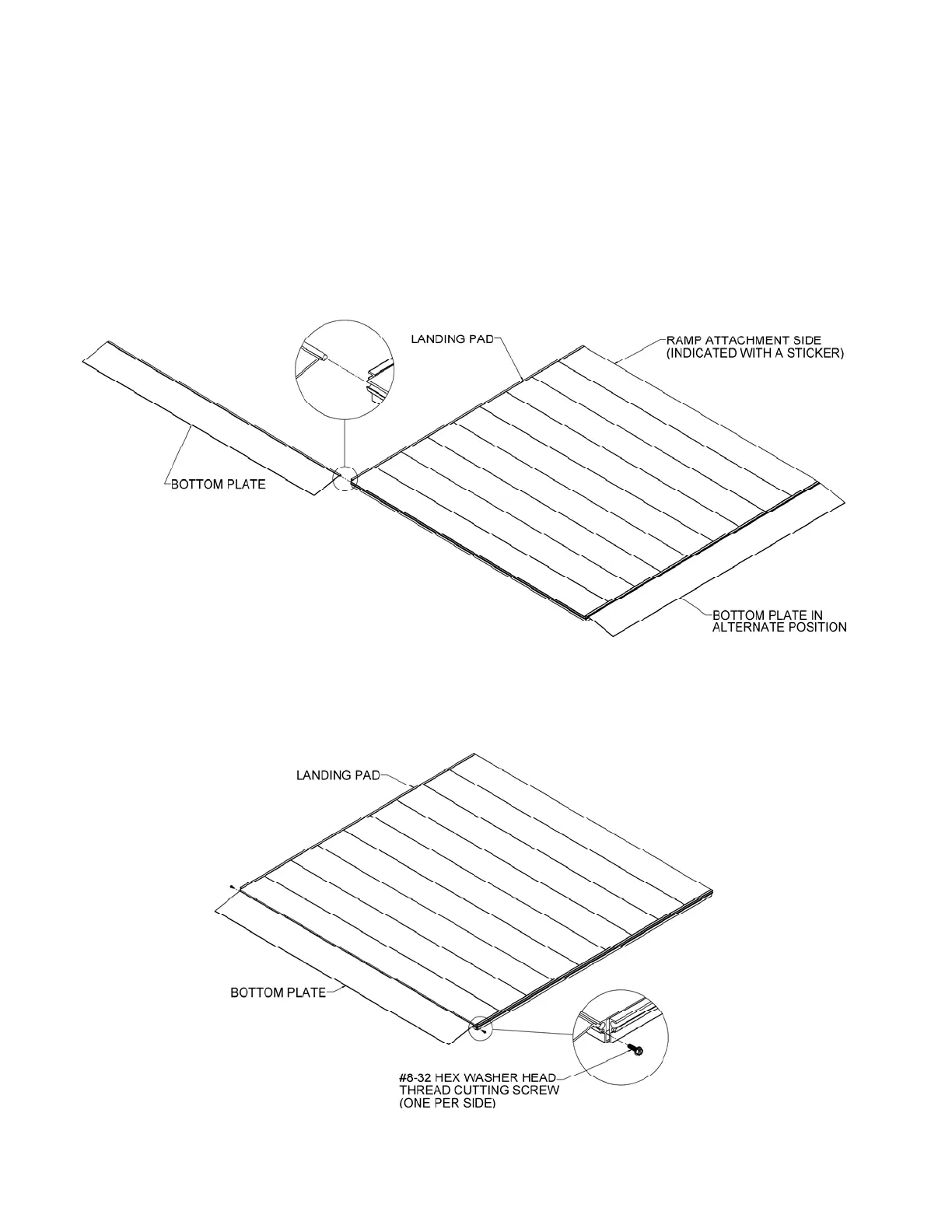

Slide the bottom plate into one of the three available slots (FIG. 6.18).
NOTE: The ramp must be installed on the side marked for ramp attachment.
6.6.3.
After installing the bottom plate, install #8-32 hex washer head thread cutting
screws into the screw slots on both sides (FIG. 6.19).
6.6.4.
Lift the lower end of the ramp and install the lower transition as described
(see ‘RAMP LOWER TRANSITION), then slide the pad underneath. Make
sure the ramp is on the side marked for ramp attachment and ensure that the
lower transition extends fully onto the pad.
6.6.5.
Attach the lower transition to the pad using the two provided 1/4” self drilling
screws (FIG. 6.20).
FIG. 6.18
FIG. 6.19
