EZ-ACCESS Modular Ramp

- 26 -
4.4.
INSTALL HANDRAIL END LOOPS:
4.4.1.
Locate MRHRL (HANDRAIL END LOOP SINGLE). Install 4″ ring joiner into
open ends of each ramp handrail tube with the joiner set screws oriented to
the bottom (FIG. 4.6).
4.4.2.
Install the end loop over the other end of the joiners and tighten joiner set
screws with supplied Allen wrench.

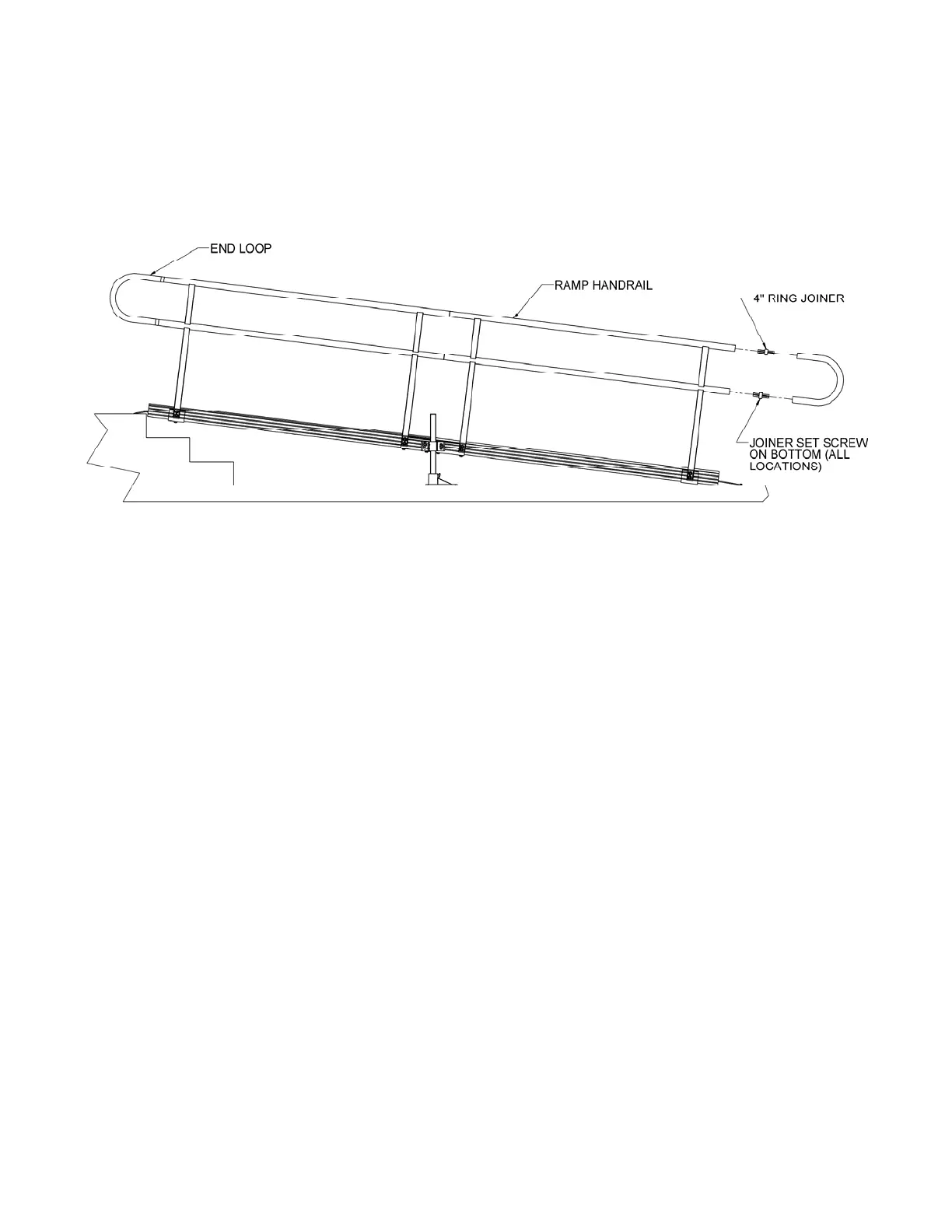

FIG. 4.6
