2.2.
INSTALL SUPPORT TUBES AND FEET AND ADJUST PLATFORM HEIGHT:
2.2.1.
Support tubes, plugs & feet come in pairs. Support tubes will come in lengths
sufficient for the heights at specific locations and should not need to be cut. It
is recommended that the plug be installed in the support tube before installing
the tube into the platform, but it can be done at any point during the
installation.
2.2.2.
Tip the platform on its side. Have one person support the platform while the
other person slides the support tubes into the four platform corner pockets.
Insert plugs into the top of the support tubes as shown. Adjust the support
tubes to the approximate height needed (FIG.2.4).

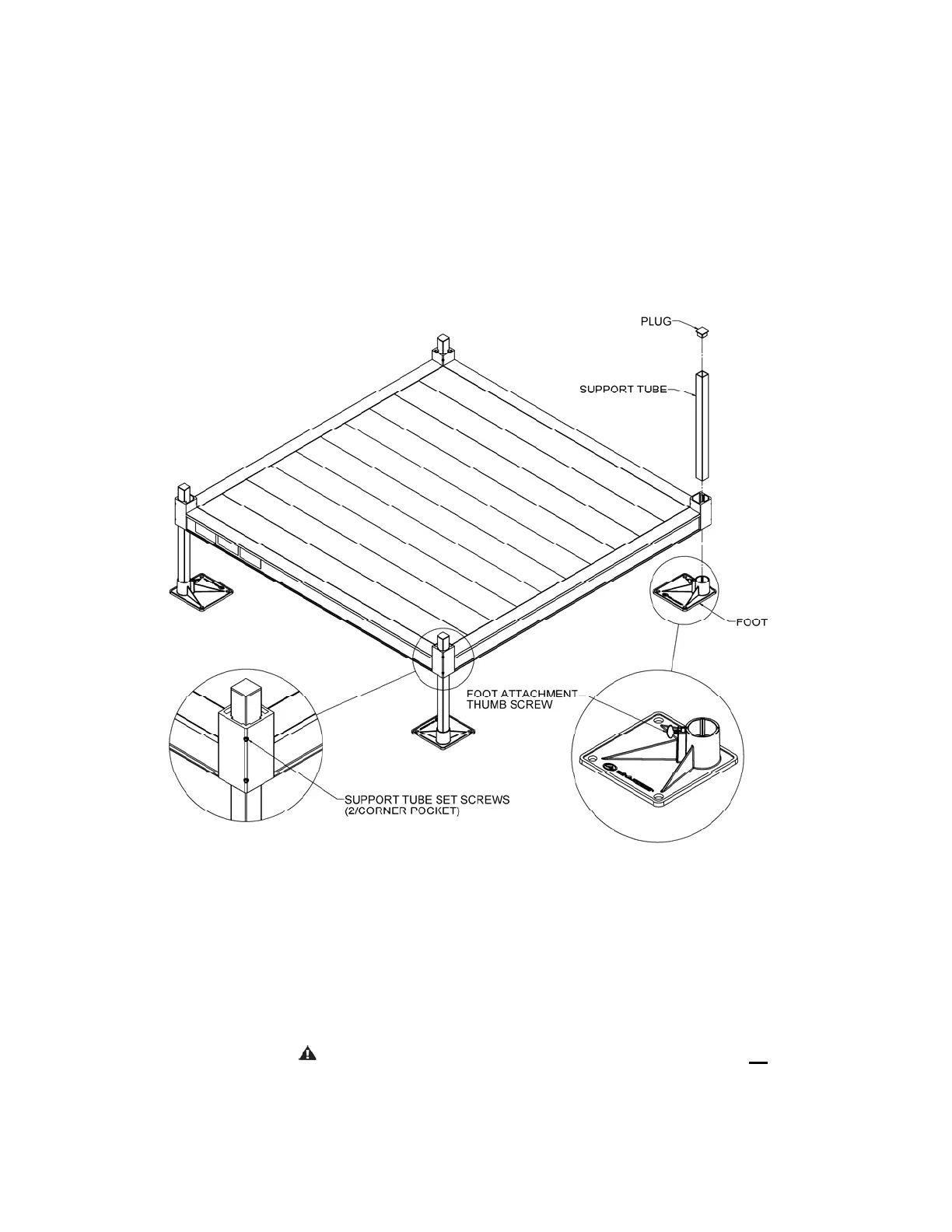

FIG. 2.4
2.2.3.
Use supplied 3/16″ Allen wrench to tighten one of the two set screws in the
corner pocket, just enough to hold the support tube in place but do not over
tighten (the second set screw will be tightened after final height adjustments
are complete).
NOTE:
The universal platform configured as a turn back
platform (FIG. 2.3) will have six tubes to adjust.
WARNING: Do not attempt to walk on the platform until all support
tube set screws have been tightened securely.
2.2.4.
Place the platform with support tubes attached into the upright position.
IMPORTANT:
Do not let the weight of the platform bear on the support tubes
while tipping the platform upright.
To Next Page
