- 41 -
6.7.
PLATFORM TIE STRAPS:
6.7.1.
The MTPS (PLATFORM TIE STRAP) is intended to attach a platform to an
existing porch, deck, threshold or platform where there is little or no gap (1/2″
maximum if being installed per ADA Guidelines).
6.7.2.
Position straps next to the platform corner pockets, extending equally onto
the platform and the existing surface (FIG. 6.21).
6.7.3.
Using the strap as a template, mark and drill 1/8″ pilot holes.
6.7.4.
Secure strap to the platform and existing structure using the supplied 1/4″ x
1″ self-drilling self-tapping screws.

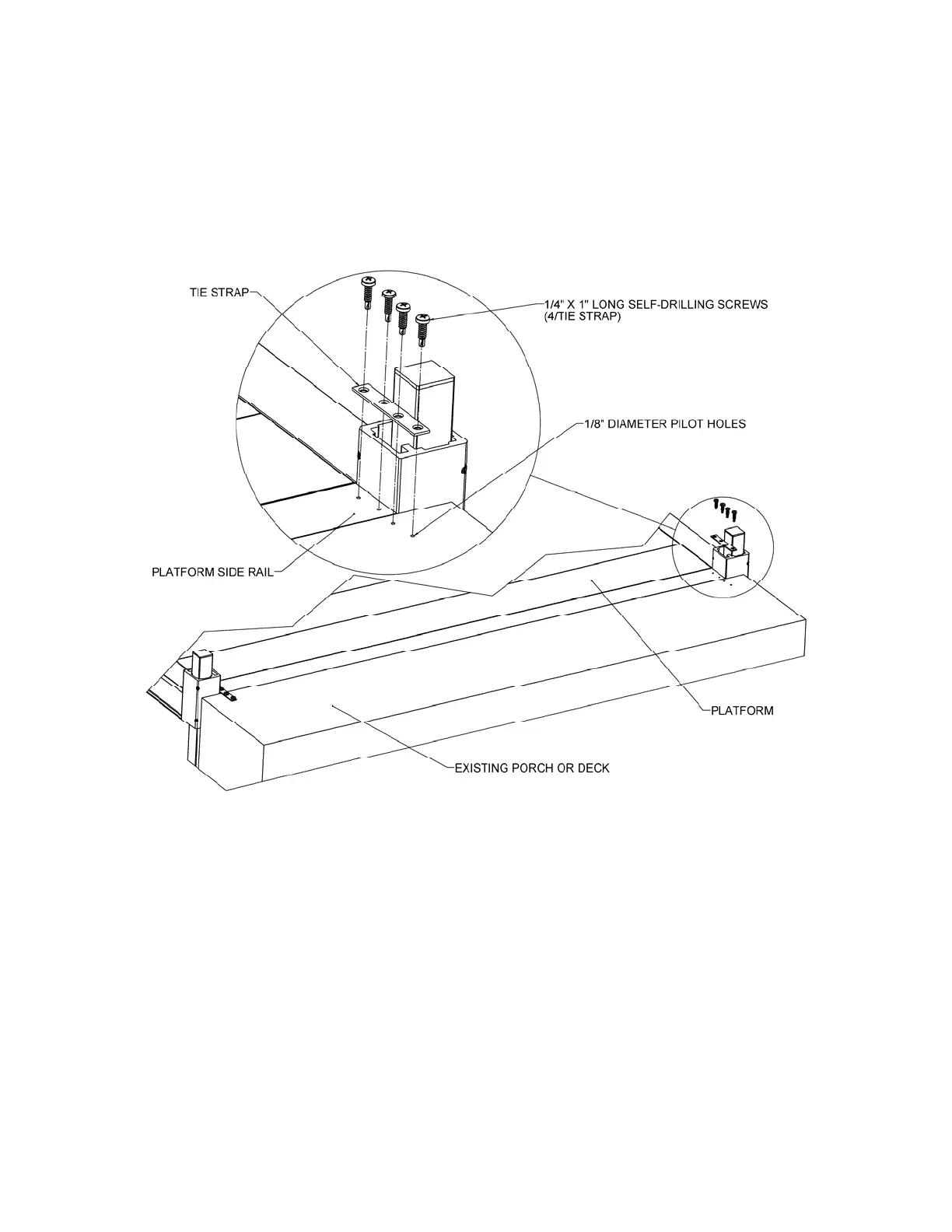

FIG. 6.21
