EZ-ACCESS Modular Ramp User Manual

- 45 -
6.9.10.
If there is are support tubes in the ramp run, the same method as described
above for platforms can be used. Otherwise, drill a 5/16″ hole below the
tread surface (approximately 3/4″ above the bottom of the side rail) and
between the ribs underneath the treads in each of the side rails at the
desired location.
6.9.11.

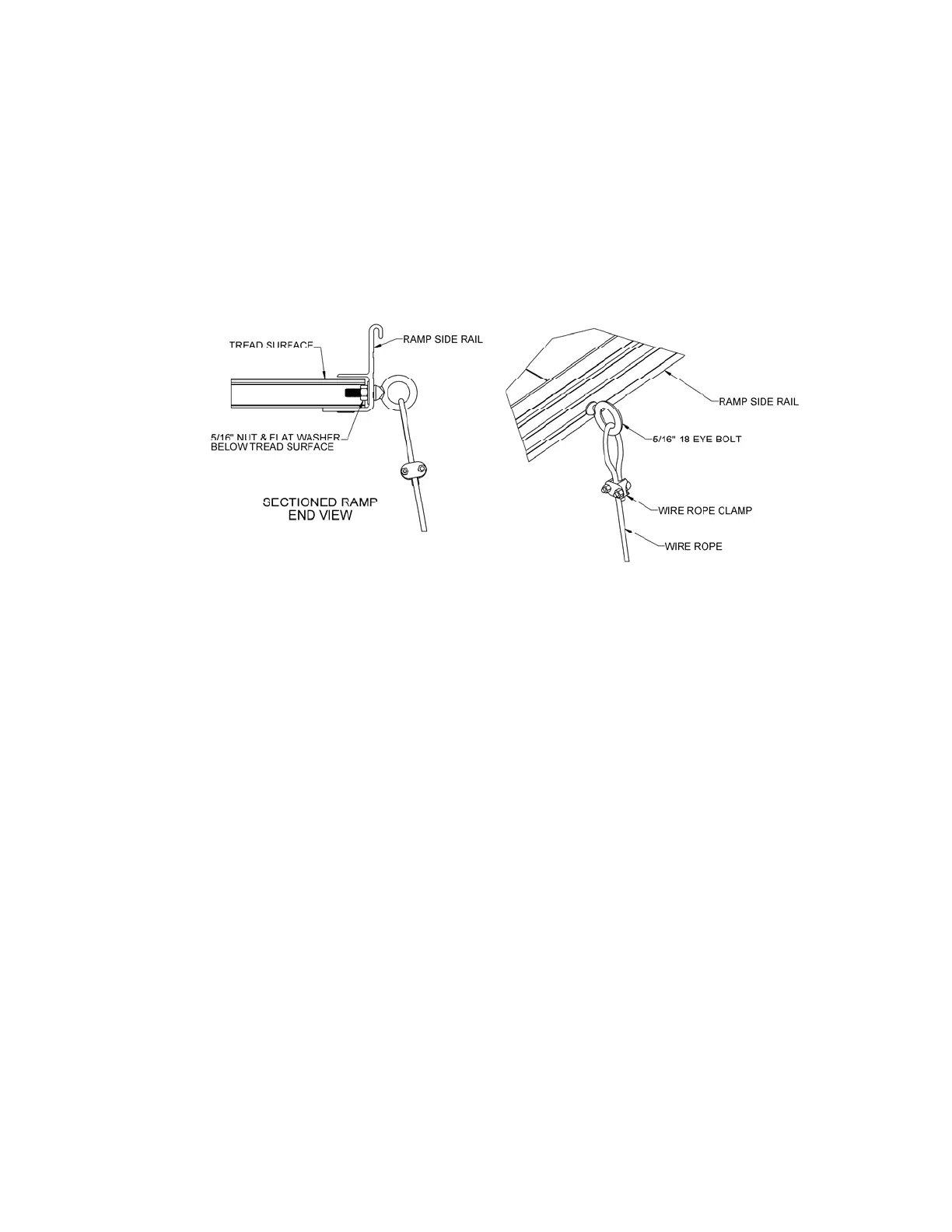

Install one of the 5/16″ eyebolts and secure to the ramp using one 5/16″ flat
washer and one 5/16″ nut in each hole (FIG. 6.25).
6.9.12.
Secure one end of the wire rope to the eyebolts using the supplied 3/16″ wire
rope clamps.
6.9.13.
Repeat for all locations.
FIG. 6.25
