4

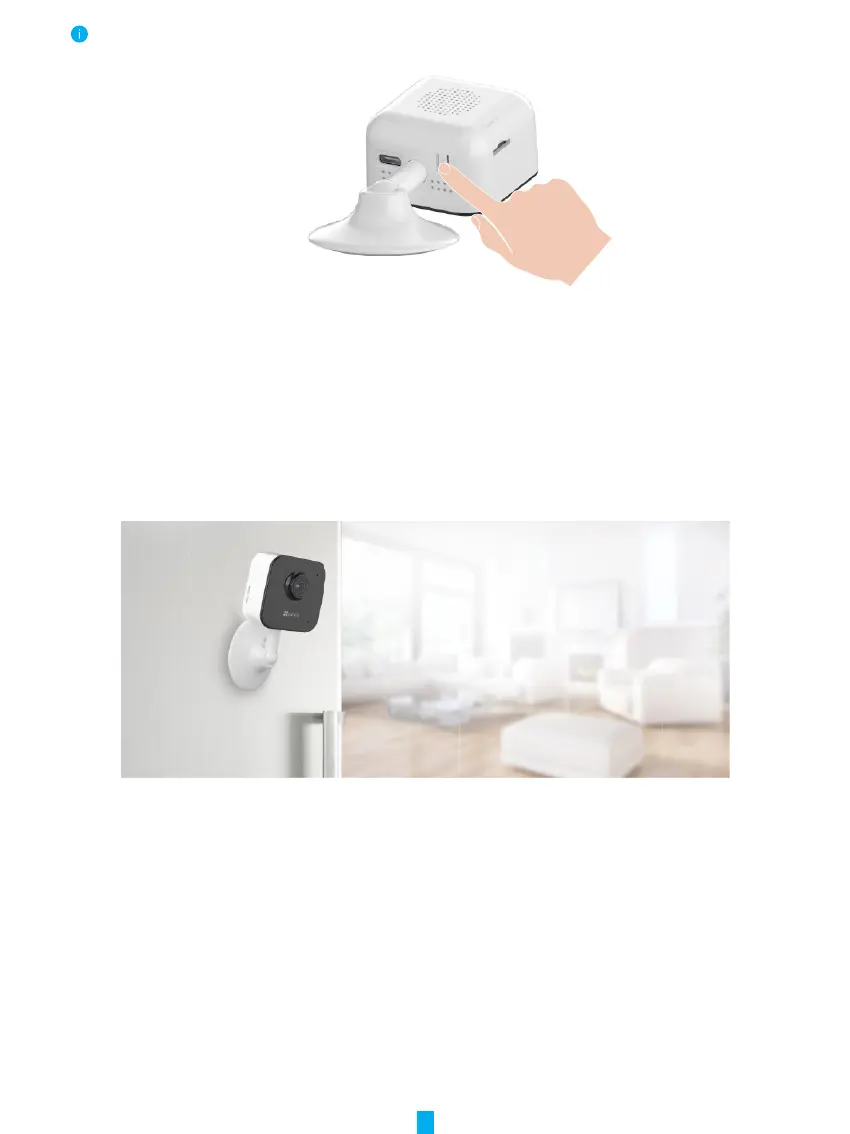

If you want to change your camera's Wi-Fi, press and hold the reset button for 5 seconds and repeat the steps above.
Installation
1� Installation Location
Choose a location with a clear, unblocked field of view and with a good wireless signal to the camera. Please keep the
following tips in mind:
Remove the protective lm from the lens.
Make sure the wall is strong enough to withstand three times the weight of the camera.
Installation height: Less than 6.6 ft(2 m) above the ground.
Recommended installation angle: Tilt down 15 degrees.
It is recommended to set detection sensitivity on EZVIZ app when selecting location. Thus you can verify if motion can be
detected in the camera’s placement and adjust the sensitivity based on the size and distance of detected object.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ezviz H1c and is the answer not in the manual?

Ezviz H1c Specifications

General IconGeneral
Lens2.8mm fixed lens
Audio InputBuilt-in microphone
Audio OutputBuilt-in speaker
Operating Temperature-10 °C to 45 °C (14 °F to 113 °F)
IR RangeUp to 10m (32.8ft)
Max. Resolution1920 × 1080
Video CompressionH.264
Wi-Fi StandardIEEE 802.11b/g/n
Frequency Range2.4GHz
Local StorageMicroSD card
Power SupplyDC 5V / 1A
Sensor1/2.7" Progressive Scan CMOS
ConnectivityWi-Fi
StorageMicroSD card
