Installing the IP Application Switch Platform
Platform Guide: 8400 and 8800 2 - 3
Figure 2.1 shows the orientation of the IP Application Switch and the
mounting screws for installation in a standard 19" rack. Figure 2.2,
following, shows the IP Application Switch installed in the rack.

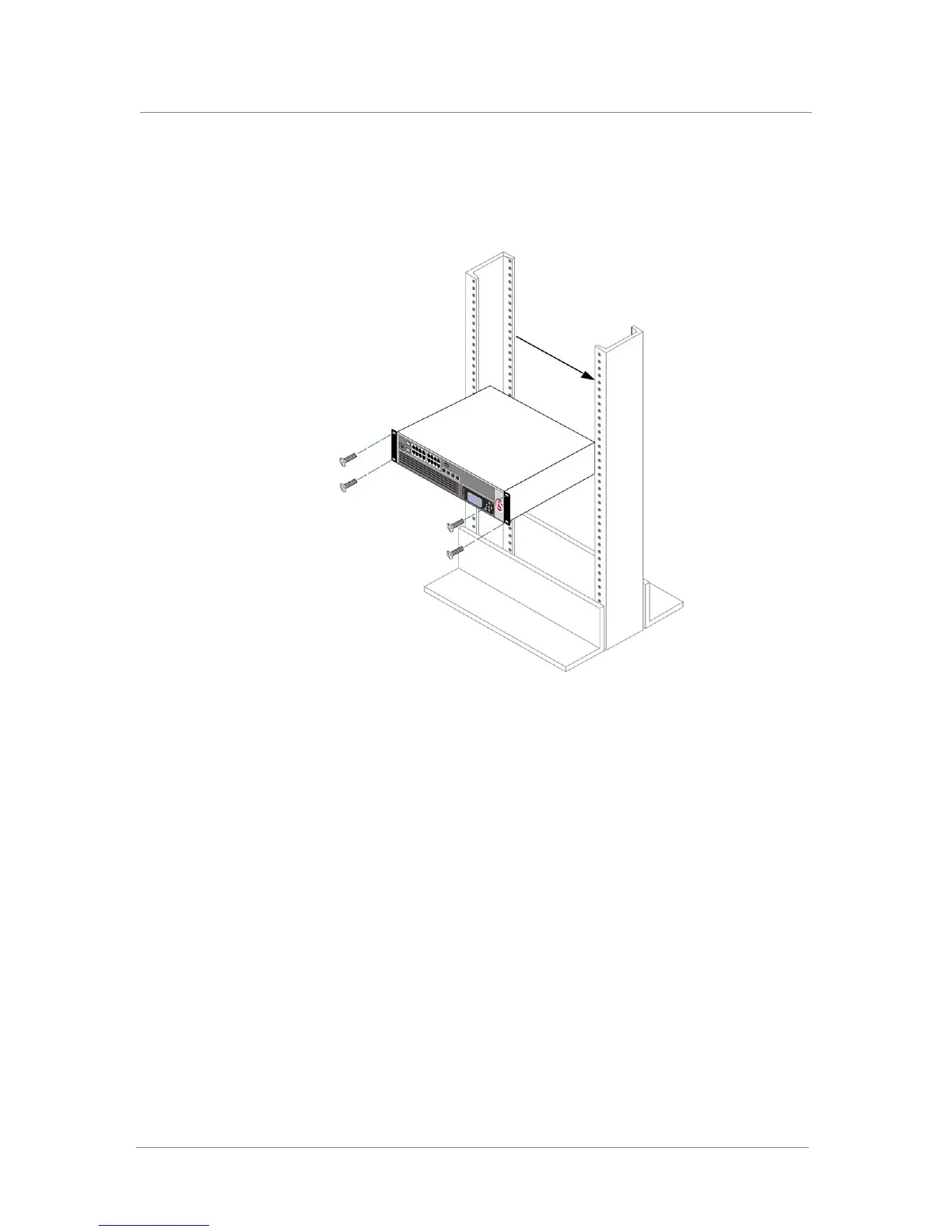

Figure 2.1 Platform orientation for rack mounting
