402 Installation
402 Standard
A 4-1/2 in. (114 mm)
B 4-1/2 in. (114 mm)
C 35-1/2 in. (902 mm)
D If greater than 2 in.
(50 mm), construct
a recess liner.
E Must be less than A

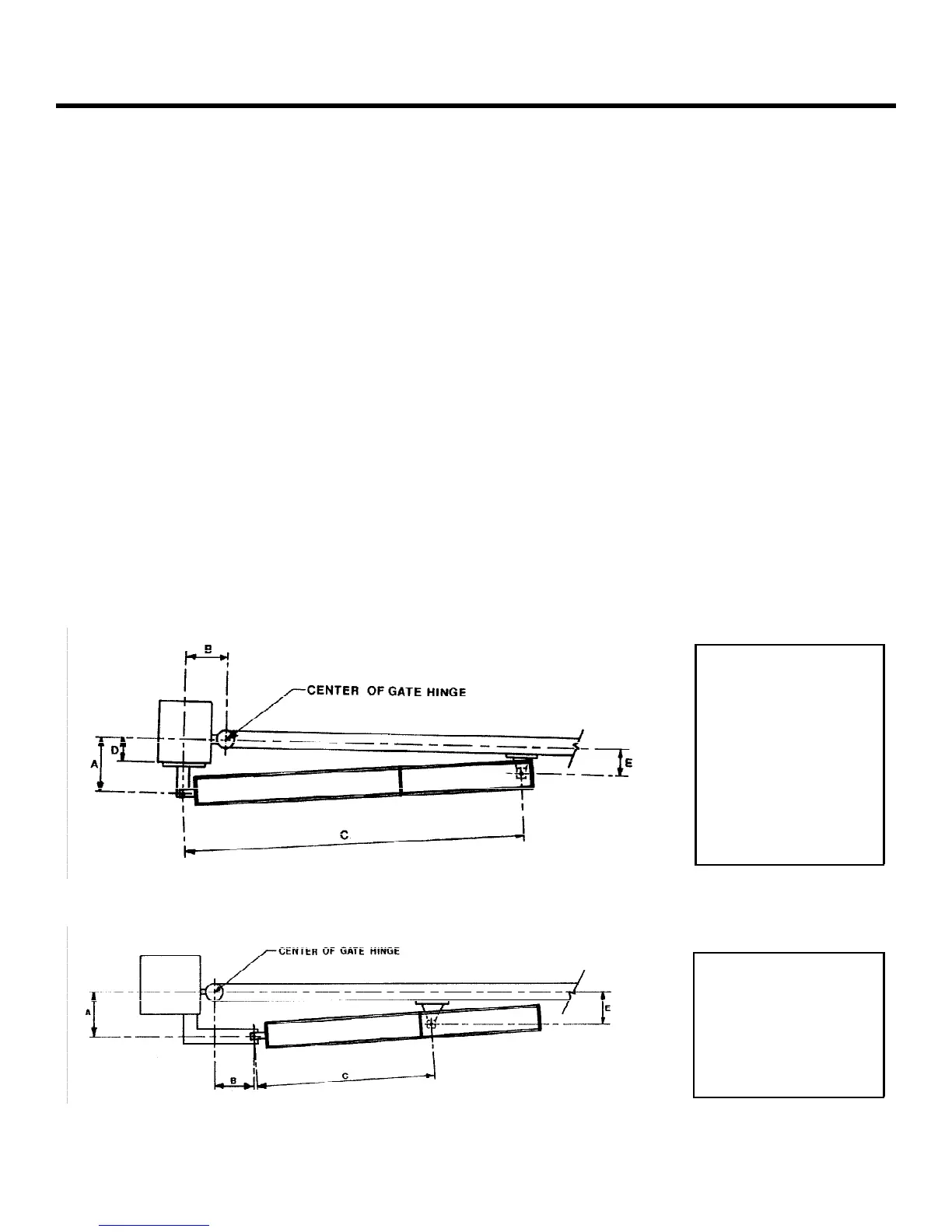

Figure 4. An inward swinging gate, top view: important mounting dimensions
Figure 5. An outward swinging gate, top view: important mounting dimensions
402 Standard
A 4-1/2 in. (114 mm)
B 4-1/2 in. (114 mm)
C 26-1/2 in. (673 mm)
E Must be less than A
Attach the rear mounting bracket according to the
dimensions in Figure 4.
WARNING! You must achieve the A and B
dimensions, dimensions as specified in Figure
4. Modification of the rear bracket may be
necessary to achieve these dimensions (I.e.,
cutting or extending the bracket provided)
If you have a steel gate post, weld the rear bracket
directly to it. If the gate post is made of any other
material, attach the optional mounting plate, with lag
bolts or anchors, and weld the bracket to it.
For an outward swing gate refer to Figure 5.
ATTACH THE MOUNTING HARDWARE
Place the operator so that the red and green pressure
adjusting screws face up. Place the mounting fork (hex
cut up if you have a nylon rear fork) in the operator’s
rear flange, secure with the long brass pin and self-
locking nut.
Attach the fork assembly to the rear mounting bracket
and secure with the short pint, washer, and nut.
Push the front pin through the front mounting bracket
then the piston red to temporarily attach them
together.
ATTACH THE FRONT MOUNTING BRACKET TO
THE OPERATOR
Insert the triangular key over the Manual Release
mechanism on the underside of the operator and
turn the key counterclockwise one turn.
For inward swing, pull the piston completely out and
push it back inward approximately 1/4 “ (6mm).
For outward swing, push the piston in completely
and pull it back out approximately 1/4“ (6mm).
NOTE: Be sure the operator is level and that
the gate is against the closed positive stop.
Hold the front mounting bracket flush against the
gate, mark the location of the front mounting
bracket, remove the operator from the gate.
Remove the front mounting bracket from the piston
rod.
To Next Page
