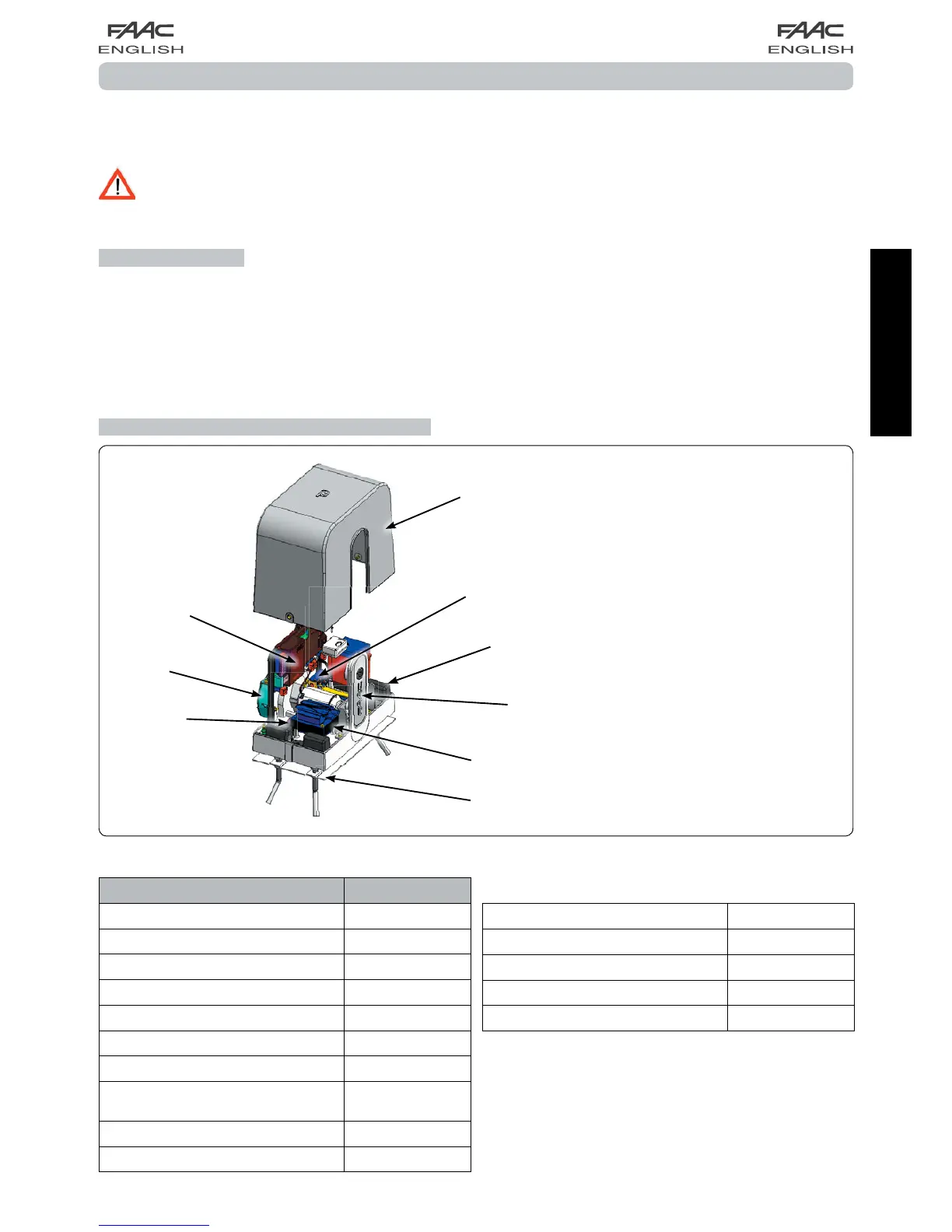

Fig. 1
ENGLISH
C720
Thank you for choosing to buy this product. We are sure it will meet your needs in full provided it is used for the purposes for which
it has been designed.
This product was designed and built to control vehicle access. AVOID USING IT FOR ANY OTHER PURPOSE.
Read this manual provided with the product carefully because it provides important information on safety,
installation, use and maintenance.
1 GENERAL REMARKS
These instructions apply to the following models:
C720
Model C720 is an electromechanical operator designed to move sliding gates.
A practical and functional mechanical lock that acts directly on the motor ensures the gate is locked when the operator is not
working and, therefore, no electric lock needs to be installed.
A convenient manual release device allows the gate to be manoeuvred in the event of a power cut, if emergency batteries are
not installed or if the operator is not in service.
Cover casing
Motor lock
Link cover
Motor release handle
Transformer
Foundation plate
Cable passage holes
Pinion and pinion cover
Electronic board
1.
2.
3.
4.
5.
6.
7.
8.
9.
MODEL C720
Power supply 230 V~ 50 Hz
Max. Absorbed power (W) 170
Thrust on pinion (N) 320
Max. Torque (Nm) 18
Type of pinion Z28 module 4
Gate max. recommended length (m) 15
Max. leaf weight (Kg) 400
Gate speed (m/min)
min. 8
Max. 18
Limit switch type Magnetic
Clutch
Electronic
Operating temperature (°C) -20 +55
Gearmotor weight (kg) 6
Protection level IP44
Gearmotor dimensions See Fig.02
Use frequency RESIDENTIAL
2 DESCRIPTION AND TECHNICAL SPECIFICATIONS
