C720-C721 10 732568 - Rev.E
햳
햲
Fig. 22
Fig. 24
햲
Fig. 25
Fig. 23
쐃
쐇
ENGLISH
Translation of the original instructions

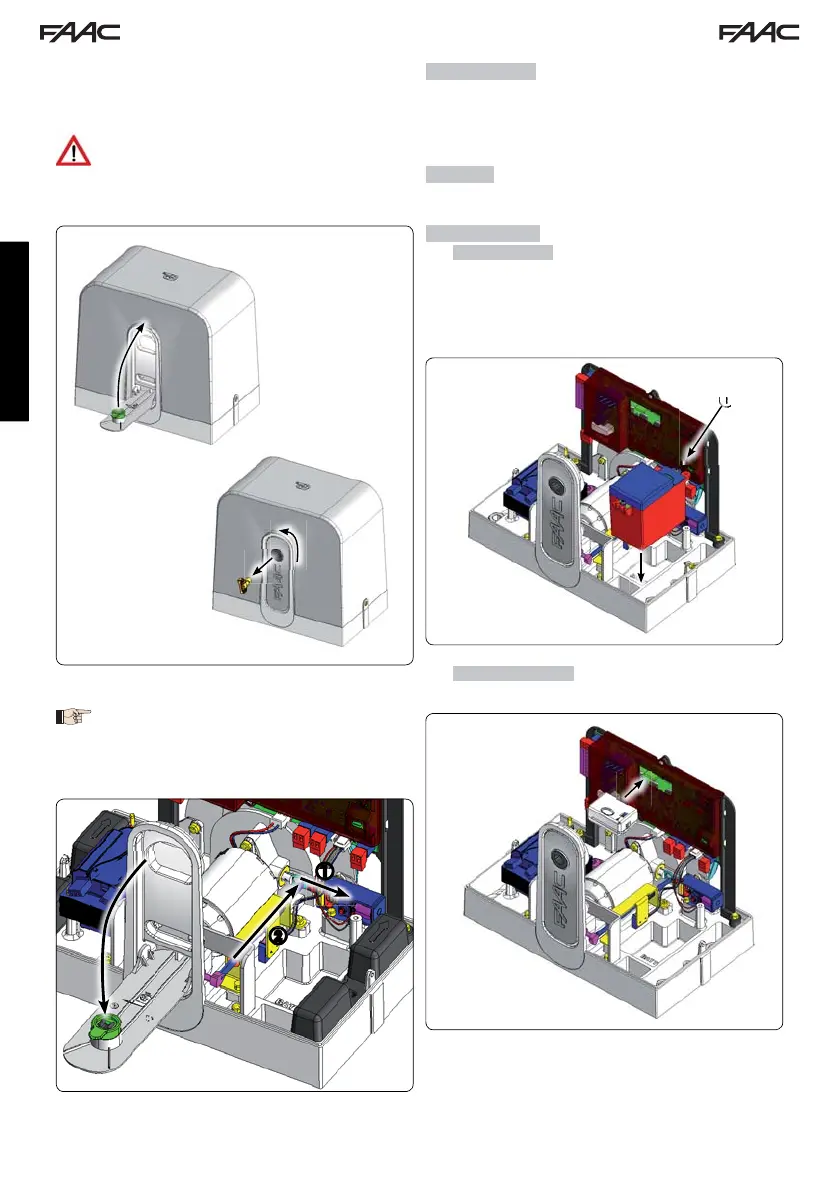

Proceed as follows to lock the gearmotor:
1. Fully raise the release lever to the mechanical stop, Fig. 22
re.
햲.
2. Turn the release anticlockwise as shown in Fig. 22 re.
햳.
To maintain the operator intact, avoid pulsing
the gate to operate before resetting the lock
system.
9 MAINTENANCE
It is advisable to check the efficiency of the system at least
every 6 months, particularly the efficiency of the safety devices
(including the motor thrust force, which must comply with current
standards) and of the release devices.
10 REPAIR
Contact an authorised Repair Centre for repairs.
11 ACCESSORIES
11.1 BATTERY KIT
Install the battery kit as shown in Fig. 24, inserting it in its seat and
securing with screw re.
햲. Connect it to the appropriate con-
nector on the board (see relevant instructions).
Refer to the specific instructions for all information on the bat-
tery kit.
11.2 RADIO MODULE
Install the radio module as shown in Fig. 25.
Lowering the release lever, both the motor lock,
which is retracted (Fig. 23 re. 햲), and the safety
microswitch forcing the automation to STOP (Fig.
23 re.
햳) are operated.
