FAAC S418 Instruction Manual

10
FAAC Model S418 Swing Gate Operator

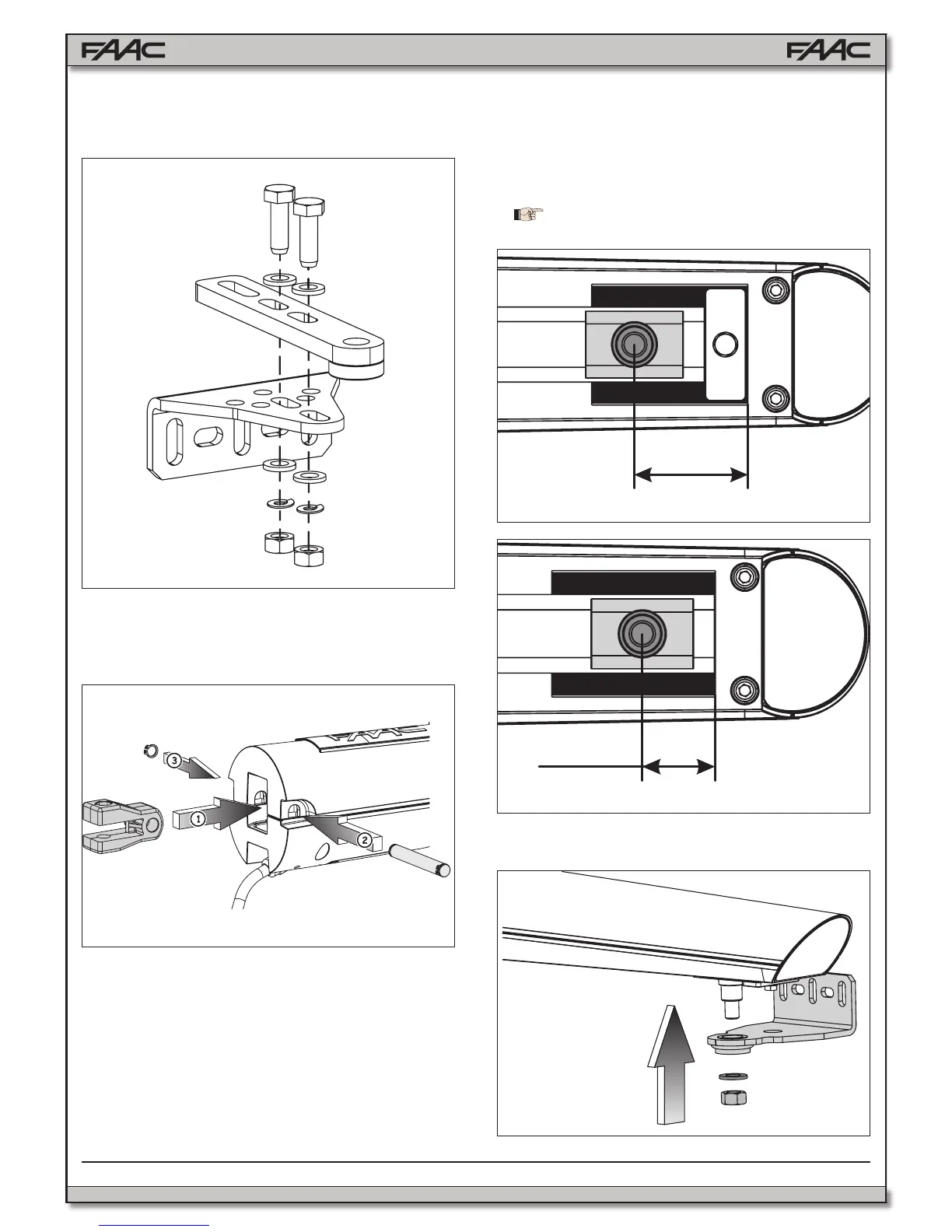

2. Secure the rear bracket, as indicated in
Figure 10, so as to follow the A and B values
determined previously.
2⅛
Fig. 12
1⅜
Fig. 13
Fig. 10
Fig. 11
Fig. 14
4. Check that the front fitting is in the position
indicated in Figure 12 (with the mechanical stop
at closing) or in Figure 13 (with no mechanical
stop at closing). If this cannot be accomplished,
the operator must be temporarily powered*, in
order to bring the tting into position.
* A 12V DC battery may be used.
5. Secure the front bracket as indicated in
Figure 14.
3. Secure the rear fitting of the operator as
indicated in Figure 11.
Dimensions in Inches
Dimensions in Inches

FAAC S418 Specifications

General

Power Supply	230V AC (+6% -10%) 50Hz
Motor Voltage	24V DC
Operating Temperature	-20°C to +55°C
Protection Class	IP54
Limit Switch Type	Magnetic
Control Voltage	24V DC
Frequency of Use	Intensive use
