FAAC S418 Instruction Manual

6
FAAC Model S418 Swing Gate Operator
The FAAC Model S418 automated system for swing-leaf gates is an electro-mechanical operator which transmits its
movement to the gate leaf by means of a worm-screw system.
The irreversible system guarantees mechanical locking of the leaf when the motor is not operating. An easy-to-use
release device permits movement of the leaf in case of malfunction or a power outage.
Low-voltage operation permits backup batteries to be connected, thereby compensating for temporary power failures.
The adjustable rear bracket permits the operator to be installed on most existing gate types.

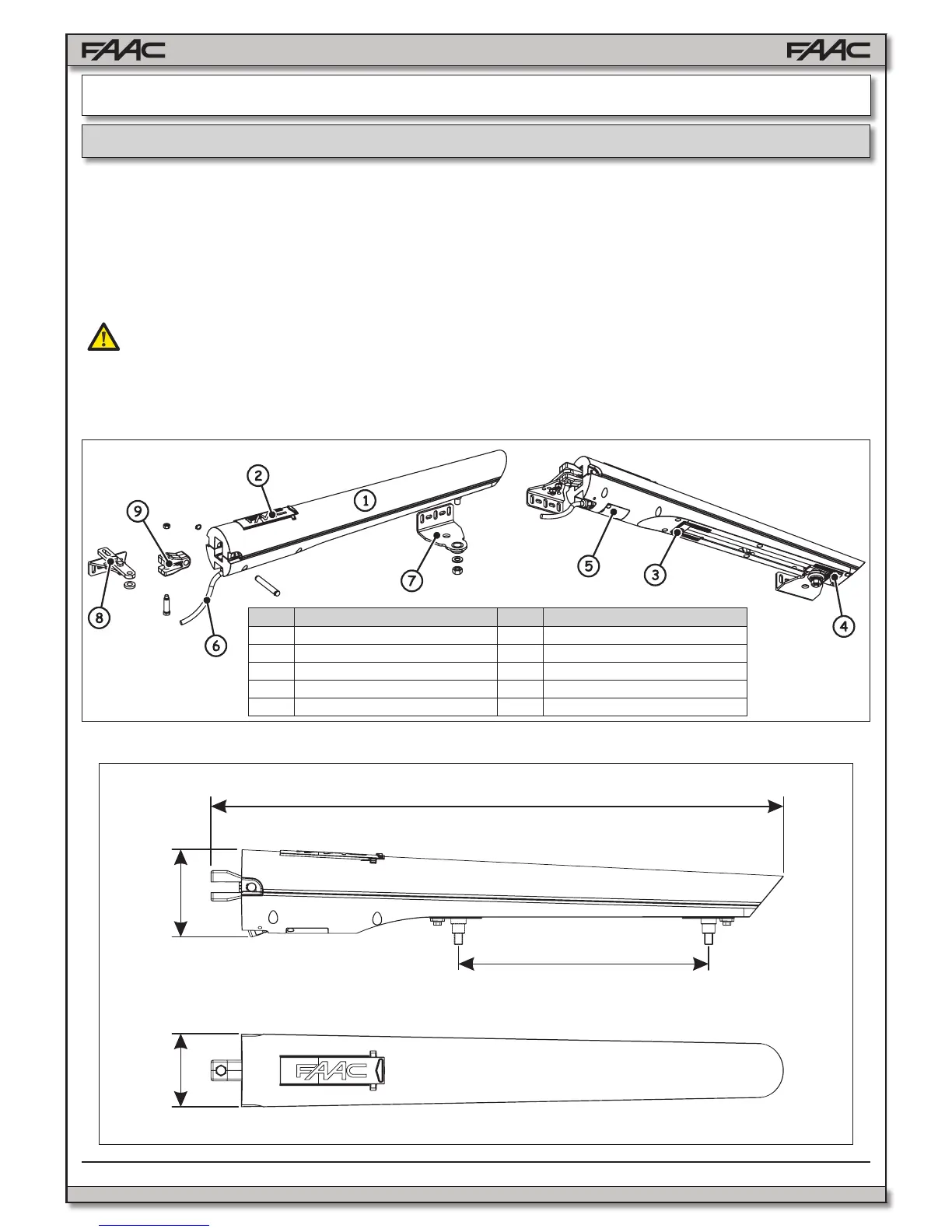

Fig. 1
Fig. 2
1. DESCRIPTION
FAAC Model S418 Swing Gate Operator
• Correct operation is only guaranteed when using authorized FAAC accessories, safety devices and control
units.
• The lack of a mechanical clutch device requires the use of a control unit with an adjustable electronic clutch
so as to guarantee functionality of the anti-crushing safety system.
• The S418 automated system has been designed and constructed to control vehicle access in residential
units. Any other use should be avoided.
1.1 DIMENSIONS
32 ½
5
13¾
4¼
*
Dimensions in Inches
Part Description Part Description
1 Operator 6 Power Cable
2 Release Device 7 Front Bracket
3 Mechanical Stop at Closing 8 Adjustable Rear Bracket
4 Mechanical Stop at Opening 9 Rear Fitting
5 Cable Cover

FAAC S418 Specifications

General

Power Supply	230V AC (+6% -10%) 50Hz
Motor Voltage	24V DC
Operating Temperature	-20°C to +55°C
Protection Class	IP54
Limit Switch Type	Magnetic
Control Voltage	24V DC
Frequency of Use	Intensive use
