FAAC S418 Instruction Manual

12
FAAC Model S418 Swing Gate Operator
3.5 WIRING THE OPERATOR
The operator is supplied with the cable already
connected. If the cable has to be replaced, install a cable
rated for outdoor use.
3.6 MECHANICAL STOPS
The S418 operator is supplied with mechanical stops
on opening and closing as standard. These may be
used in place of mechanical stop-points for the leaf. For
adjustment of the stops, proceed as follows:
3.6.1 Mechanical Stop at Opening
1. Prepare the operator for manual operation, see
Section 5.
2. Manually move the leaf into its opening position.
3. Loosen the securing screw, Figure 19 Ref. 1. The
screw does not need to be completely removed.

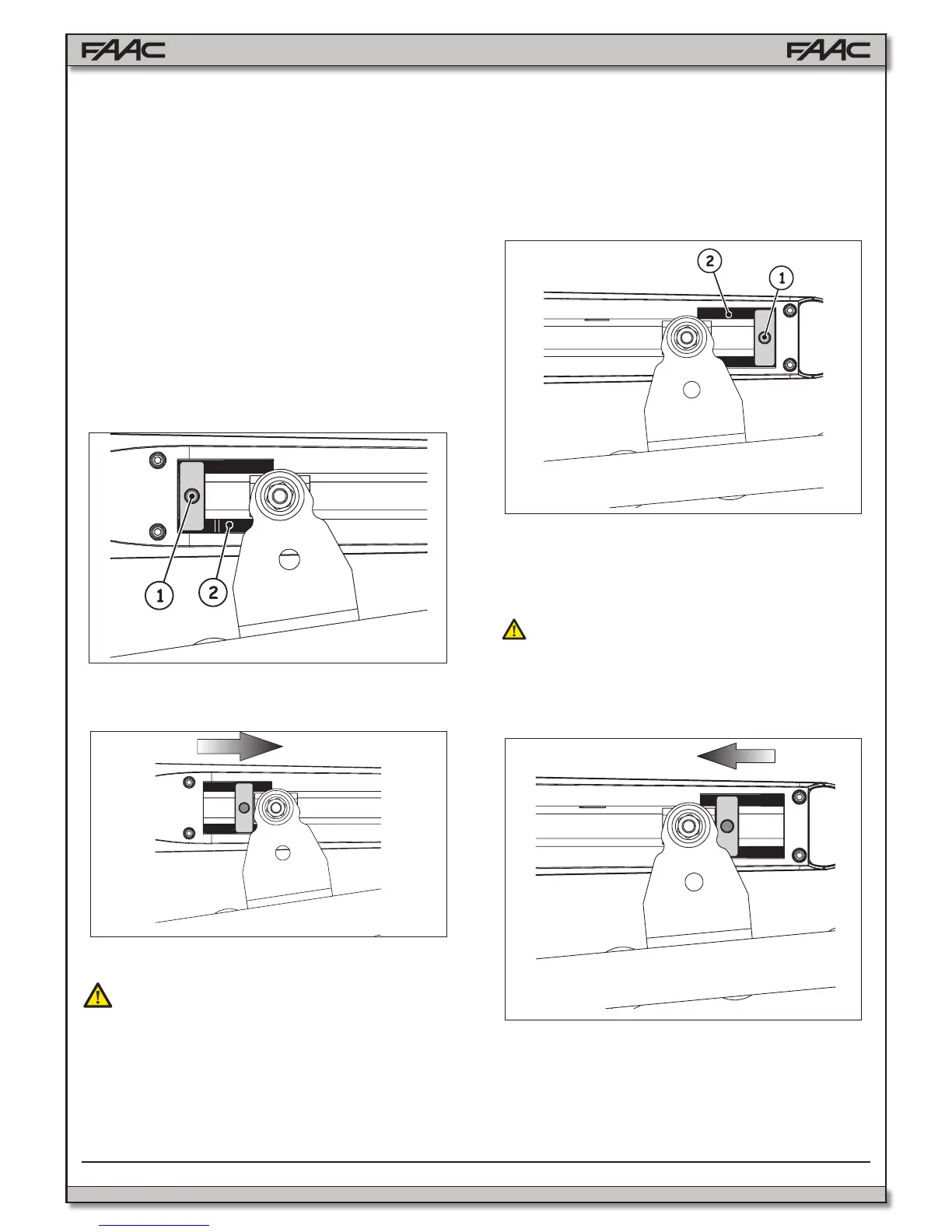

Fig. 19
Fig. 20
Fig. 21
Fig. 22
5. Tighten the securing screw once again.
The mechanical stop is coupled to a toothed
sector, Figure 19 Ref. 2.
In the case of obstructions during movement,
check that the coupling is free. DO NOT FORCE
IT.
4. Move the mechanical stop until it is close to the
front tting, as indicated in Figure 20.
3.6.2 Mechanical Stop at Closing
1. Prepare the operator for manual operation, see
Section 5.
2. Manually move the leaf into its closing position.
3. Loosen the securing screw, Figure 21 Ref. 1. The
screw does not need to be completely removed.
4. Move the mechanical stop until it is close to the
front tting, as indicated in Figure 22.
5. Tighten the securing screw once again.
The mechanical stop is coupled to a toothed
sector, Figure 21 Ref. 2.
In the case of obstructions during movement,
check that the coupling is free. DO NOT FORCE
IT.

FAAC S418 Specifications

General

Power Supply	230V AC (+6% -10%) 50Hz
Motor Voltage	24V DC
Operating Temperature	-20°C to +55°C
Protection Class	IP54
Limit Switch Type	Magnetic
Control Voltage	24V DC
Frequency of Use	Intensive use
