INSTALLATION

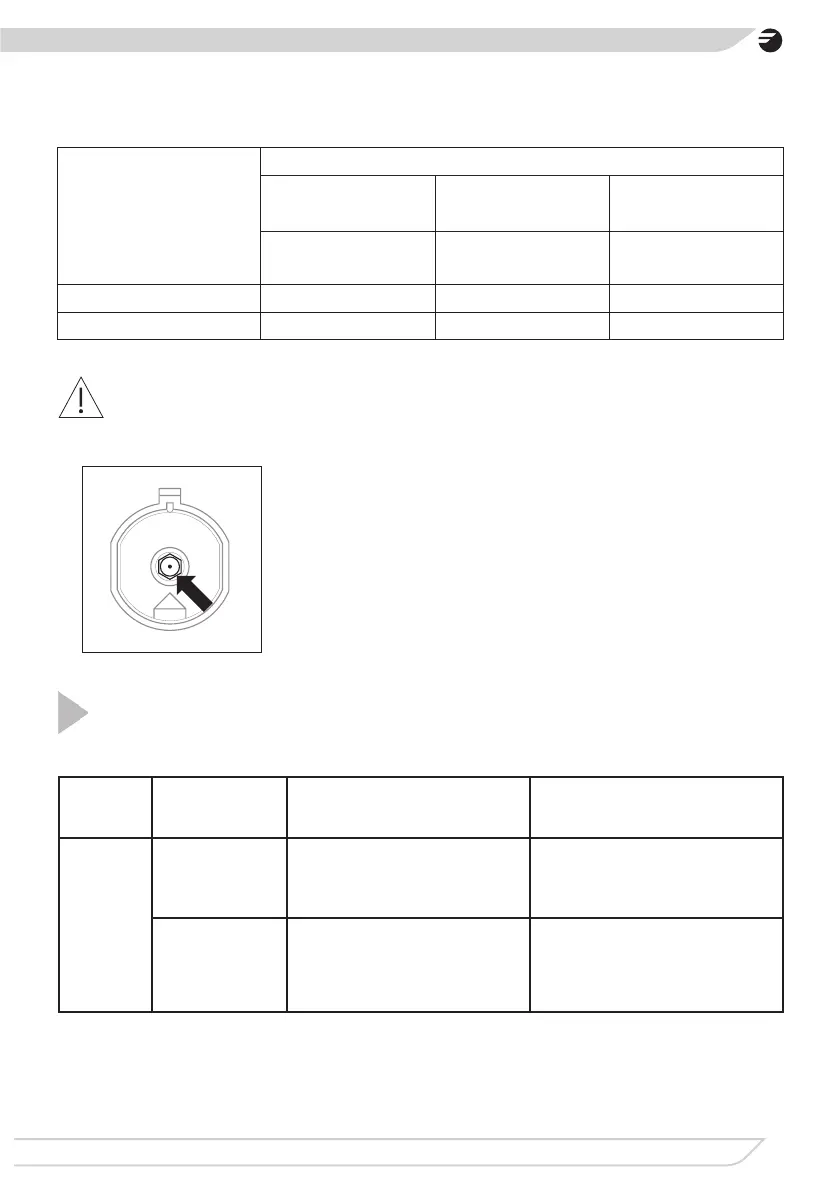

Replace burner nozzle: unscrew the nozzle using a special wrench
no. 7 and replace with a new one suitable for the new gas type
(see table above).
Once converted, place a sticker indicating the gas type for which the appliance
is intended.
Burners
Flame
Convert the appliance from
LPG to natural gas
Top burners
Full ame
Replace burner nozzle with the
appropriate nozzle according
to the table.
Economic
ame
Gently loosen the adjusting screw
and adjust the ame.
Convert the appliance from
natural gas to LPG
Replace burner nozzle with the
appropriate nozzle according
to the table.
Slightly tighten the adjusting
screw, check the ame stability
and size.
Adjust the valves for a reduced ow.
SOMIPRESS burner. (indicated "SOMIPRESS." on the burner body)
Type of gas
Burner
auxiliary
gas injector diameter
[mm]
medium
gas injector diameter [mm]
large
gas injector diameter [mm]
nominal
thermal power
1,00 kW
nominal
thermal power
1,80 kW
nominal
thermal power
2,80 kW
G20 2H 20 mbar 0,72 0,98 1,17
G30/31 3+ 28-30/37 mbar 0,52 0,67 0,83
