Fagor CNC 8055 T Examples Manual

8 EXAMPLE MANUAL

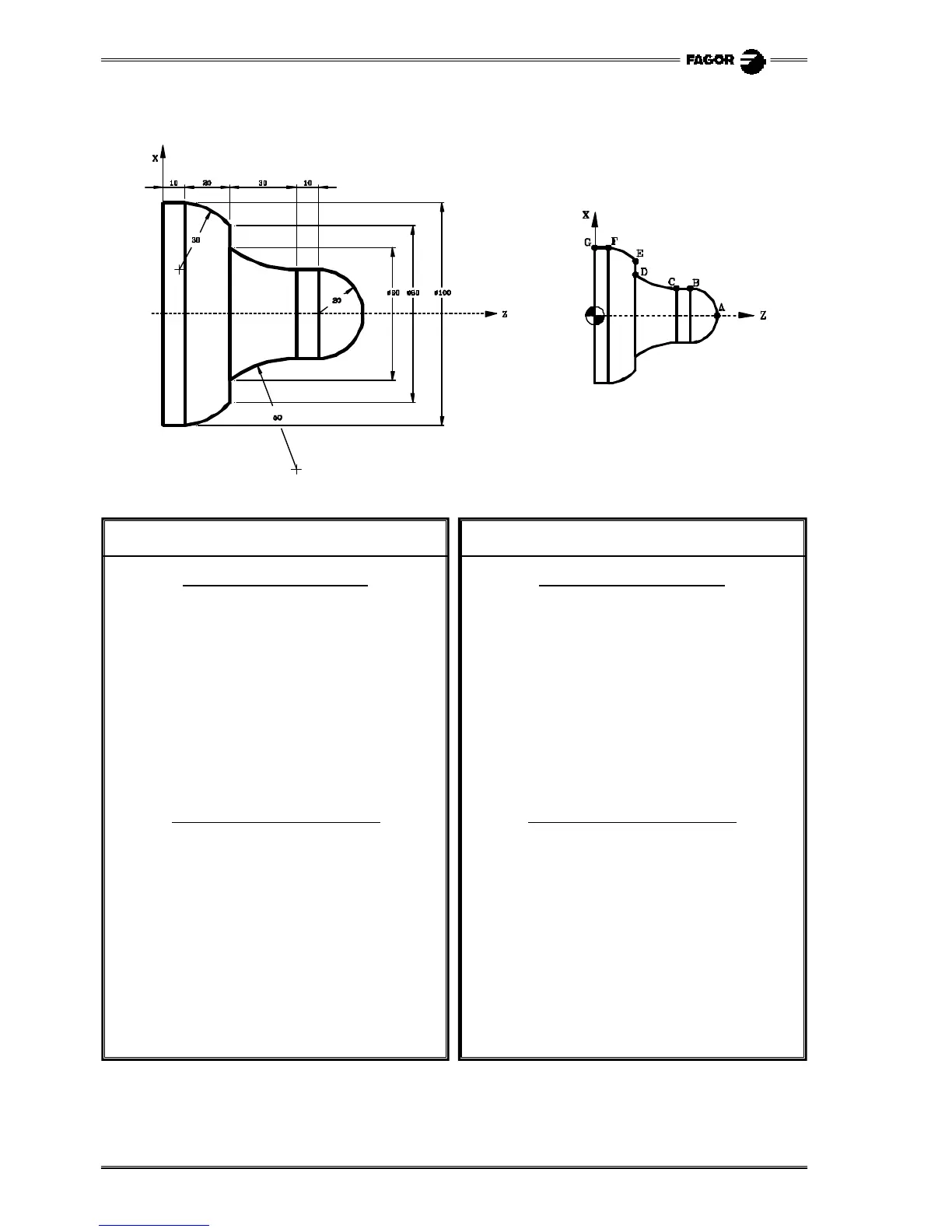

Programming of arcs (G02/G03). (Programming in radius)
Programming the arc center
Absolute coordinates (G90)
G90 G95 G96 F0.15 S180 T2 D2 M4
G0 X60 Z120
G1 X0 Z90 .................................. Point A
G3 X20 Z70 I0 K-20 ................ Section A-B
G1 Z60 ........................................ Section B-C
G2 X30 Z30 I50 K0 .................. Section C-D
G1 X40 ........................................ Section D-E
G3 X50 Z10 I-19.9 K-22.45 .. Section E-F
G1 Z0 .......................................... Section F-G
G0 X60 Z120
M30
Incremental coordinates (G91)
G90 G95 G96 F0.15 S180 T2 D2 M4
G0 X60 Z120
G1 X0 Z90 ................................... Point A
G91 G3 X20 Z-20 I0 K-20 ....... Section A-B
G1 Z-10 ....................................... Section B-C
G2 X10 Z-30 I50 K0 ................. Section C-D
G1 X10 ......................................... Section D-E
G3 X10 Z-20 I-19.9 K-22.45 . Section E-F
G1 Z-10 ....................................... Section F-G
G0 G90 X60 Z120
M30
Programming the arc radius
Absolute coordinates (G90)
G90 G95 G96 F0.15 S180 T2 D2 M4
G0 X60 Z120
G1 X0 Z90 .................................. Point A
G3 X20 Z70 R20 ........................ Section A-B
G1 Z60 ........................................ Section B-C
G2 X30 Z30 R50 ........................ Section C-D
G1 X40 ........................................ Section D-E
G3 X50 Z10 R30 ........................ Section E-F
G1 Z0 .......................................... Section F-G
G0 X60 Z120
M30
Incremental coordinates (G91)
G90 G95 G96 F0.15 S180 T2 D2 M4
G0 X60 Z120
G1 X0 Z90 ................................... Point A
G91 G3 X20 Z-20 R20 ............... Section A-B
G1 Z-10 ....................................... Section B-C
G2 X10 Z-30 R50 ....................... Section C-D
G1 X10 ......................................... Section D-E
G3 X10 Z-20 R30 ....................... Section E-F
G1 Z-10 ....................................... Section F-G
G0 G90 X60 Z120
M30
