Fagor CNC 8055 T - Outside Pattern Repeat. Inside Grooving and Threading

28 EXAMPLE MANUAL

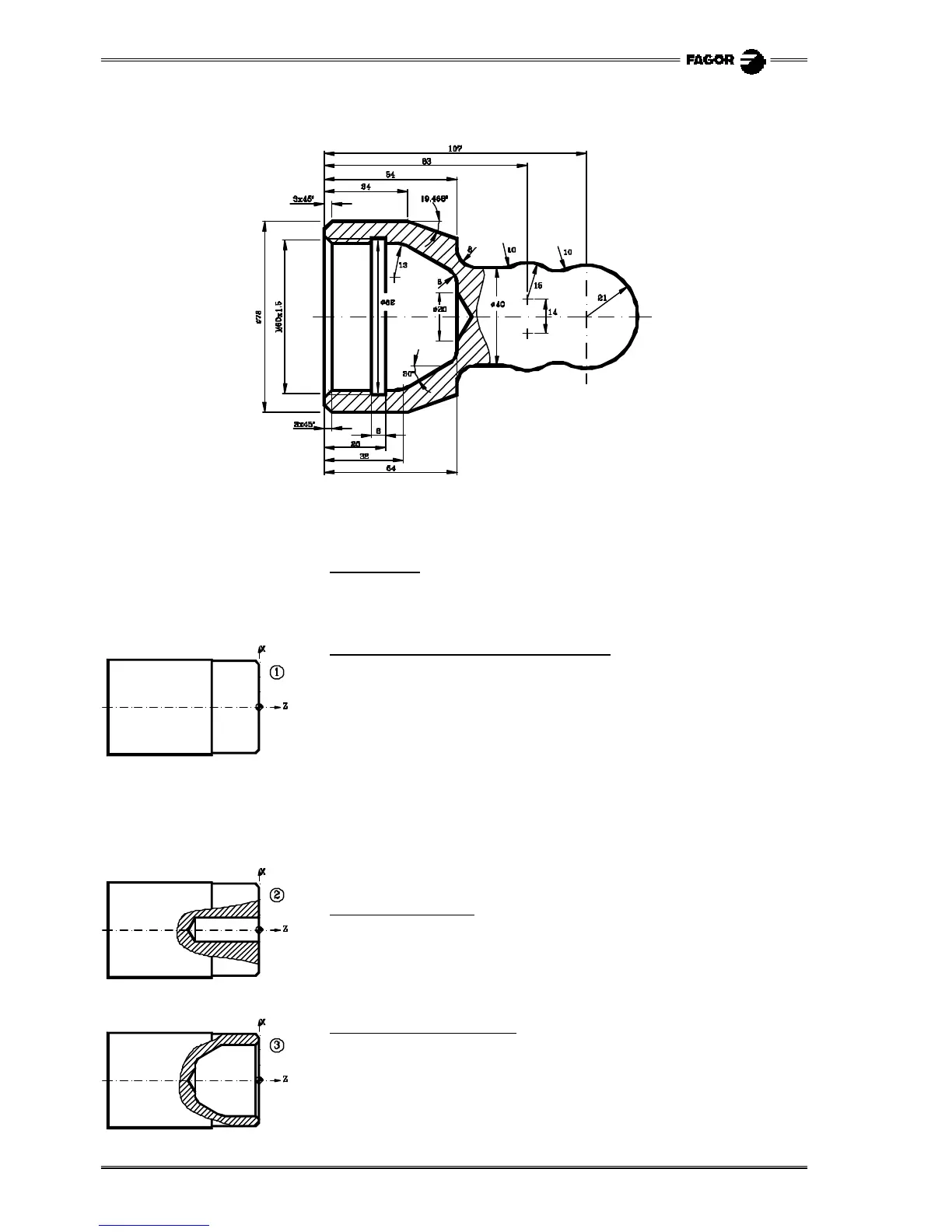

Outside pattern repeat. Inside grooving and threading.
First fixture:
Set part zero
(ORGX54=0, ORGZ54=130)
G54
G92 S2200
Operation 1 (Facing and outside turning)
G95 G96 F0.2 S180 M4
G0 Z150
T2 D2
G0 X90 Z20
G1 X78 Z5
G1 Z-36 F200
G1 X85
G0 Z0
G1 X-0.4
G1 Z5
G0 G42 X70 Z1
G1 X80 Z-4
G0 G40 X90 Z150
Operation 2 (Drilling)
G94 G97 F90 S600 M4
T9 D9
G0 X0 Z10
G83 X0 Z1 I59.773 B13 D2 K1 H0 C1
G0 Z150
Operation 3 (Inside profile)
G95 G96 F0.2 S120 M4
T8 D8
G0 X16 Z5
G68 X64.35 Z0 C1 L0.5 H0 S100 E110
Stock dimensions: Ø80x132mm
