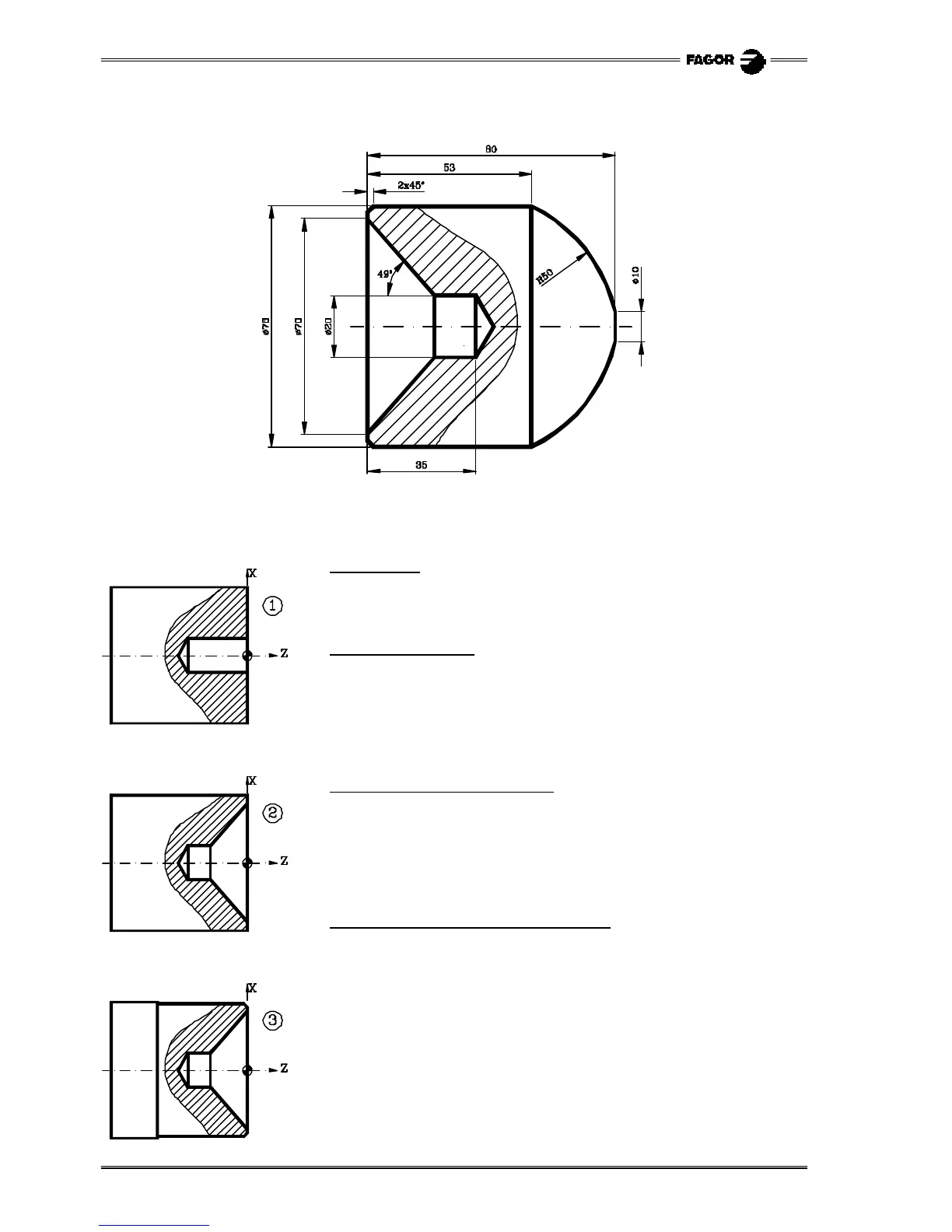

Inside straight facing and outside arc facing.
Stock dimensions: Ø80x84mm
First fixture:
Set part zero
(ORGX54=0, ORGZ54=82)
G54
G92 S2200
Operation 1 (Drilling)
G95 G97 F0.15 S600 M4
Z150
T9 D9
G0 X0 Z8
G83 X0 Z0 I40.773 B3 D7 K10 H0 C4
G0 Z150
Operation 2 (Inside taper facing)
G95 G96 F0.2 S100 M4
T8 D8
G0 X20 Z20
G1 G42 X18 Z5
G82 X20 Z-21.732 Q70 R0 C2 L0.2 M0.2 F0.15 H0.1
G0 G40 Z150
Operation 3 (Facing and outside turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 X78 Z5
G1 Z-40
G1 X85
G0 Z0
G1 X66
G1 Z5
G1 G42 X72 Z1
G1 X80 Z-3
G0 G40 Z150
