E
XAMPLE
MANUAL
15
Second
fixture:
Set new part zero
(MSG “* NEW FIXTURE - REVERSE PART *”)
M0 M5
(MSG “”)
(ORGX54=0, ORGZ54=65)
G54
G92 S2200

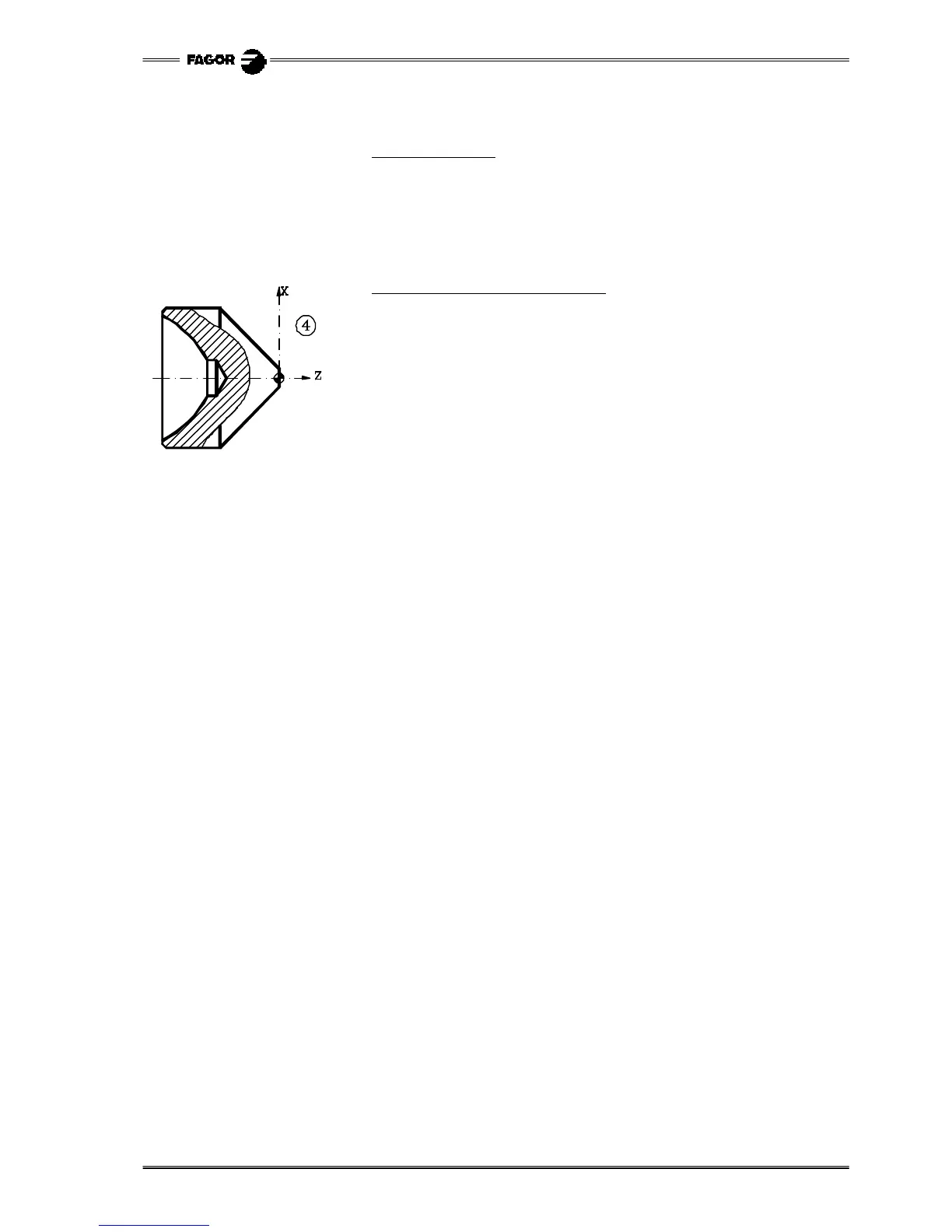

Operation 4
(Outside taper facing)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 G41 X83 Z5
G82 X78 Z-33 Q10 R0 C2 L0.3 M0.3 H0.1
G0 G40 X14 Z0
G1 X-0.4
G0 Z150
M30
17
19
