Fagor CNC 8055 T Examples Manual

14 EXAMPLE MANUAL

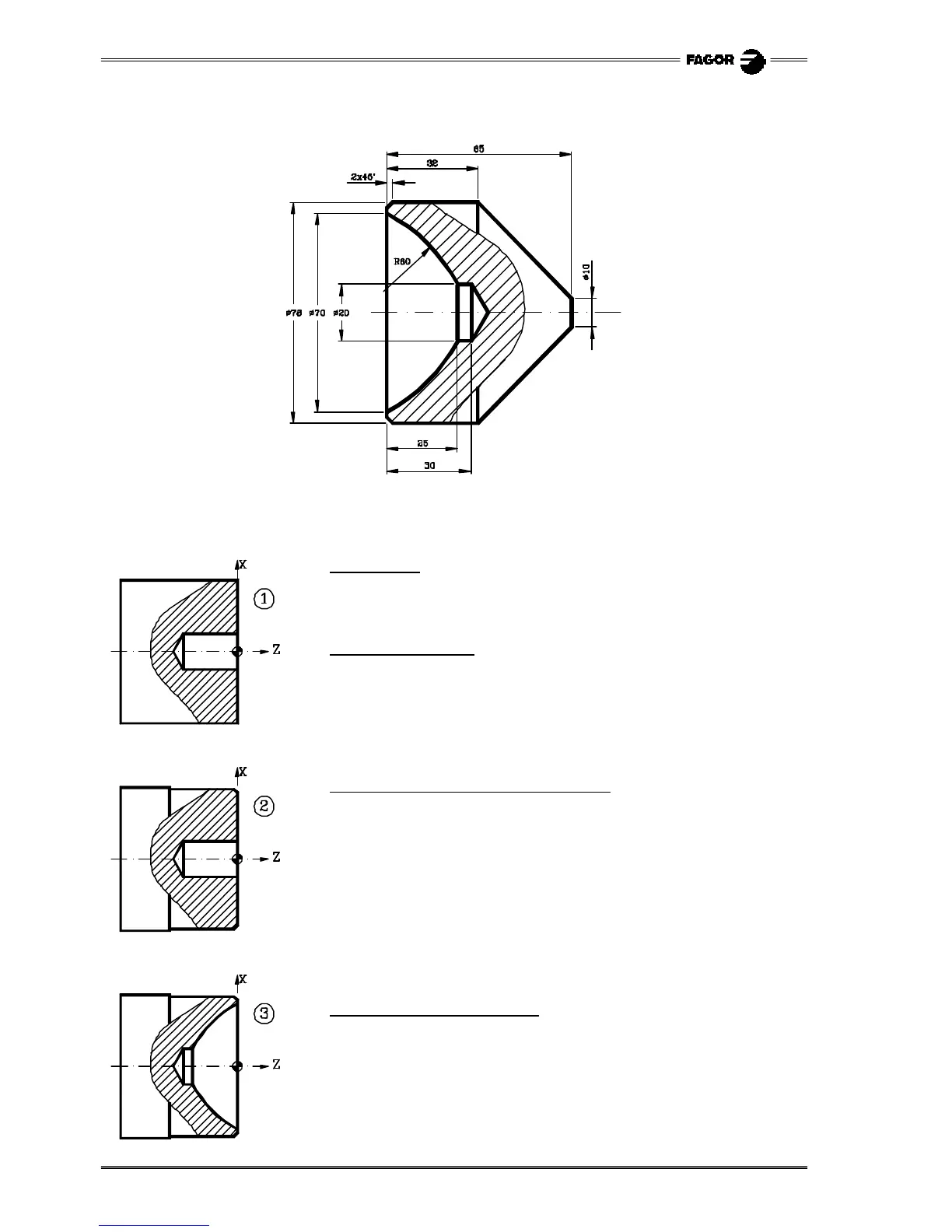

Inside arc facing and outside straight turning.
First fixture:
Set part zero
(ORGX54=0, ORGZ54=67)
G54
G92 S2200
Operation 1 (Drilling)
G94 G97 F90 S600 M4
Z150
T9 D9
G0 X0 Z8
G83 X0 Z0 I38.773 B3 D7 K0 H0 C4
G0 Z150
Operation 2 (Facing and outside turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 X85 Z0
G1 X18
G1 Z5
G0 G42 X72 Z1
G1 X78 Z-2
Z-40
X85
G0 Z150
Operation 3 (Inside arc facing)
G95 G96 F0.2 S100 M4
T8 D8
G0 X20 Z20
G1 G42 X17 Z2
G85 X20 Z-25 Q70 R0 C1.4 L0.3 M0.3 H0.1 I-28.043 K53.043
G0 G40 Z150
Stock dimensions: Ø80x69mm.
