18
E
XAMPLE
MANUAL

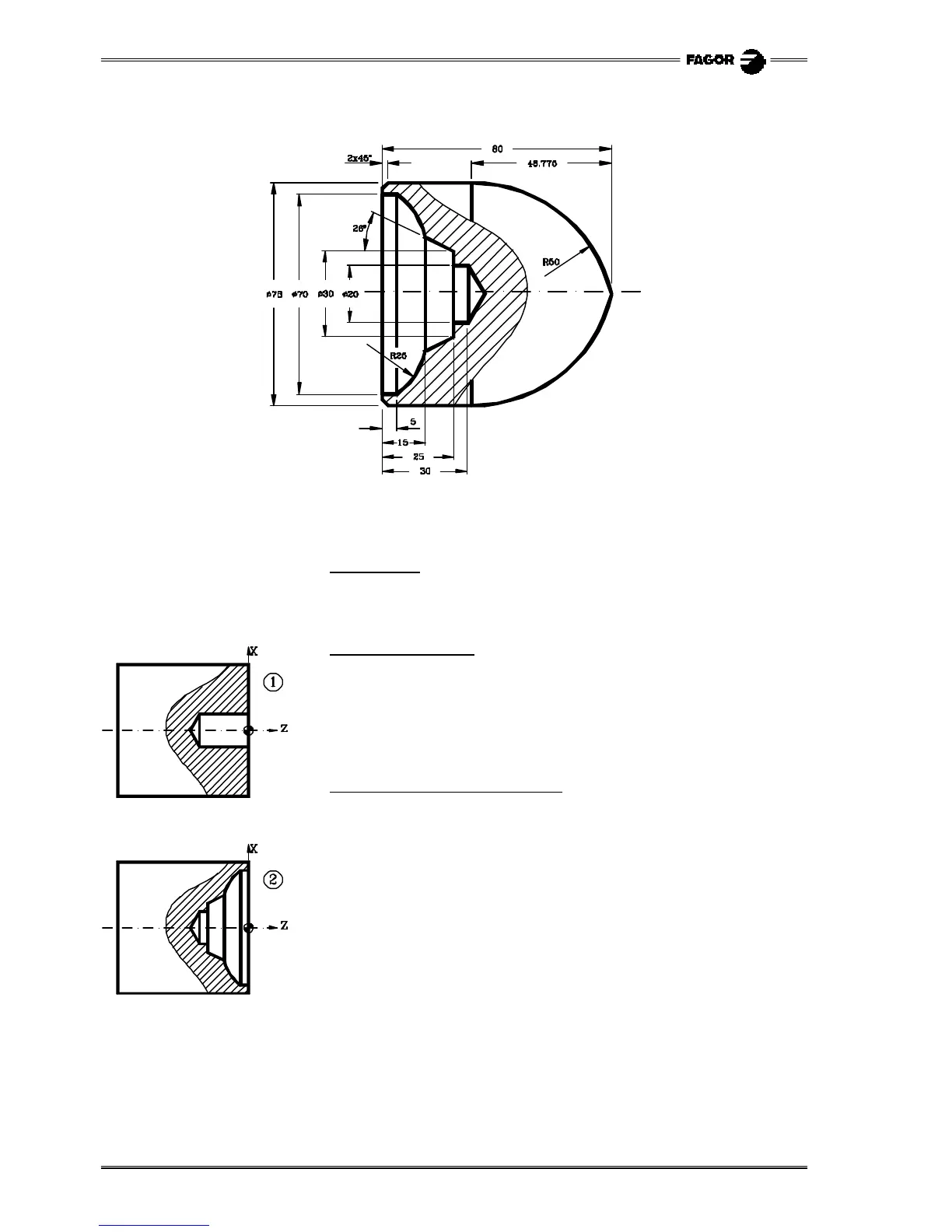

Inside
roughing
on
the
Z
axis
and
outside
arc
turning.
First
fixture:
Set part zero
(ORGX54=0, ORGZ54=82)
G54
G92 S2200
Operation 1
(Drilling)
G94 G97 F90 S600 T9 M4
Z150
T9 D9
G0 X0 Z8
G83 X0 Z0 I35.773 B5 D5 K15 H0 C1.5
G0 Z150
Operation 2
(Inside profile
facing)
G95 G96 F0.2 S100 M4
T8 D8
G0 X20 Z20
G1 X16 Z5
G69 X20 Z-25 C1.5 L0.3 H0.1 S100 E110
(GOTO N120)
N100 G1 X30 Z-25
X39.755 Z-15
G2 X70 Z-5 I-5.29 K24.434
N110 G1 X70 Z4
N120 G0 Z150
Stock dimensions: Ø80x84mm
20
22
Table of Contents
Programming Examples: General Examples
8
Table of Contents
3
Tools
4
Tool Calibration
5
General Examples
8
Zero Offset
9
Programming in Absolute (G90) and Incremental (G91) Coordinates
10
Programming of Arcs (G02/G03). (Programming in Radius)
11
Programming of Arcs (G02/G03). (Programming in Diameters)
12
Tangential Entry/Exit (G37/G38) and Corner Rounding(G36) with Tool Radius Compensation (G40/G41/G42)
13
Programming Examples: Canned Cycles
14
Canned Cycles
14
Inside Turning of Arcs and Outside Turning of Straight Sections
15
Inside Arc Facing and Outside Straight Turning
17
Inside Straight Facing and Outside Arc Facing
19
Inside Roughing on the Z Axis and Outside Arc Turning
21
Inside Straight Turning and Outside Roughing on the Z Axis
23
Inside and Outside Roughing on the X Axis
25
Inside and Outside Taper Threading
27
Inside and Outside Roughing on X. Outside Grooving and Threading
29
Outside Pattern Repeat. Inside Grooving and Threading
31
Inside and Outside Roughing on the X Axis
33
C» Axis Programming
36
Profile Editor
40
User Screen Customizing Programs
46
