E
XAMPLE
MANUAL
19

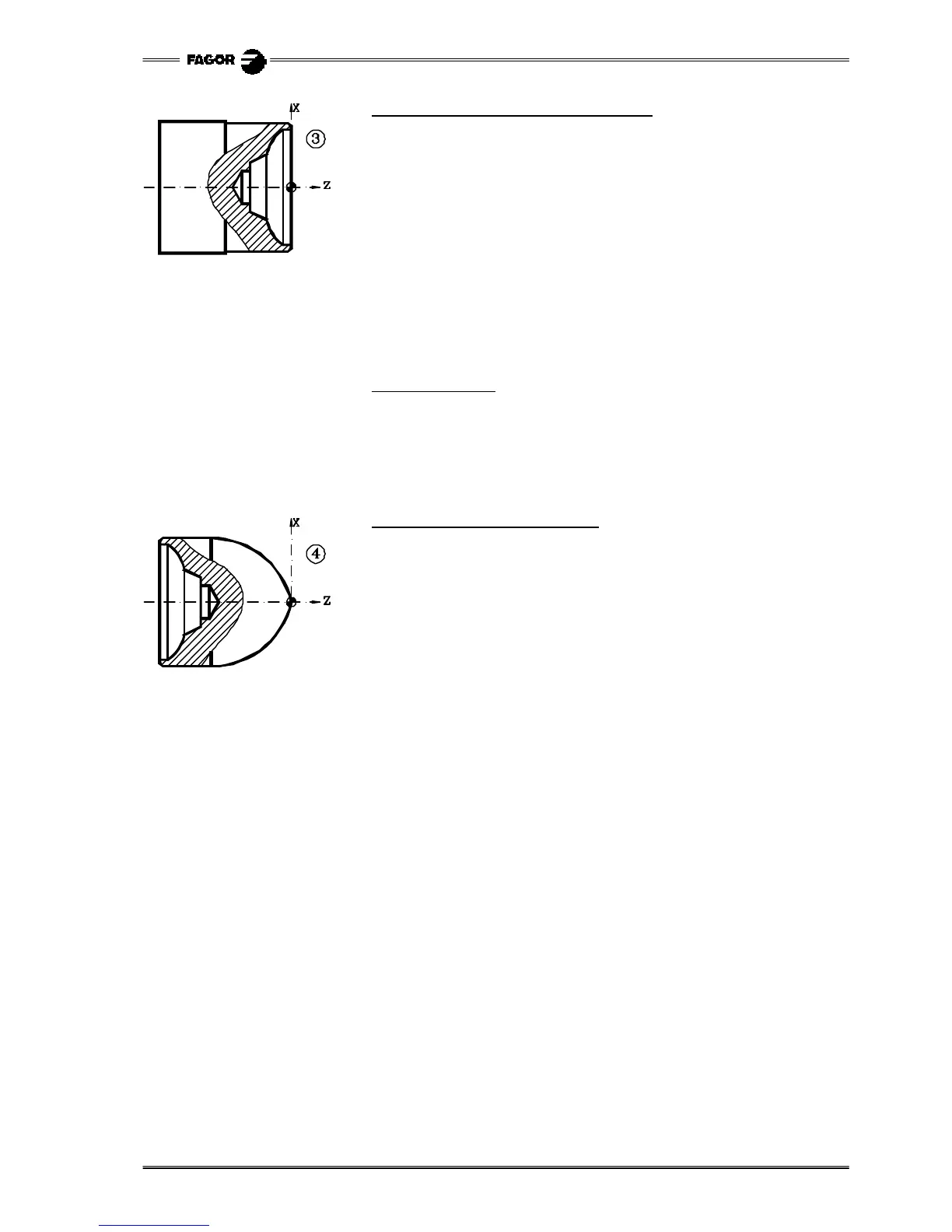

Operation 3
(Facing
and outside
turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 X78 Z5
G1 Z-40
G1 X85
G0 Z0
G1 X66
G1 Z5
G1 G42 X72 Z1
G1 X80 Z-3
G0 G40 Z150
Second
fixture:
Set new part zero
(MSG “* NEW FIXTURE - REVERSE PART *”)
M0 M5
(MSG “”)
(ORGX54=0, ORGZ54=80)
G54
G92 S2200
Operation 4
(Outside arc
turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 G42 X84 Z5
G84 X0 Z0 Q78 R-48.775 C2 L0.3 M0.3 H0.1 I-11 K-48.775
G0 G40 Z150
M30
21
23
Table of Contents
Programming Examples: General Examples
8
Table of Contents
3
Tools
4
Tool Calibration
5
General Examples
8
Zero Offset
9
Programming in Absolute (G90) and Incremental (G91) Coordinates
10
Programming of Arcs (G02/G03). (Programming in Radius)
11
Programming of Arcs (G02/G03). (Programming in Diameters)
12
Tangential Entry/Exit (G37/G38) and Corner Rounding(G36) with Tool Radius Compensation (G40/G41/G42)
13
Programming Examples: Canned Cycles
14
Canned Cycles
14
Inside Turning of Arcs and Outside Turning of Straight Sections
15
Inside Arc Facing and Outside Straight Turning
17
Inside Straight Facing and Outside Arc Facing
19
Inside Roughing on the Z Axis and Outside Arc Turning
21
Inside Straight Turning and Outside Roughing on the Z Axis
23
Inside and Outside Roughing on the X Axis
25
Inside and Outside Taper Threading
27
Inside and Outside Roughing on X. Outside Grooving and Threading
29
Outside Pattern Repeat. Inside Grooving and Threading
31
Inside and Outside Roughing on the X Axis
33
C» Axis Programming
36
Profile Editor
40
User Screen Customizing Programs
46
