12 EXAMPLE MANUAL

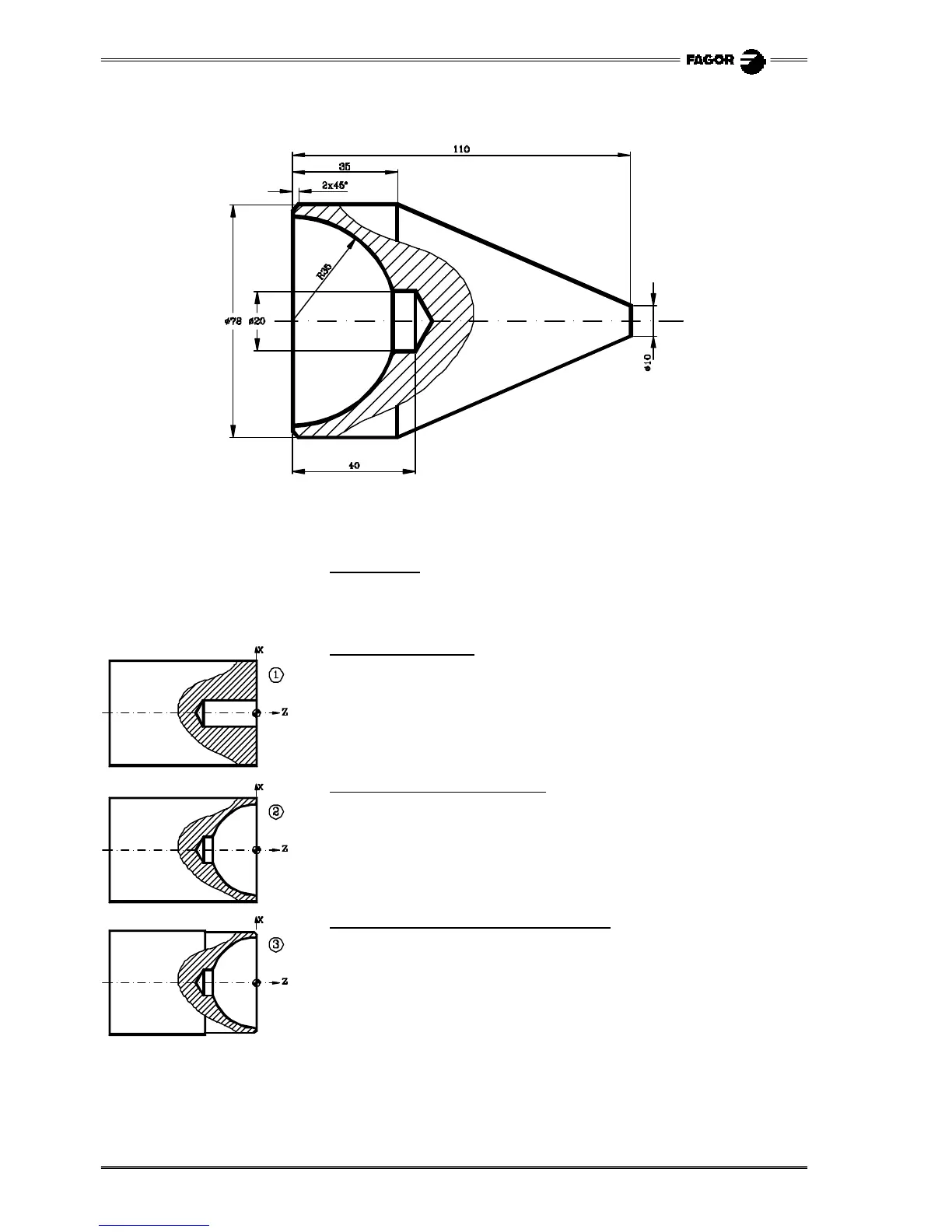

Inside turning of arcs and outside turning of straight sections.
First fixture:
Set part zero
(ORGX54=0, ORGZ54=112)
G54
G92 S2200
Operation 1 (Drilling)
G94 G97 F90 S600 M4
Z150
T9 D9
G0 X0 Z8
G83 X0 Z0 I45.773 B9 D4 K0 H0 C1
G0 Z150
Operation 2 (Inside arc turning)
G95 G96 F0.2 S120 M4
T8 D8
G0 X20 Z20
G1 G41 X18 Z5
G84 X70 Z0 Q20 R-33.541 C2 L0.3 M0.3 H0.1 I-35 K0
G0 G40 Z150
Operation 3 (Facing and outside turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 X78 Z5
G1 Z-40
G1 X85
G0 Z0
G1 X66
G1 Z5
G1 G42 X72 Z1
G1 X80 Z-3
G0 G40 Z150
Stock dimensions: Ø80x114mm
