Fagor CNC 8055 T - Inside and Outside Taper Threading

24 EXAMPLE MANUAL

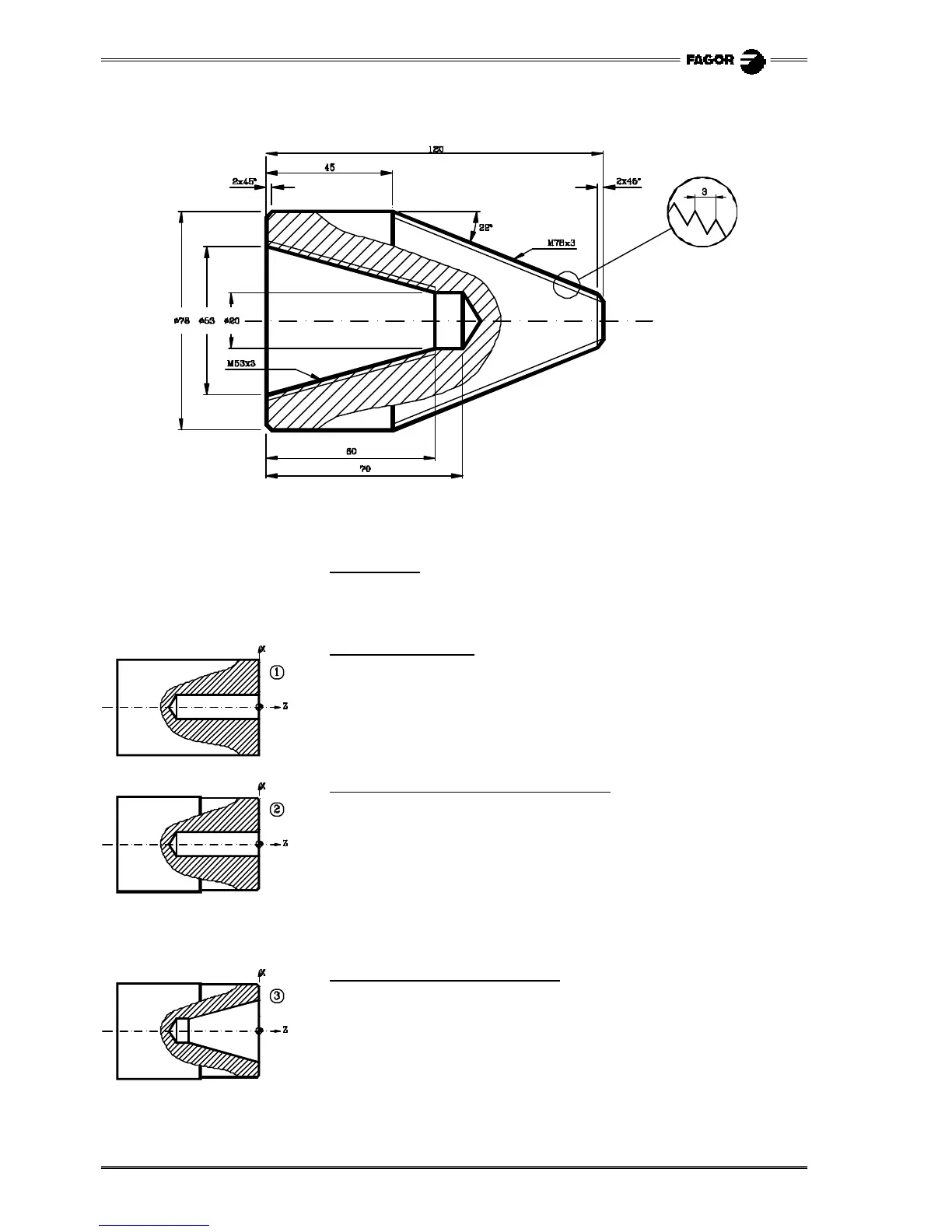

Inside and outside taper threading.
First fixture:
Set part zero
(ORGX54=0, ORGZ54=122)
G54
G92 S2200
Operation 1 (Drilling)
G95 G97 F0.15 S600 M4
G0 Z150
T9 D9
G0 X0 Z5
G83 X0 Z0 I75.773 B5 D5 K130 H0 C2
G0 Z150
Operation 2 (Facing and outside turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X78 Z5
G1 Z-50
X86
G0 G41 X79 Z-2.5
G1 X74 Z0
X16
G0 G40 Z150
Operation 3 (Inside taper turning)
G95 G96 F0.2 S120 M4
T8 D8
G0 X20 Z20
G1 G41 X16 Z1.5
G81 X53 Z0 Q20 R-60 C1.5 L0.3 M0.25 H0.1
G0 G40 Z150
Stock dimensions: Ø80x124mm
