EXAMPLE MANUAL 23

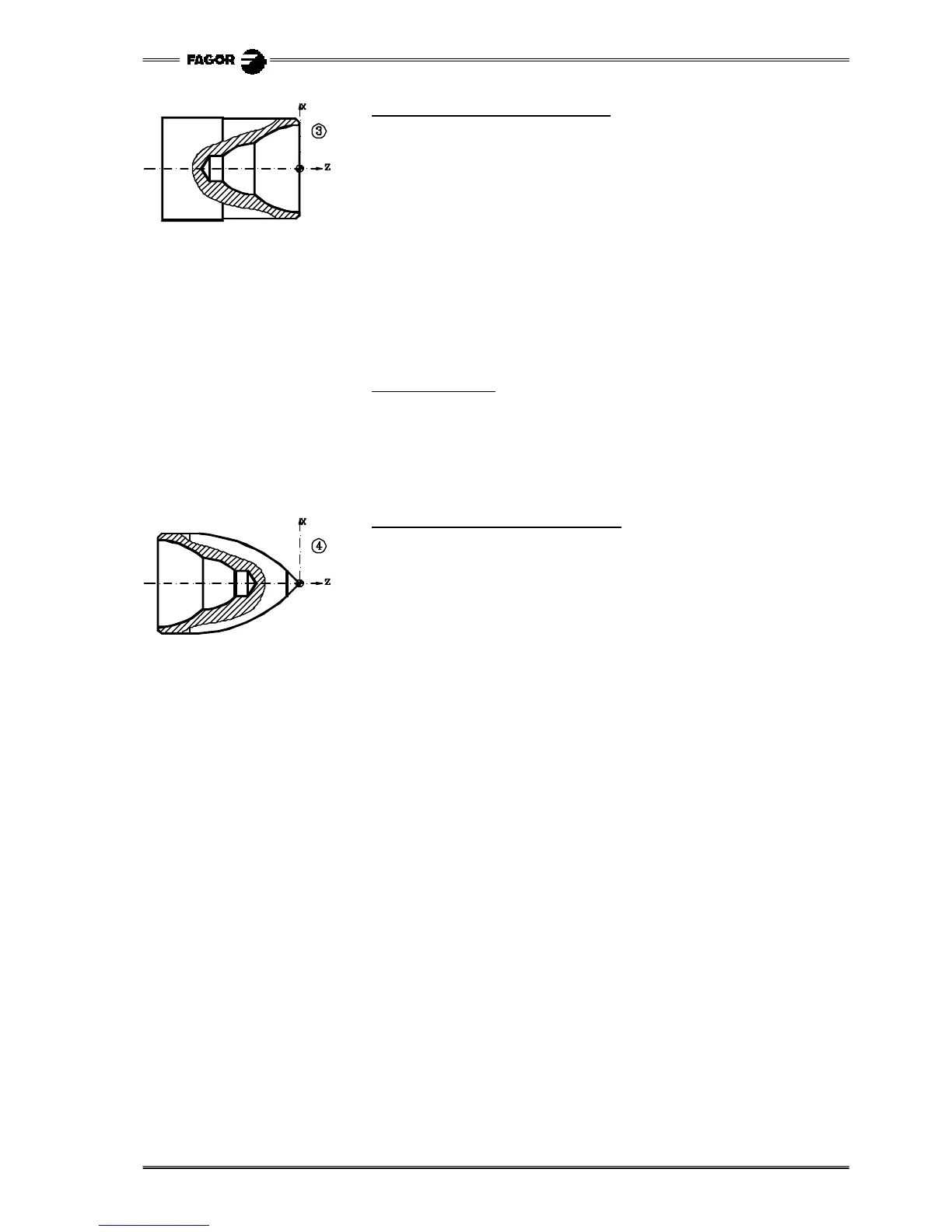

Operation 3 (Inside profile turning)
G95 G96 F0.2 S120 M4
T8 D8
G0 X18 Z20
G1 Z5
G68 X68 Z0 C1.5 L0.4 H0 S100 E110
G0 G41 X68 Z1
G5 G1 Z0 F0.1
N100 G3 X40 Z-35 I-53.985 K1.293
N110 G3 X20 Z-60 R36
G1 X18
G1 Z5
G0 G40 G7 Z150
Second fixture:
Set new part zero
(MSG “* NEW FIXTURE - REVERSE PART *”)
M0 M5
(MSG “”)
(ORGX54=0, ORGZ54=110)
G54
G92 S2200
Operation 4 (Outside profile turning)
G95 G96 F0.2 S180 M4
T2 D2
G0 X85 Z20
G1 Z5
G68 X0 Z0 C1.5 L0.4 H0 S150 E160
G0 G42 X0 Z10
G1 G5 Z0 F0.1
N150 G1 X20 Z-10
N160 G3 X78 Z-85.2 I-83 K-75.2
G1 X80
G0 G40 G7 Z150
M30
