Fagor CNC 8055 T Examples Manual

EXAMPLE MANUAL 25

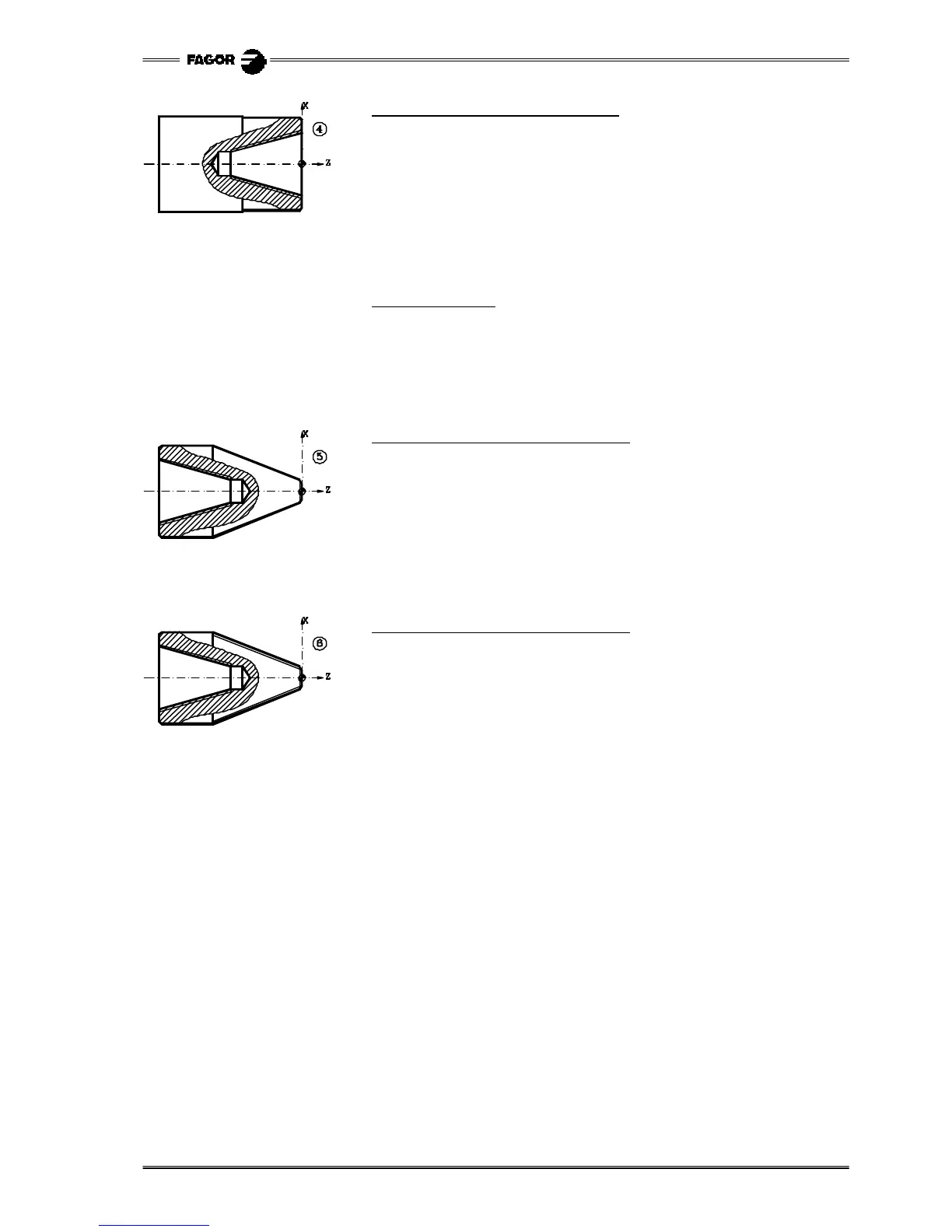

Operation 4 (Inside taper threading)
G95 G96 F0.15 S60 M4
T10 D10
G0 X20 Z20
G1 X16 Z1.5
G86 X53 Z0 Q20 R-60 I-1 B0.4 D-2 L0 C-3 J5 A29.5
G0 Z150
Second fixture:
Set new part zero
(MSG “* NEW FIXTURE - REVERSE PART *”)
M0 M5
(MSG “”)
(ORGX54=0, ORGZ54=120)
G54
G92 S2200
Operation 5 (Outside taper threading)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G1 G42 X85 Z5
G81 X17.396 Z0 Q78 R-75 C2 L0.3 M0.3 H0.1
G0 G40 X20.396 Z0
G1 X-0.4
G1 Z5
G0 Z150
Operation 6 (Outside taper threading)
G95 G96 F0.15 S60 M4
T11 D11
G0 X80 Z1.5
G86 X17.396 Z0 Q78 R-75 I2 B.4 D-2 L0 C-3 J5 A29.5
G0 Z150
M30
