EXAMPLE MANUAL 17
Second fixture:
Set new part zero
(MSG “* NEW FIXTURE - REVERSE PART *”)
M0 M5
(MSG “”)
(ORGX54=0, ORGZ54=80)
G54
G92 S2200

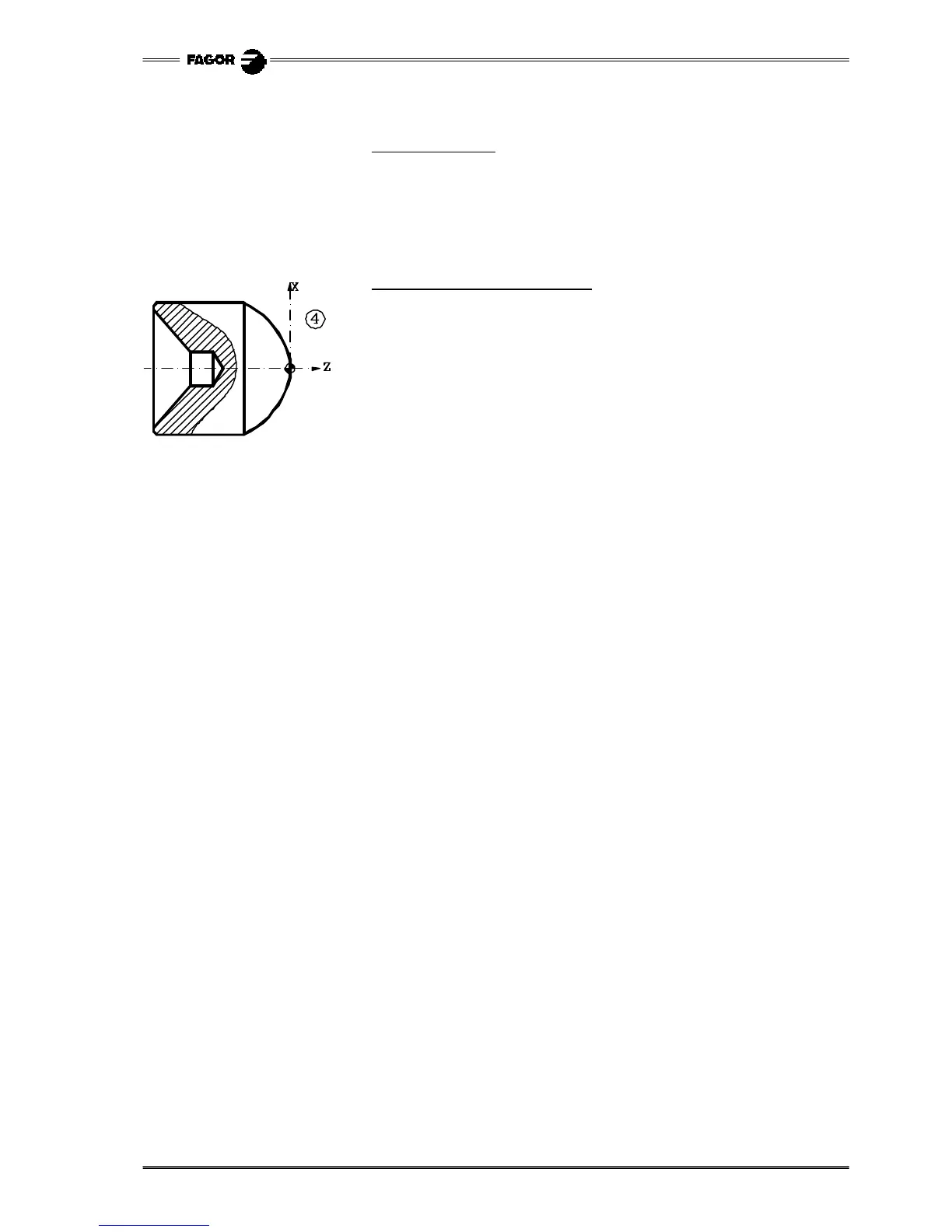

Operation 4 (Outside arc facing)
G95 G96 F0.2 S180 M4
T2 D2
G0 X90 Z20
G41 X84 Z5
G85 X78 Z-27 Q10 R0 C1.5 L0.3 M0.3 H0.1 I-45.011 K-21.772
G0 G40 X14 Z0
G1 X-0.4 F0.2
G0 Z150
M30
