46 EXAMPLE MANUAL

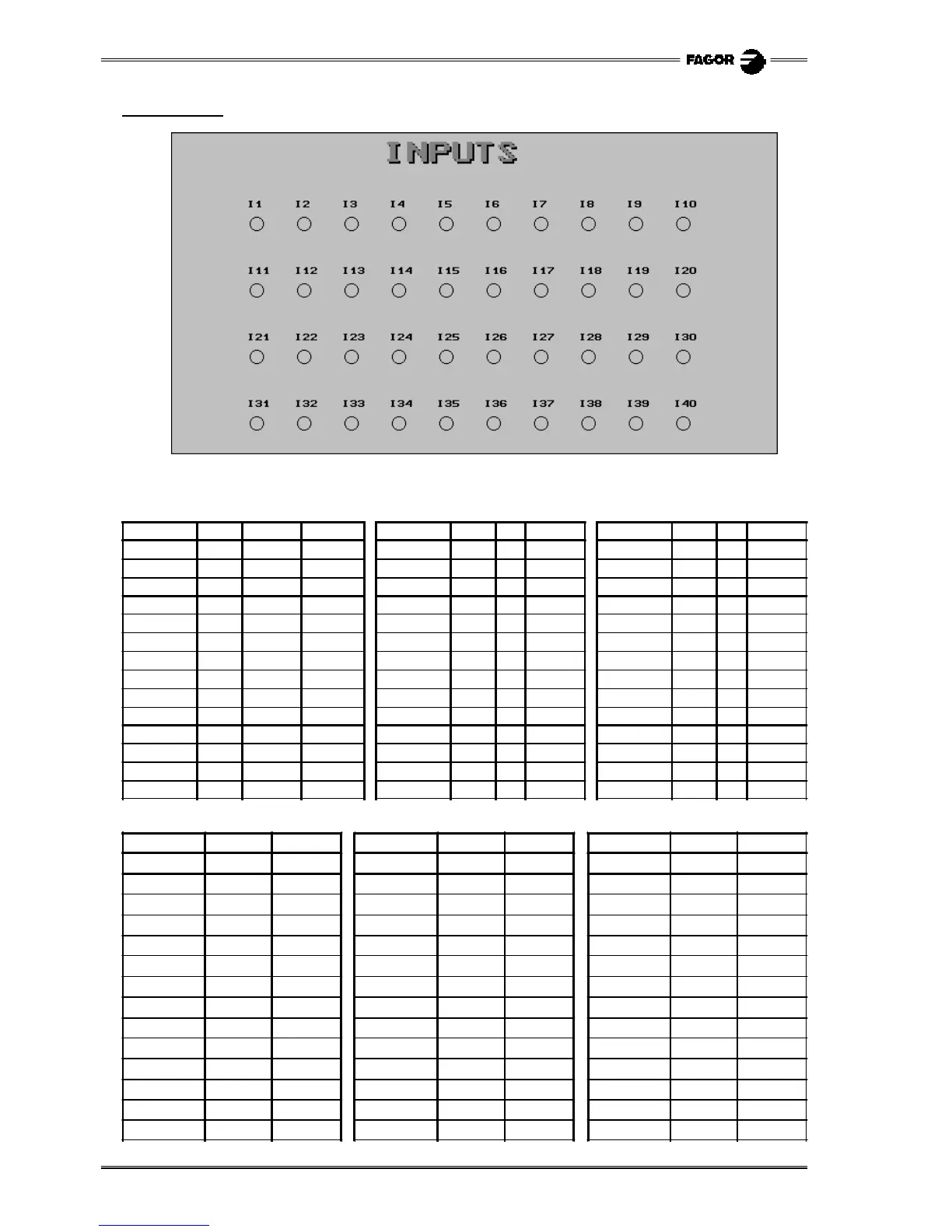

Editing page 2

Access the screen customizing mode and select: [Utilities] [Edit] [Page] 2 [Enter]

Select background color: Navy blue

Edit the following texts:

Edit the following circles (unfilled) with white main color and line type: Fine solid.

Main color Size Text Position Main color Size Text Position Main color Size Text Position

White Large INPUTS X226 Y10 White Small I13 X180 Y140 White Small I27 X380 Y210

Red Large INPUTS X224 Y8 White Small I14 X230 Y140 White Small I28 X430 Y210

White Small I1 X80 Y70 White Small I15 X280 Y140 White Small I29 X480 Y210

White Small I2 X130 Y70 White Small I16 X330 Y140 White Small I30 X530 Y210

White Small I3 X180 Y70 White Small I17 X380 Y140 White Small I31 X80 Y280

White Small I4 X230 Y70 White Small I18 X430 Y140 White Small I32 X130 Y280

White Small I5 X280 Y70 White Small I19 X480 Y140 White Small I33 X180 Y280

White Small I6 X330 Y70 White Small I20 X530 Y140 White Small I34 X230 Y280

White Small I7 X380 Y70 White Small I21 X80 Y210 White Small I35 X280 Y280

White Small I8 X430 Y70 White Small I22 X130 Y210 White Small I36 X330 Y280

White Small I9 X480 Y70 White Small I23 X180 Y210 White Small I37 X380 Y280

White Small I10 X530 Y70 White Small I24 X230 Y210 White Small I38 X430 Y280

White Small I11 X80 Y140 White Small I25 X280 Y210 White Small I39 X480 Y280

White Small I12 X130 Y140 White Small I26 X330 Y210 White Small I40 X530 Y280

Main color Center Move to... Main color Center Move to... Main color Center Move to...

White X90 Y95 X90 Y102 White X290 Y165 X290 Y172 White X490 Y235 X490 Y242

White X140 Y95 X140 Y102 White X340 Y165 X340 Y172 White X540 Y235 X540 Y242

White X190 Y95 X190 Y102 White X390 Y165 X390 Y172 White X90 Y305 X90 Y312

White X240 Y95 X240 Y102 White X440 Y165 X440 Y172 White X140 Y305 X140 Y312

White X290 Y95 X290 Y102 White X490 Y165 X490 Y172 White X190 Y305 X190 Y312

White X340 Y95 X340 Y102 White X540 Y165 X540 Y172 White X240 Y305 X240 Y312

White X390 Y95 X390 Y102 White X90 Y235 X90 Y242 White X290 Y305 X290 Y312

White X440 Y95 X440 Y102 White X140 Y235 X140 Y242 White X340 Y305 X340 Y312

White X490 Y95 X490 Y102 White X190 Y235 X190 Y242 White X390 Y305 X390 Y312

White X540 Y95 X540 Y102 White X240 Y235 X240 Y242 White X440 Y305 X440 Y312

White X90 Y165 X90 Y172 White X290 Y235 X290 Y242 White X490 Y305 X490 Y312

White X140 Y165 X140 Y172 White X340 Y235 X340 Y242 White X540 Y305 X540 Y312

White X190 Y165 X190 Y172 White X390 Y235 X390 Y242

White X240 Y165 X240 Y172 White X440 Y235 X440 Y242
