EXAMPLE MANUAL 55

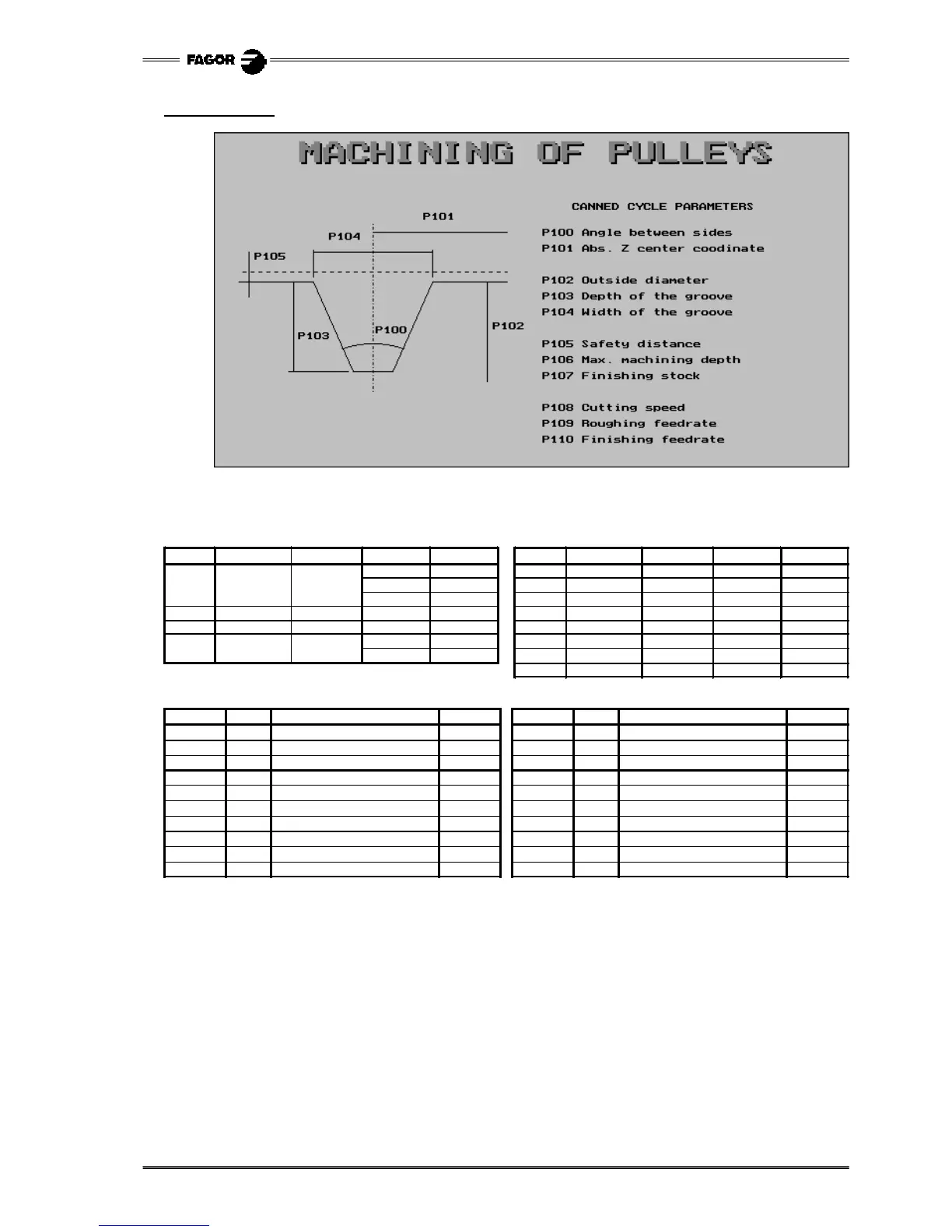

Editing page 50.
Access the screen customizing mode and select: [Utilities] [Editor] [Page] 50 [Enter]
Select background color: Navy blue.
Edit the following graphic elements:
Edit the following texts:
Element Main color Line type 1st corner 2nd corner Element Main color Line type 1st corner 2nd corner
Polyline Light green Thick solid
X25 Y150 X100 Y150 Line White Solid X160 Y100 X295 Y100
X140 Y240 X180 Y240 Line White Solid X275 Y150 X275 Y250
X220 Y150 X295 Y150 Line White Solid X75 Y240 X135 Y240
Line White Dashed X25 Y140 X295 Y140 Line White Solid X80 Y150 X80 Y240
Line White Dot-dashed X160 Y90 X160 Y260 Line White Solid X100 Y145 X100 Y115
Arc White Solid
X130 Y217.5 X190 Y217.5 Line White Solid X220 Y145 X220 Y115
Move to... X160 Y210 Line White Solid X100 Y120 X220 Y120
Line White Solid X35 Y165 X35 Y120
Main color Size Text Position Main color Size Text Position
White Large MACHINING OF PULLEYS X87 Y10 Light blue Small P101 Abs. Z center coordinate X330 Y112
Red Large MACHINING OF PULLEYS X85 Y8 Light blue Small P102 Outside diameter X330 Y144
White Small P100 X162 Y194 Light blue Small P103 Depth of the groove X330 Y160
White Small P101 X210 Y80 Light blue Small P104 Width of the groove X330 Y176
White Small P102 X280 Y190 Light blue Small P105 Safety distance X330 Y208
White Small P103 X84 Y200 Light blue Small P106 Max. machining deep X330 Y224
White Small P104 X115 Y100 Light blue Small P107 Finishing stock X330 Y240
White Small P105 X40 Y120 Light blue Small P108 Cutting speed X330 Y272
White Small CANNED CYCLE PARAMETERS X360 Y96 Light blue Small P109 Roughing feedrate X330 Y288
Light blue Small P100 Angle between sides X330 Y96 Light blue Small P110 Finishing feedrate X330 Y304
