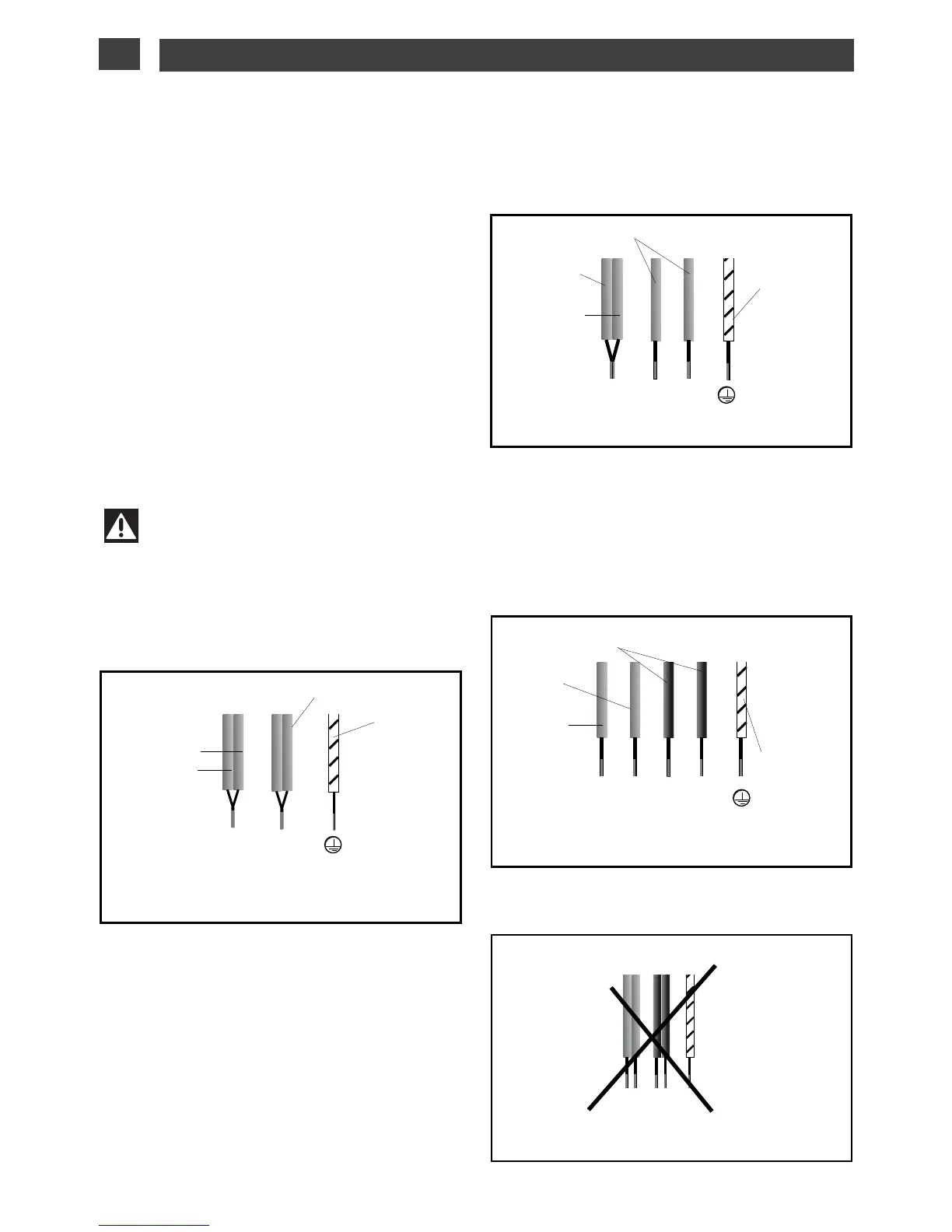

/ INSTALLING YOUR APPLIANCE
Separate the 2 phase wires (L1 and L2) before
connection.
NNeeuuttrraall EEaarrtthh LLiivvee
NN
LL
Green/yellow
Blue
Black-grey
Brown
NNeeuuttrraall EEaarrtthhLLiivvee
NN
LL11
LL22
Blue
Green/yellow
Black-grey
Brown
• Hook-up of 220-240V
~
Warning
If the cable is damaged it must be
replaced by the manufacturer, its after-
sales service or a person with a similar
qualification to prevent danger.
For a 400 V 2N triphase connection, if your
hob malfunctions, check that the neutral
conductor is properly connected.
These hobs must be connected to the mains
using a socket in compliance with publication
IEC 60083 or an all-pole circuit-breaker
device in compliance with the installation
rules in force.
Your appliance should be positioned so that
the mains switch is accessible.
When power is first supplied to your hob, or
after an extended power cut, an indicator light
will appear on the control panel. Wait for 30
seconds approximately until this information
disappears before using your hob (This display
is normal and it is intended, if applicable, for
your after-sales service. In all cases, the user
of the hob should disregard it).
CONNECTION
••
• Hook-up of 400V 2N
~
-
16A
32A
Separate the wires before connection.
NNeeuuttrraall EEaarrtthhLLiivvee
NN11
LL11
LL22
Blue
Green/yellow
Black-grey
Brown
• Hook-up of 2x230V 2L+2N
~
-
16A
NN22
• Hook-up of 400V 3
~
-
16A
