Falcon D261M User Manual

17
33
28
29
31
24
46
7
1
53
18
30
21
28
29
32
5
30
52
13
15
52
12
43
For F (UL)
10

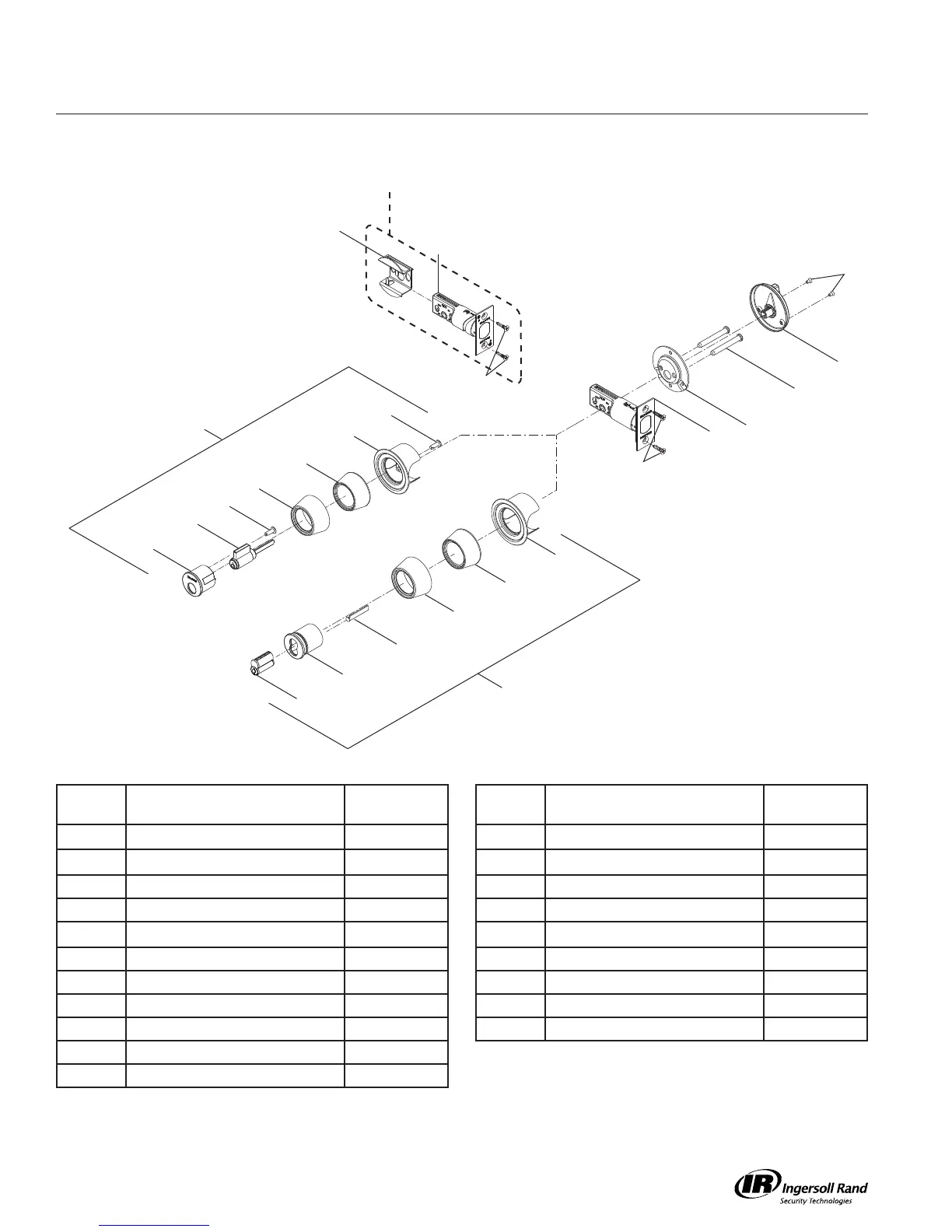

D100/200 Series Service Manual
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assembly SFIC 29 Insert Ring B520-541
5 Outside Housing Assy (P only) Q500-077 30 Cylinder Retaining Screw (2) B300-108
7 Mounting Plate B600-018 31 Adapter Shield B520-650
12 Fire-Rated Bolt (F only) * 32 Anti-Pry Shield B520-649
13 Regular Bolt Q330-253 33 Driver Bar B202-957
15 SFIC Cylinder C607 43 Fire Cup (F only) *
17 Outside Cylinder Housing Assy B610-204 46 Screw, Mounting (2) B600-100
18 Cylinder Housing Assy Q500-009 52 Screw, Deadbolt (2) C603-897
21 5 Pin Cylinder Assy Q500-067 53 Screw, Trim (2) B600-066
24 Thumbturn Assy, Classroom B302-045
28 Outside Rose 36-086
D211G (SFIC)
D211P
Classroom Function
Assemblies
* Not for sale as individual parts.
