Falcon D261M User Manual

17
35
28
29
31
27
29
28
35
15
41
49
39
1
52
13
15
52
12
43
For F (UL)
12

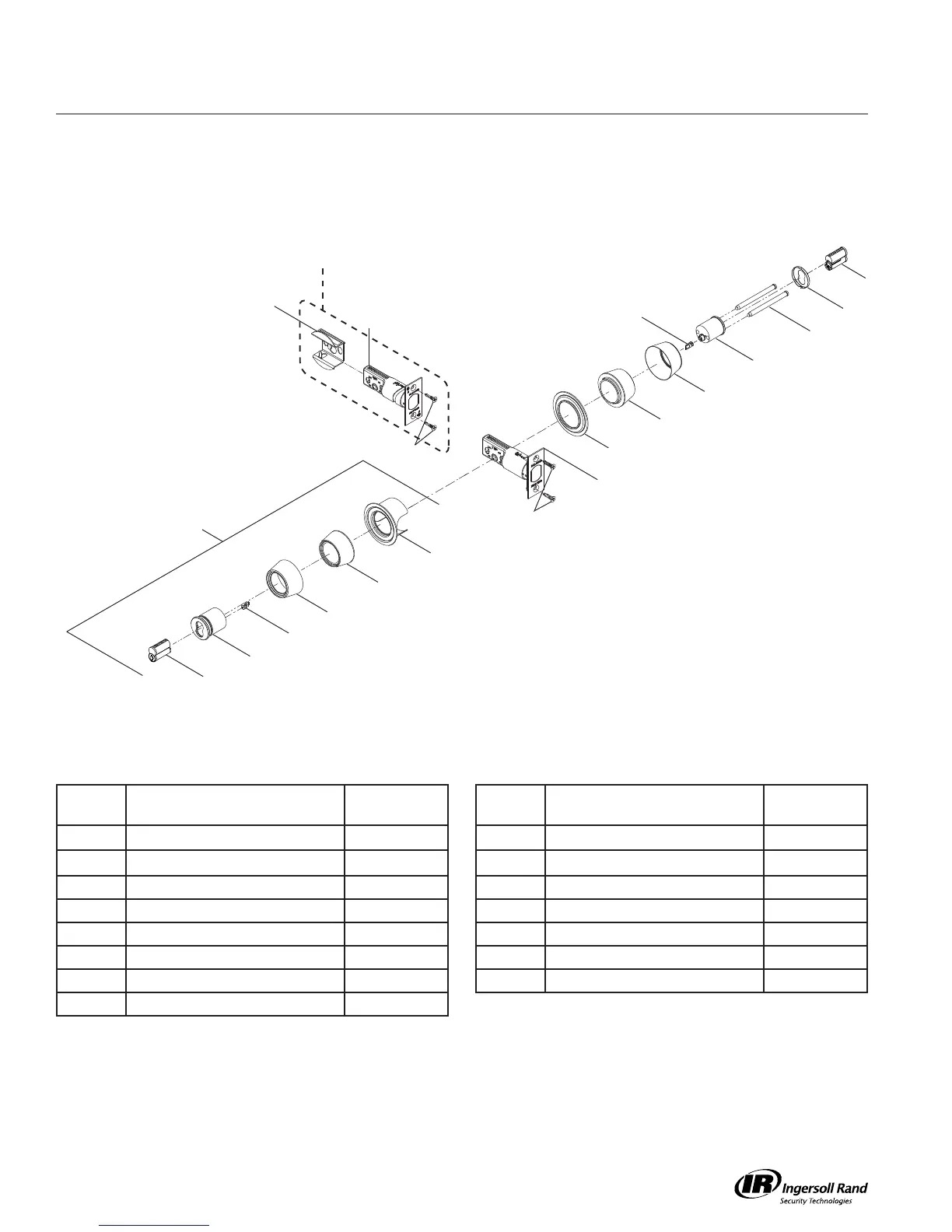

D100/200 Series Service Manual
Call Out
Number Description Part Number
Call Out
Number Description Part Number
1 Outside Housing Assy SFIC 31 Adapter Shield B520-650
12 Fire-Rated Bolt (F only) * 35 Driver Bar (2) B202-580
13 Regular Bolt Q330-253 39 Snap On Face Plate, Inside B610-014
15 SFIC Cylinder (2) C607 41 Inside Cylinder Housing B610-281
17 Outside Cylinder Housing Assy B610-204 43 Fire Cup (F only) *
27 Ring, 2-1/8” Bore 38-031 49 Screw, Mounting (2) B600-053
28 Outside Rose 36-086 52 Screw, Deadbolt (2) C603-897
29 Insert Ring B520-541
D231G
Double Cylinder
Assemblies
* Not for sale as individual parts.

Falcon D261M Specifications

General

Brand	Falcon
Model	D261M
Category	Door locks
Language	English
